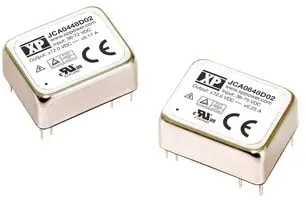

JCA04-06 Series

Manufacturer: XP Power

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC, 4W, DUAL OUTPUT

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Power (Watts)	Voltage - Output 2	Features	Voltage - Input (Min) [Min]	Type	Voltage - Output 1	Mounting Type	Current - Output (Max)	Package / Case	Number of Outputs	Voltage - Isolation	Applications	Voltage - Input (Max) [Max]	Efficiency	Current - Output (Max) [Max]	Current - Output (Max)
XP Power JCA0412D01	25.4 mm	10 mm	0.39 "	0.8 "	20.3 mm	1 in	-40 C	100 °C	62368-1	4 W	-5 V	OCP OVP SCP UVLO	9 V	Isolated Module	5 V	Through Hole	400 mA	24-DIP Module 8 Leads	2	1.5 kV	ITE (Commercial)	18 V
XP Power JCA0648S12	25.4 mm	10 mm	0.39 "	0.8 "	20.3 mm	1 in	-40 C	100 °C	62368-1	6 W		OCP OVP SCP UVLO	36 V	Isolated Module	12 V	Through Hole		24-DIP Module 7 Leads	1	1.5 kV	ITE (Commercial)	75 V	84 %	500 mA
XP Power JCA0405D02	25.4 mm	10 mm	0.39 "	0.8 "	20.3 mm	1 in	-40 C	100 °C	62368-1	4 W	-12 V	OCP OVP SCP UVLO	4.5 V	Isolated Module	12 V	Through Hole	170 mA	24-DIP Module 8 Leads	2	1.5 kV	ITE (Commercial)	9 V	83 %		170 mA
XP Power JCA0448D01	25.4 mm	10 mm	0.39 "	0.8 "	20.3 mm	1 in	-40 C	100 °C	62368-1	4 W	-5 V	OCP OVP SCP UVLO	36 V	Isolated Module	5 V	Through Hole	400 mA	24-DIP Module 8 Leads	2	1.5 kV	ITE (Commercial)	75 V	80 %
XP Power JCA0612S15	25.4 mm	10 mm	0.39 "	0.8 "	20.3 mm	1 in	-40 C	100 °C	62368-1	6 W		OCP OVP SCP UVLO	9 V	Isolated Module	15 V	Through Hole		24-DIP Module 7 Leads	1	1.5 kV	ITE (Commercial)	18 V	85 %	400 mA
XP Power JCA0612S05	25.4 mm	10 mm	0.39 "	0.8 "	20.3 mm	1 in	-40 C	100 °C	62368-1	6 W		OCP OVP SCP UVLO	9 V	Isolated Module	5 V	Through Hole		24-DIP Module 7 Leads	1	1.5 kV	ITE (Commercial)	18 V		1 A
