XT48 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE DPDT 8A 24V
| Part | Coil Resistance | Coil Current | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Coil Voltage | Features | Contact Rating (Current) | Must Operate Voltage | Approval Agency | Mounting Type | Contact Material | Termination Style | Switching Voltage [Max] | Relay Type | Must Release Voltage | Coil Type | Operate Time | Load - Max Switching | Coil Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

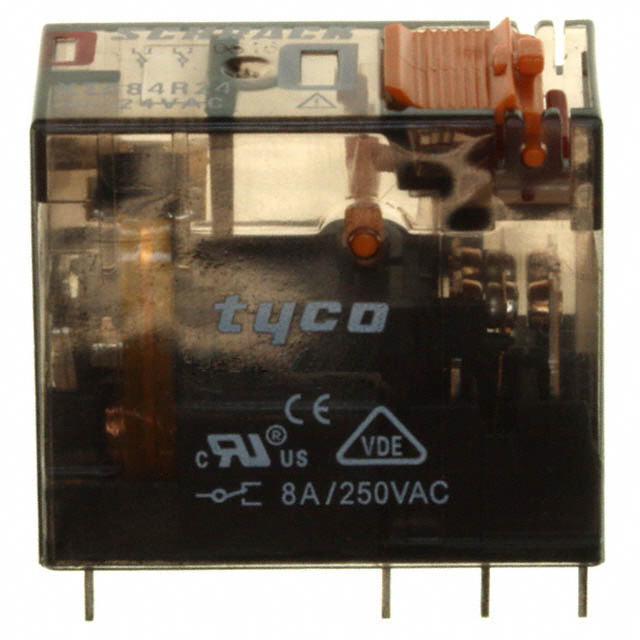

 TE Connectivity AMP Connectors | 350 Ohms | 16.7 mA | 6 ms | 70 °C | -40 C | DPDT (2 Form C) | 24 VAC | Lighted Indicator | 8 A | 18 VAC | cURus VDE | Socketable | Silver Nickel (AgNi) | Plug In | 400 VAC | General Purpose | 3.6 VAC | Non Latching | 9 ms | 3200 VA | |
 TE Connectivity AMP Connectors | 8.1 kOhms | 16.7 mA | 6 ms | 70 °C | -40 C | DPDT (2 Form C) | 115 VAC | Lighted Indicator | 8 A | 86.3 VAC | cURus VDE | Socketable | Silver Nickel (AgNi) | Plug In | 400 VAC | General Purpose | 17.3 VAC | Non Latching | 9 ms | 3200 VA | |
 TE Connectivity AMP Connectors | 1440 Ohms | 16.7 mA | 6 ms | 70 °C | -40 C | DPDT (2 Form C) | 24 VDC | Diode Lighted Indicator | 8 A | 16.8 VDC | cURus VDE | Socketable | Silver Nickel (AgNi) | Plug In | 400 VAC | General Purpose | 2.4 VDC | Non Latching | 9 ms | 3200 VA | |

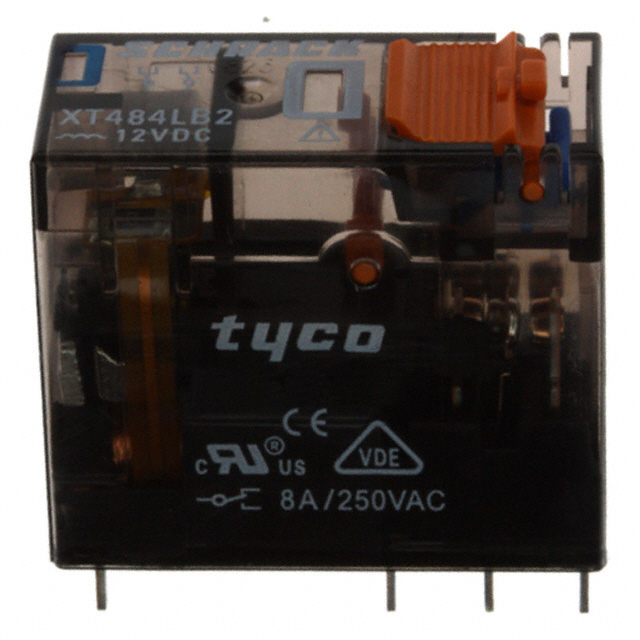

 TE Connectivity AMP Connectors | 360 Ohms | 16.7 mA | 6 ms | 70 °C | -40 C | DPDT (2 Form C) | 12 VDC | Diode Lighted Indicator | 8 A | 8.4 VDC | cURus VDE | Socketable | Silver Nickel (AgNi) | Plug In | 400 VAC | General Purpose | 1.2 VDC | Non Latching | 9 ms | 3200 VA | |
 TE Connectivity AMP Connectors | 360 Ohms | 16.7 mA | 5 ms | 70 °C | -40 C | DPDT (2 Form C) | 12 VDC | 8 A | 8.4 VDC | cURus VDE | Socketable | Silver Nickel (AgNi) | Plug In | 400 VAC | General Purpose | 1.2 VDC | Non Latching | 10 ms | 3200 VA | Class F |
