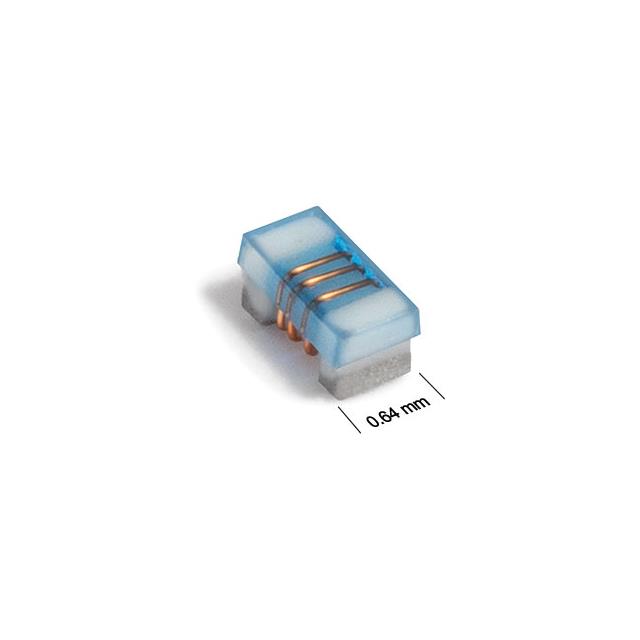

0402CS Series

Manufacturer: Coilcraft

Catalog

RF INDUCTORS - SMD 1005 4.3NH UNSHLD 5% 700MA 91MOHMS AECQ2

Part	Shielding	Type	Q @ Freq [custom]	Q @ Freq [custom]	Supplier Device Package	Current Rating (Amps)	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Package / Case	Frequency - Self Resonant	Inductance	Material - Core	Tolerance	DC Resistance (DCR)	Q @ Freq	Q @ Freq [custom]
Coilcraft 0402CS-4N3XJRW	Unshielded	Wirewound	900 MHz	47	0402	700 mA	91 mOhm	125 °C	-40 C	0.026 in	0.66 mm	250 MHz	AEC-Q200	1.19 mm	0.025 in	0.047 in	0.64 mm	Surface Mount	0402 (1005 Metric)	6 GHz	4.3 nH	Ceramic	5 %
Coilcraft 0402CS-9N5XJRW	Unshielded	Wirewound			0402	480 mA		125 °C	-40 C	0.026 in	0.66 mm	250 MHz	AEC-Q200	1.19 mm	0.025 in	0.047 in	0.64 mm	Surface Mount	0402 (1005 Metric)	4 GHz	9.5 nH	Ceramic	5 %	200 mOhm	54 900 MHz
Coilcraft 0402CS-82NXGRW	Unshielded	Wirewound			0402	50 mA	1.55 Ohm	125 °C	-40 C	0.026 in	0.66 mm	250 MHz	AEC-Q200	1.19 mm	0.025 in	0.047 in	0.64 mm	Surface Mount	0402 (1005 Metric)	1.26 GHz	82 nH	Ceramic	2 %
Coilcraft 0402CS-36NXJRW	Unshielded	Wirewound			0402	320 mA	440 mOhm	125 °C	-40 C	0.026 in	0.66 mm	250 MHz	AEC-Q200	1.19 mm	0.025 in	0.047 in	0.64 mm	Surface Mount	0402 (1005 Metric)	2.32 GHz	36 nH	Ceramic	5 %		44 900 MHz
Coilcraft 0402CS-51NXJRW	Unshielded	Wirewound		40	0402	100 mA	820 mOhm	125 °C	-40 C	0.026 in	0.66 mm	250 MHz	AEC-Q200	1.19 mm	0.025 in	0.047 in	0.64 mm	Surface Mount	0402 (1005 Metric)	1.75 GHz	51 nH	Ceramic	5 %			900 MHz
