292132 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 10POS 2MM

Part	Contact Material	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Contact Shape	Insulation Height	Insulation Height	Style	Number of Rows	Insulation Material	Shrouding	Number of Positions	Contact Finish - Post	Fastening Type	Voltage Rating	Mounting Type	Current Rating (Amps)	Contact Length - Post	Contact Length - Post [x]	Termination	Connector Type	Number of Positions Loaded	Contact Type	Insulation Color	Applications
TE Connectivity Raychem Cable Protection 3-292132-0	Brass	4.2 mm	0.165 in	9.09 mm	0.358 in	0.079 in	2 mm	UL94 V-0	Circular	6.8 mm	0.268 in	Board to Cable/Wire	1	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	10	Tin	Detent Lock	125 VAC	Through Hole	Varies by Wire Gauge	3.2 mm	0.126 in	Kinked Pin Solder	Header	All	Male Pin	Blue	General Purpose

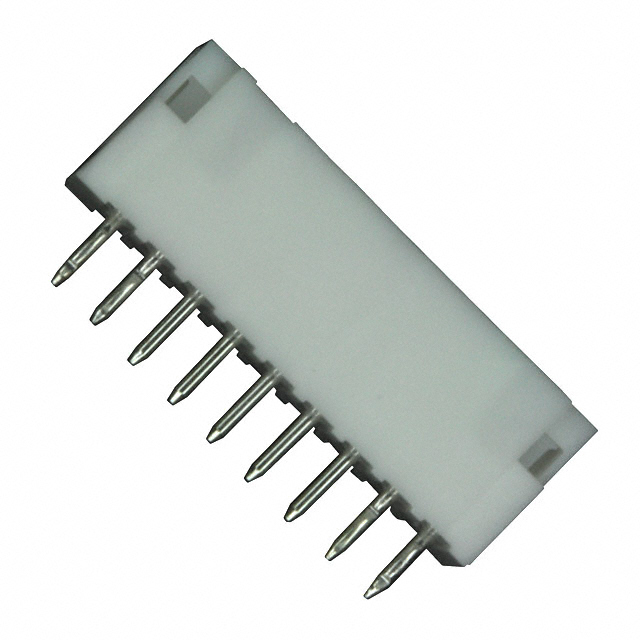

TE Connectivity Raychem Cable Protection 292132-9	Brass	4.2 mm	0.165 in	9.09 mm	0.358 in	0.079 in	2 mm	UL94 V-0	Circular	6.8 mm	0.268 in	Board to Cable/Wire	1	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	9	Tin	Detent Lock	125 VAC	Through Hole	Varies by Wire Gauge	3.2 mm	0.126 in	Kinked Pin Solder	Header	All	Male Pin	Natural	General Purpose
TE Connectivity Raychem Cable Protection 292132-3	Brass	4.2 mm	0.165 in	9.09 mm	0.358 in	0.079 in	2 mm	UL94 V-0	Circular	6.8 mm	0.268 in	Board to Cable/Wire	1	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall		Tin	Detent Lock	125 VAC	Through Hole	Varies by Wire Gauge	3.2 mm	0.126 in	Kinked Pin Solder	Header	All	Male Pin	Natural	General Purpose
TE Connectivity Raychem Cable Protection 4-292132-6	Brass	4.2 mm	0.165 in	9.09 mm	0.358 in	0.079 in	2 mm	UL94 V-0	Circular	6.8 mm	0.268 in	Board to Cable/Wire	1	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	6	Tin	Detent Lock	125 VAC	Through Hole	Varies by Wire Gauge	3.2 mm	0.126 in	Kinked Pin Solder	Header	All	Male Pin	Yellow	General Purpose
TE Connectivity Raychem Cable Protection 7-292132-0	Brass	4.2 mm	0.165 in	9.09 mm	0.358 in	0.079 in	2 mm	UL94 V-0	Circular	6.8 mm	0.268 in	Board to Cable/Wire	1	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	10	Tin	Detent Lock	125 VAC	Through Hole	Varies by Wire Gauge	3.2 mm	0.126 in	Kinked Pin Solder	Header	All	Male Pin	Black	General Purpose

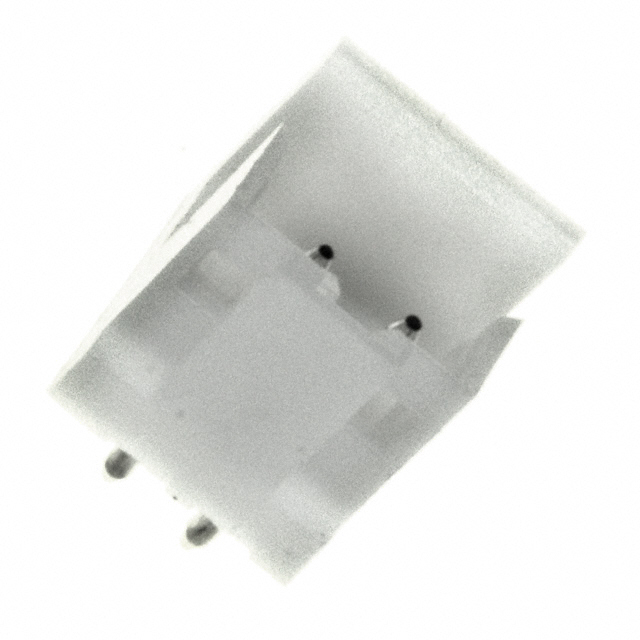

TE Connectivity Raychem Cable Protection 292132-2	Brass	4.2 mm	0.165 in	9.09 mm	0.358 in	0.079 in	2 mm	UL94 V-0	Circular	6.8 mm	0.268 in	Board to Cable/Wire	1	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	2	Tin	Detent Lock	125 VAC	Through Hole	Varies by Wire Gauge	3.2 mm	0.126 in	Kinked Pin Solder	Header	All	Male Pin	Natural	General Purpose

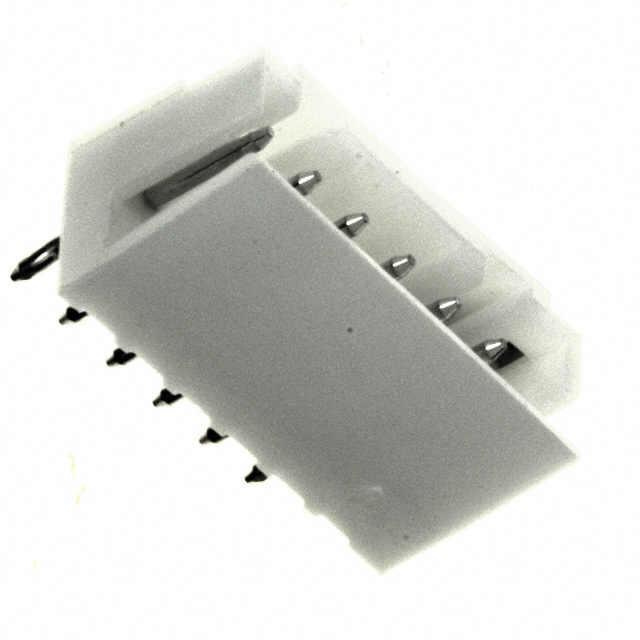

TE Connectivity Raychem Cable Protection 292132-6	Brass	4.2 mm	0.165 in	9.09 mm	0.358 in	0.079 in	2 mm	UL94 V-0	Circular	6.8 mm	0.268 in	Board to Cable/Wire	1	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	6	Tin	Detent Lock	125 VAC	Through Hole	Varies by Wire Gauge	3.2 mm	0.126 in	Kinked Pin Solder	Header	All	Male Pin	Natural	General Purpose
TE Connectivity Raychem Cable Protection 6-292132-5	Brass	4.2 mm	0.165 in	9.09 mm	0.358 in	0.079 in	2 mm	UL94 V-0	Circular	6.8 mm	0.268 in	Board to Cable/Wire	1	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall		Tin	Detent Lock	125 VAC	Through Hole	Varies by Wire Gauge	3.2 mm	0.126 in	Kinked Pin Solder	Header	All	Male Pin	Black	General Purpose
TE Connectivity Raychem Cable Protection 3-292132-1	Brass	4.2 mm	0.165 in	9.09 mm	0.358 in	0.079 in	2 mm	UL94 V-0	Circular	6.8 mm	0.268 in	Board to Cable/Wire	1	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	11	Tin	Detent Lock	125 VAC	Through Hole	Varies by Wire Gauge	3.2 mm	0.126 in	Kinked Pin Solder	Header	All	Male Pin	Blue	General Purpose
TE Connectivity Raychem Cable Protection 4-292132-5	Brass	4.2 mm	0.165 in	9.09 mm	0.358 in	0.079 in	2 mm	UL94 V-0	Circular	6.8 mm	0.268 in	Board to Cable/Wire	1	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall		Tin	Detent Lock	125 VAC	Through Hole	Varies by Wire Gauge	3.2 mm	0.126 in	Kinked Pin Solder	Header	All	Male Pin	Yellow	General Purpose
