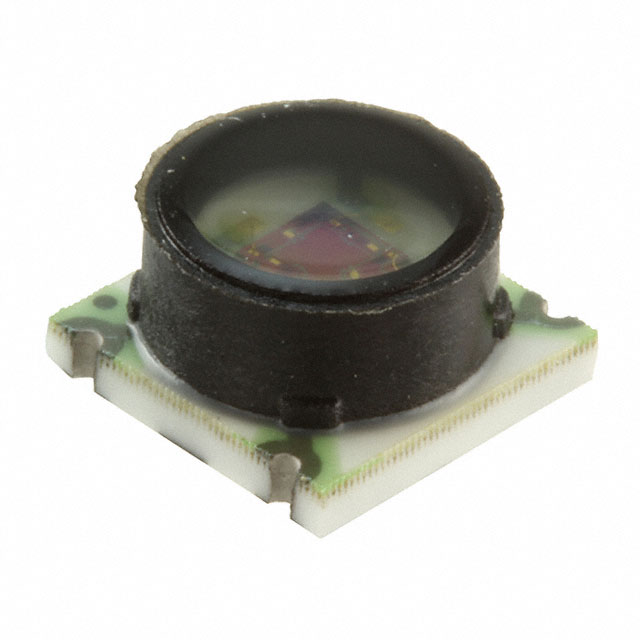

TBFLPNS Series

Catalog

BOARD MOUNT PRESSURE SENSORS TBF 2.5 BAR SENSOR WITH NEW GEL RING

Part	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Output Type	Pressure Type	Termination Style	Accuracy	Supplier Device Package	Operating Pressure	Operating Pressure	Maximum Pressure [Max]	Maximum Pressure	Applications	Output	Output	Features	Package / Case	Maximum Pressure
Honeywell Sensing and Productivity Solutions TBFLPNS2.5BGUCV
Honeywell Sensing and Productivity Solutions TBFLPNS1.6BGUCV
Honeywell Sensing and Productivity Solutions TBFLPNS100PGUCV	No Port	50 °C	0 °C	12 V	1.5 V	Surface Mount	Analog Voltage	Vented Gauge	SMD (SMT) Tab	0.5 %	6-SMD	689.48 kPa	100 PSI	245 PSI	1689.22 kPa	Board Mount	30.5 mV	5 V	Temperature Compensated	6-SMD Module

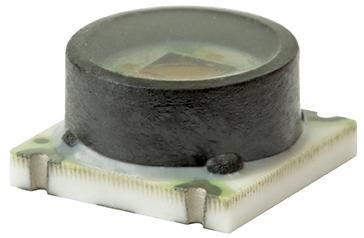

Honeywell Sensing and Productivity Solutions TBFLPNS060PGUCV	No Port	50 °C	0 °C	12 V	1.5 V	Surface Mount	Analog Voltage	Vented Gauge	SMD (SMT) Tab	0.5 %	6-SMD	413.69 kPa	60 PSI		999.74 kPa	Board Mount	30 mV	5 V	Temperature Compensated	6-SMD Module	145 PSI
Honeywell Sensing and Productivity Solutions TBFLPNS100KGUCV
Honeywell Sensing and Productivity Solutions TBFLPNS001BGUCV	No Port	50 °C	0 °C	12 V	1.5 V	Surface Mount	Analog Voltage	Vented Gauge	SMD (SMT) Tab	0.5 %	6-SMD	103.42 kPa	15 PSI	58.02 PSI	400 kPa	Board Mount	25.5 mV		Temperature Compensated	6-SMD Module
