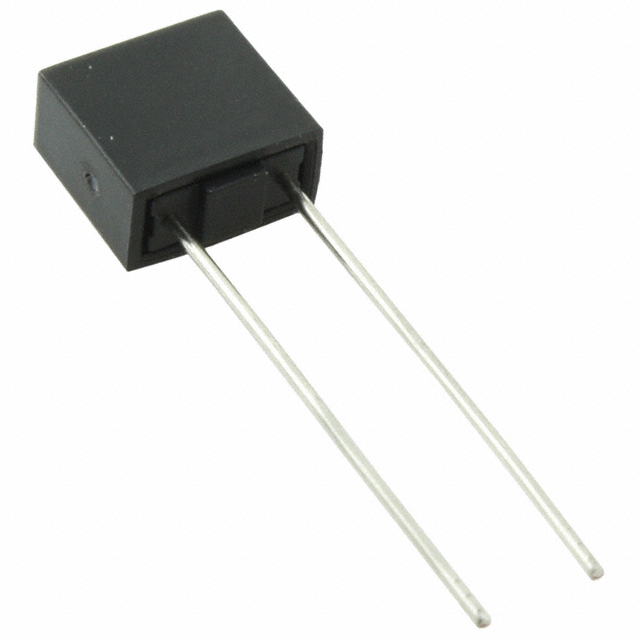

SS-5H Series
Fuses with Leads - Through Hole 300V 1.6A SS-5H RADIAL TD FUSE
Manufacturer: Eaton - Electronics Division
Catalog
Fuses with Leads - Through Hole 300V 1.6A SS-5H RADIAL TD FUSE
Beta
⌘K
Fuses with Leads - Through Hole 300V 1.6A SS-5H RADIAL TD FUSE
Fuses with Leads - Through Hole 300V 1.6A SS-5H RADIAL TD FUSE
Fuses with Leads - Through Hole 300V 1.6A SS-5H RADIAL TD FUSE
| Part | DC Cold Resistance | Melting I²t | Breaking Capacity @ Rated Voltage | Response Time | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Mounting Type | Current Rating (Amps) | Fuse Type | Approval Agency | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 43 Ohms | 23 I²t | 100 A | Slow Blow | 125 °C | -40 C | 300 V | Through Hole | 1.6 A | Board Mount (Cartridge Style Excluded) | CQC cURus KC PSE TUV VDE | Box Radial | 0.335 " | 0.169 " | 0.329 in | 4.3 mm | 8.5 mm | 8.35 mm |
