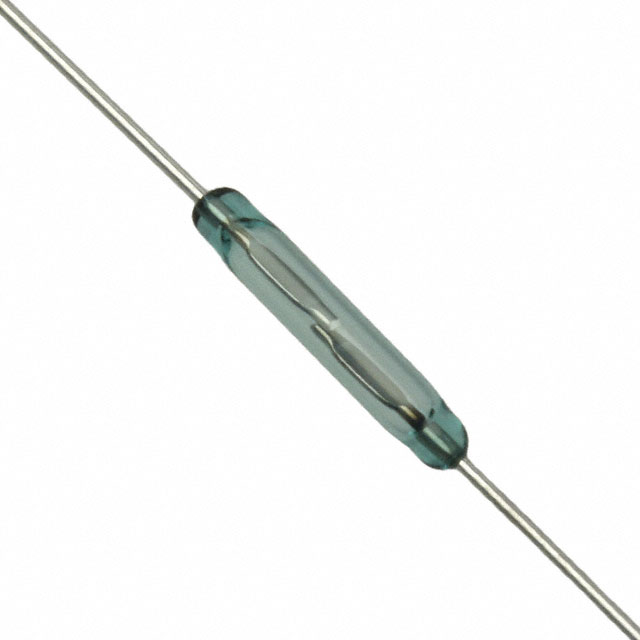

MDSR-10 Series
Manufacturer: LITTELFUSE
Beta
⌘K
MAGNETIC / REED SWITCHES NO 30-35AT
| Part | Mounting Type | Voltage - Switching DC | Voltage - Switching AC [custom] | Termination Style | Circuit | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Type | Current - Switching | Operate Range [Min] | Operate Range [Max] | Capacitance | Power - Rated | Current - Carry | Operate Time | Size - Body [diameter] | Size - Body [diameter] | Size - Body [x] | Size - Body [x] | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Through Hole | 200 V | 140 V | Axial | SPST-NO | 0.1 ms | 125 °C | -40 C | Glass Body Reed | 350 mA 500 mA | 30 | 35 AT | 0.2 pF | 10 W | 1 A | 500 µs | 0.071 " | 1.8 mm | 0.4 " | 10.16 mm | 40.39 mm | 1.59 in |
