9G0612 Series

Catalog

DC FAN AXIAL BALL BEARING 12V 10.2V TO 13.8V 42.7CFM/12.7CFM 49DB/18DB 60 X 60 X 25MM HIGH AIR FLOW/HIGH STATIC PRESSURE

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Material - Blade	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Voltage - Rated	Power (Watts)	Width [y]	Approval Agency	RPM	Weight	Weight	Termination	Bearing Type	Features	Fan Type
Sanyo Denki America Inc. 9G0612P4H0011	0.5 A	40000 Hrs	Plastic	10.2 VDC	13.8 VDC	1.2 m³/min	42.7 CFM	Plastic	60 mm	60 mm	0.9 in H2O	224.2 Pa	-20 ░C	70 °C	49 dB	12 VDC	6 W	25 mm	cURus TUV	9500 RPM	0.199 lb	90.26 g	4 Wire Leads	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial
Sanyo Denki America Inc. 9G0612S1D01	1.36 A	40000 Hrs	Plastic	7 V	13.8 VDC	1.68 m³/min	60 CFM	Plastic	60 mm	60 mm	1.486 in H2O	370.1 Pa	-20 ░C	70 °C	56 dB	12 VDC	16.3 W	38 mm	CSA TUV UL	10800 RPM	0.243 lb	110.22 g	3 Wire Leads	Ball	Locked Rotor Sensor	Tubeaxial
Sanyo Denki America Inc. 9G0612H4002	0.5 A	40000 Hrs	Plastic	10.2 VDC	13.8 VDC	1.2 m³/min	42.7 CFM	Plastic	60 mm	60 mm	0.9 in H2O	224.2 Pa	-20 ░C	70 °C	49 dB	12 VDC	6 W	25 mm	cURus TUV	9500 RPM	0.199 lb	90.26 g	2 Wire Leads	Ball		Tubeaxial
Sanyo Denki America Inc. 9G0612P1G011	1.54 A	40000 Hrs	Plastic	7 V	13.8 VDC	1.82 m³/min	65 CFM	Plastic	60 mm	60 mm	1.747 in H2O	435.2 Pa	-20 ░C	70 °C		12 VDC	18.5 W	38 mm	CSA TUV UL	11800 RPM	0.243 lb	110.22 g	4 Wire Leads	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial
Sanyo Denki America Inc. 9G0612P4S001	0.67 A	40000 Hrs	Plastic	10.2 VDC	13.8 VDC	1.38 m³/min	49.4 CFM	Plastic	60 mm	60 mm	1.2 in H2O	298.9 Pa	-20 ░C	70 °C	53 dB	12 VDC	8.04 W	25 mm	CSA TUV UL	11000 RPM	0.199 lb	90.26 g	4 Wire Leads	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial
Sanyo Denki America Inc. 9G0612S1011	1.36 A	40000 Hrs	Plastic	7 V	13.8 VDC	1.68 m³/min	60 CFM	Plastic	60 mm	60 mm	1.486 in H2O	370.1 Pa	-20 ░C	70 °C	56 dB	12 VDC	16.3 W	38 mm	CSA TUV UL	10800 RPM	0.243 lb	110.22 g	3 Wire Leads	Ball	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial
Sanyo Denki America Inc. 9G0612G1011	1.54 A	40000 Hrs	Plastic	7 V	13.8 VDC	1.82 m³/min	65 CFM	Plastic	60 mm	60 mm	1.747 in H2O	435.2 Pa	-20 ░C	70 °C	58 dB(A)	12 VDC	18.5 W	38 mm	CSA TUV UL	11800 RPM	0.243 lb	110.22 g	3 Wire Leads	Ball	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial
Sanyo Denki America Inc. 9G0612G1D011	1.54 A	40000 Hrs	Plastic	7 V	13.8 VDC	1.82 m³/min	65 CFM	Plastic	60 mm	60 mm	1.747 in H2O	435.2 Pa	-20 ░C	70 °C	58 dB(A)	12 VDC	18.5 W	38 mm	CSA TUV UL	11800 RPM	0.243 lb	110.22 g	3 Wire Leads	Ball	Locked Rotor Sensor	Tubeaxial

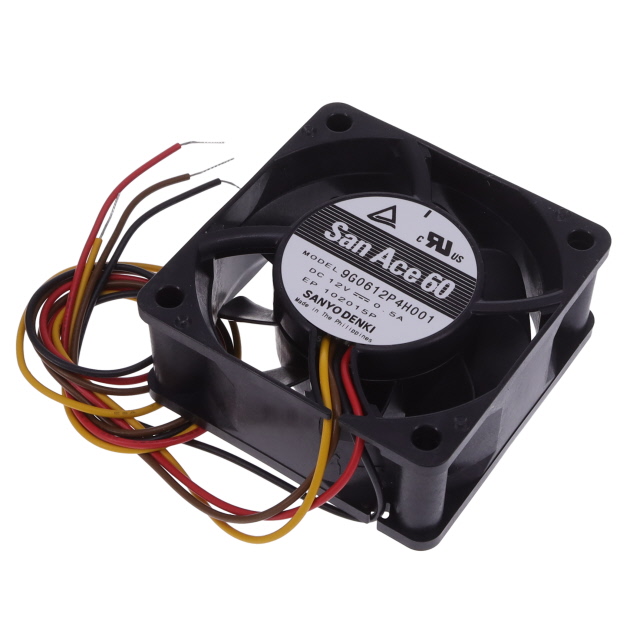

Sanyo Denki America Inc. 9G0612P4H001	0.5 A	40000 Hrs	Plastic	10.2 VDC	13.8 VDC	1.2 m³/min	42.7 CFM	Plastic	60 mm	60 mm	0.9 in H2O	224.2 Pa	-20 ░C	70 °C	49 dB	12 VDC	6 W	25 mm	cURus TUV	9500 RPM	0.199 lb	90.26 g	4 Wire Leads	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial
Sanyo Denki America Inc. 9G0612S101	1.36 A	40000 Hrs	Plastic	7 V	13.8 VDC	1.68 m³/min	60 CFM	Plastic	60 mm	60 mm	1.486 in H2O	370.1 Pa	-20 ░C	70 °C	56 dB	12 VDC	16.3 W	38 mm	CSA TUV UL	10800 RPM	0.243 lb	110.22 g	3 Wire Leads	Ball	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial
