TAP Series

Catalog

TANTALUM CAPACITORS - SOLID LEADED 50V 22UF 10% ESR=1 O HM

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Features	Lead Spacing	Lead Spacing	Type	ESR (Equivalent Series Resistance)	Package / Case	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Manufacturer Size Code	Lifetime @ Temp.	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)

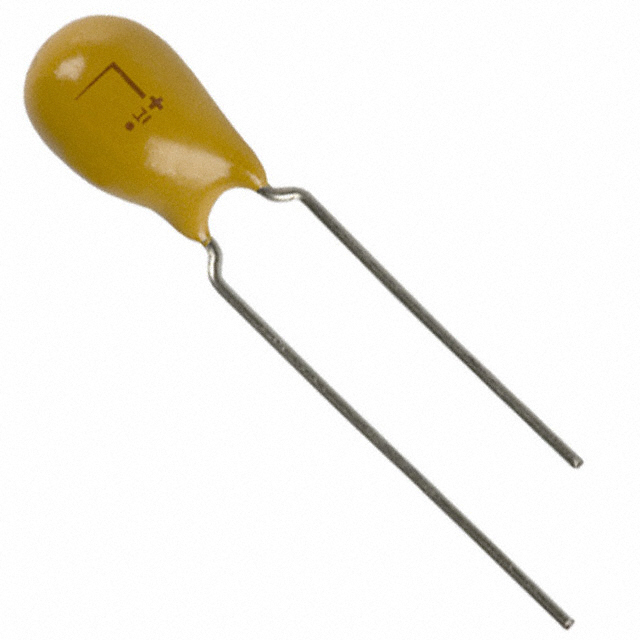

KYOCERA AVX TAP226K050CCS	-55 C	125 °C	50 VDC	General Purpose	0.197 "	5 mm	Conformal Coated	1 Ohms	Radial	22 µF	14 mm	0.551 in	9 mm	0.354 in	10 %	L	1000 Hrs	Through Hole
KYOCERA AVX TAP225K020CRW	-55 C	125 °C	20 V	General Purpose	0.197 "	5 mm	Conformal Coated	7 Ohm	Radial	2.2 µF	8.5 mm	0.335 "	4.5 mm	0.177 "	10 %	A	1000 Hrs	Through Hole
KYOCERA AVX TAP106J035CRW	-55 C	125 °C	35 V	General Purpose	0.197 "	5 mm	Conformal Coated	2 Ohms	Radial	10 µF	0.453 in		6 mm	0.236 in	5 %	F	1000 Hrs	Through Hole	11.5 mm
KYOCERA AVX TAP226M025CRW	-55 C	125 °C	25 VDC	General Purpose	0.197 "	5 mm	Conformal Coated	1.5 Ohm	Radial	22 µF		0.472 in	7 mm	0.276 in	20 %	H	1000 Hrs	Through Hole		12 mm

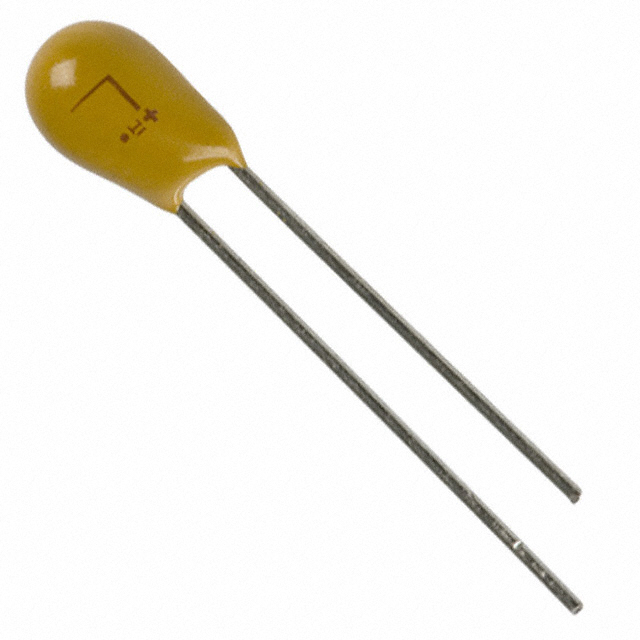

KYOCERA AVX TAP226K016SCS	-55 C	125 °C	16 V	General Purpose	0.098 in	2.5 mm	Conformal Coated	2 Ohms	Radial	22 µF	10 mm	0.394 in	6 mm	0.236 in	10 %	F	1000 Hrs	Through Hole
KYOCERA AVX TAP225M025HSB	-55 C	125 °C	25 VDC	General Purpose	0.25 in	6.35 mm	Conformal Coated	6 Ohms	Radial	2.2 µF	8.5 mm	0.335 "	4.5 mm	0.177 "	20 %	A	1000 Hrs	Through Hole

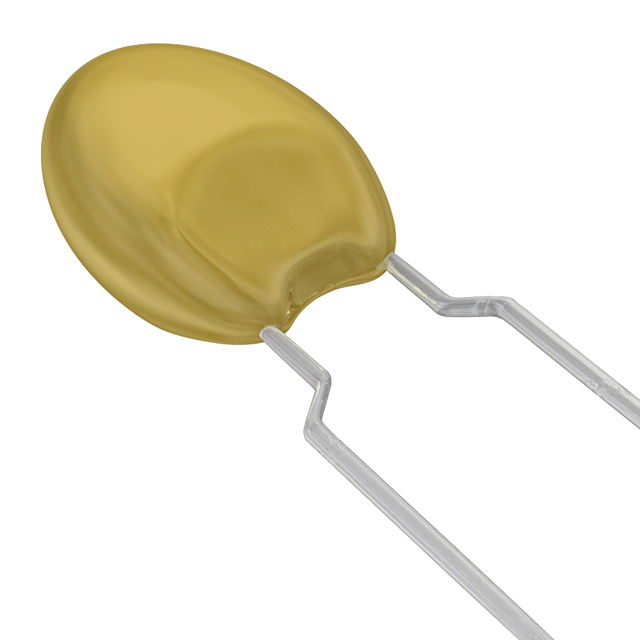

KYOCERA AVX TAP476K016BRW	-55 C	125 °C	16 V	General Purpose	0.197 "	5 mm	Conformal Coated	1.3 Ohm	Radial	47 µF	0.453 in		8 mm	0.315 in	10 %	J	1000 Hrs	Through Hole	11.5 mm
KYOCERA AVX TAP475M035CCS	-55 C	125 °C	35 V	General Purpose	0.197 "	5 mm	Conformal Coated	3 Ohm	Radial	4.7 µF	10.5 mm	0.413 "	5.5 mm	0.217 in	20 %	E	1000 Hrs	Through Hole

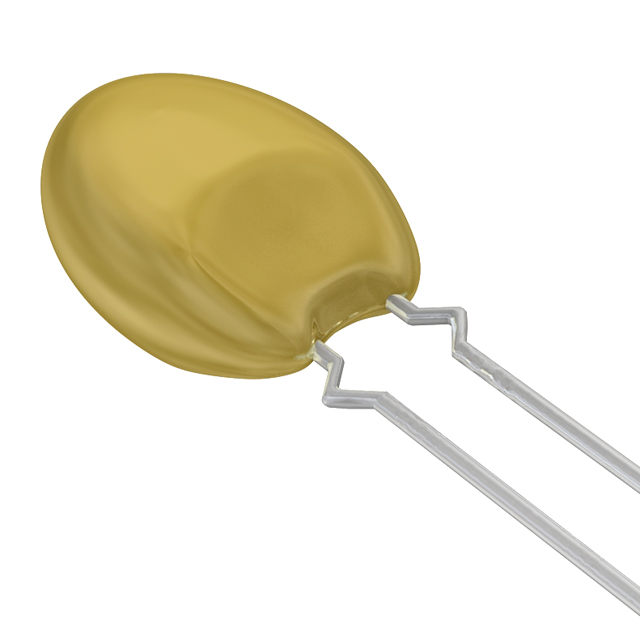

KYOCERA AVX TAP685M050GSB	-55 C	125 °C	50 VDC	General Purpose	0.125 in	3.18 mm	Conformal Coated	2 Ohms	Radial	6.8 µF		0.472 in	7 mm	0.276 in	20 %	H	1000 Hrs	Through Hole		12 mm
KYOCERA AVX TAP226M035SRW	-55 C	125 °C	35 V	General Purpose	0.098 in	2.5 mm	Conformal Coated	1.3 Ohm	Radial	22 µF	0.492 in		8.5 mm	0.335 in	20 %	K	1000 Hrs	Through Hole	12.5 mm
