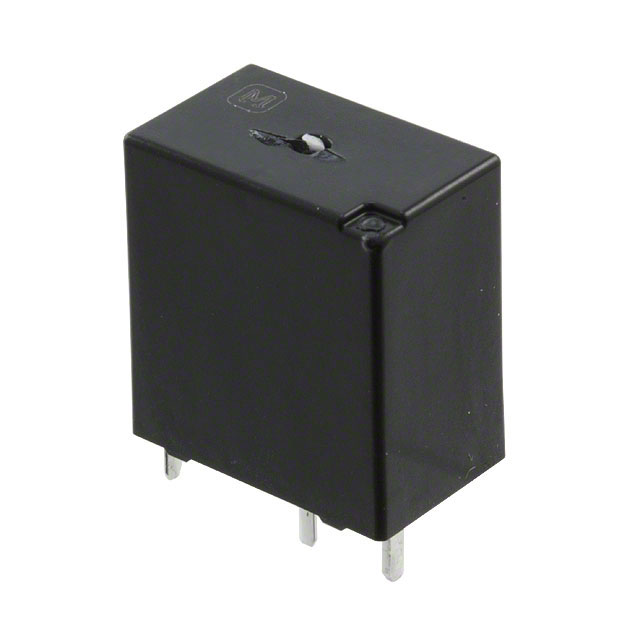

ACNH321 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
AUTOMOTIVE RELAYS SPST-NO 30A 12V PCB RELAY AUTO
| Part | Coil Power | Contact Material | Coil Resistance | Coil Current | Release Time | Contact Rating (Current) | Termination Style | Must Release Voltage | Coil Voltage | Switching Voltage | Must Operate Voltage | Coil Type | Features | Contact Form | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 450 mW | Silver Alloy Cadmium Free | 320 Ohms | 0.0375 A | 10 ms | 30 A | PC Pin | 1 VDC | 12 VDC | 14 VDC | 6.5 VDC | Non Latching | Sealed - Fully | SPST-NO (1 Form A) | Through Hole | -40 C | 110 °C | 10 ms |
