G9TB-U Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 120A 12V
| Part | Mounting Type | Switching Voltage [Max] | Load - Max Switching | Release Time | Seal Rating | Operate Time | Coil Resistance | Termination Style | Contact Form | Coil Current | Coil Type | Relay Type | Coil Voltage | Approval Agency | Contact Material | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

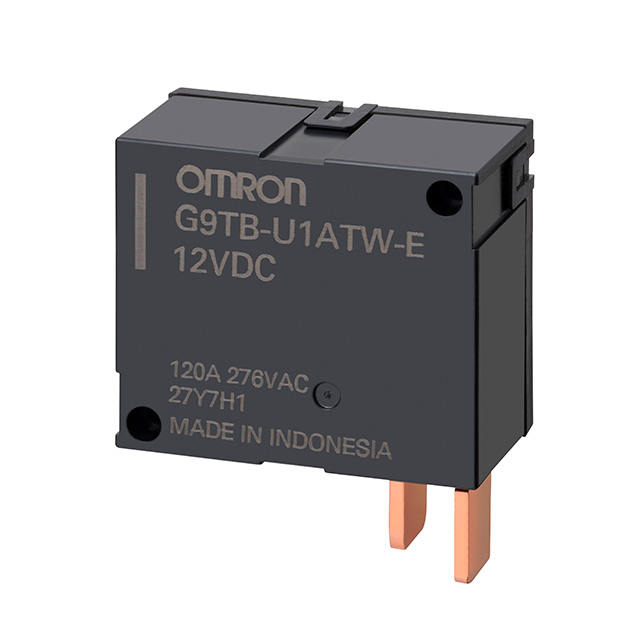

 Omron Electronics Inc-EMC Div | Free Hanging | 276 VAC | 33120 VA | 25 ms | Sealed - Flux Protection | 25 ms | 53.3 Ohms | PC Pin Weld Terminal | SPST-NO (1 Form A) | 225 mA | Latching Single Coil | General Purpose | 12 VDC | UL | Cadmium Free Silver Alloy | 120 A | 85 °C | -40 °C | 9.6 VDC | |

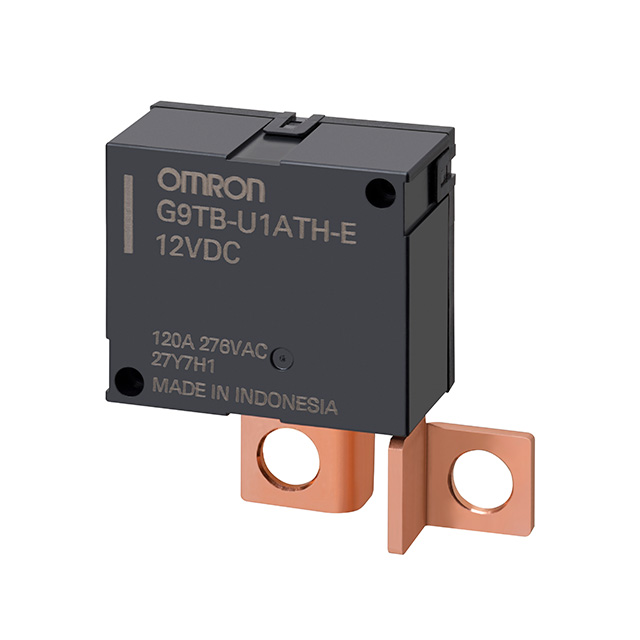

 Omron Electronics Inc-EMC Div | Free Hanging | 276 VAC | 33120 VA | 25 ms | 25 ms | 53.3 Ohms | Square Lug | SPST-NO (1 Form A) | 225 mA | Latching Single Coil | General Purpose | 12 VDC | Silver Alloy | 120 A | 85 °C | -40 °C | 9.6 VDC | UL Pending |
