T41325 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

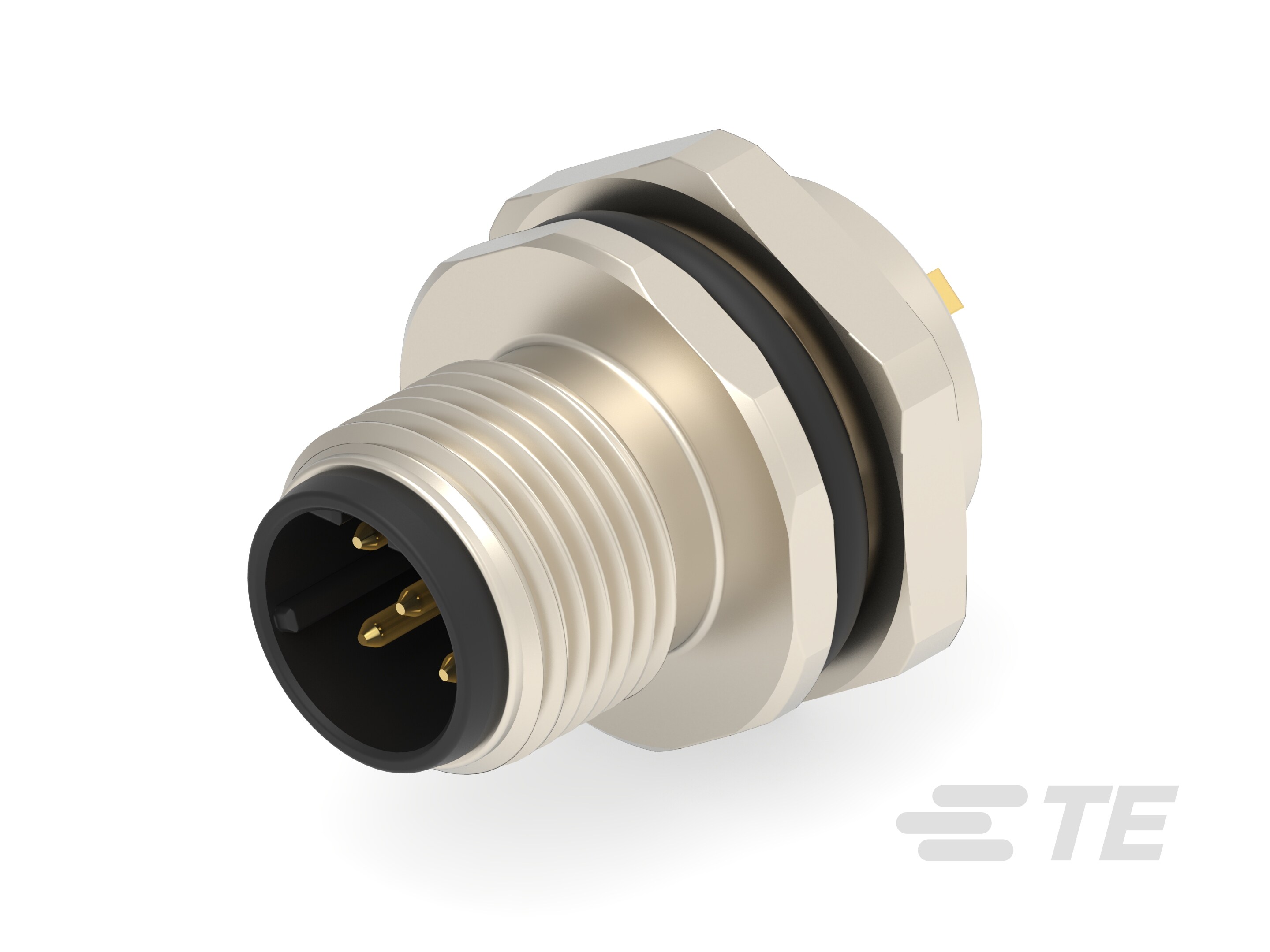

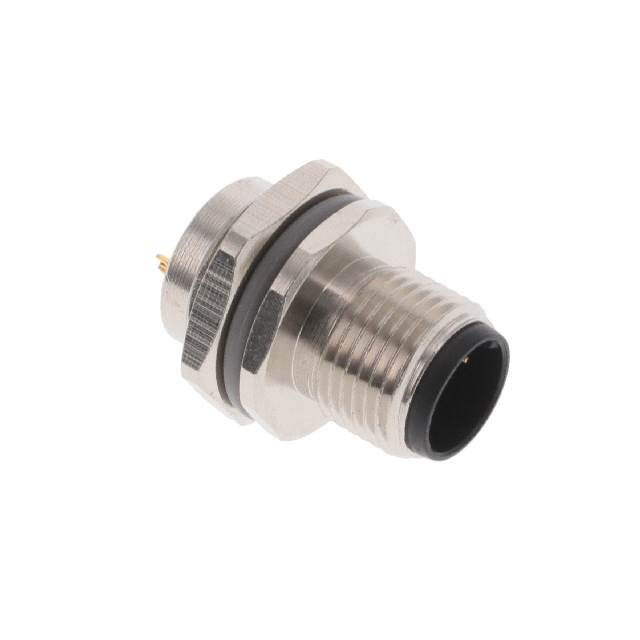

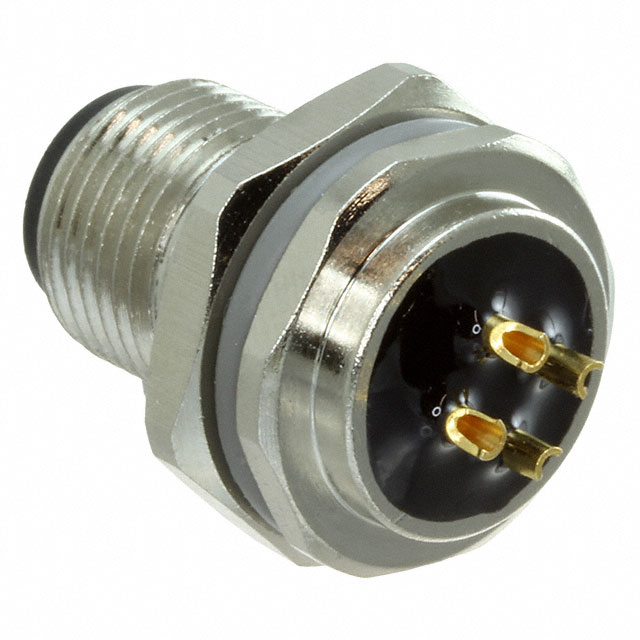

SENSOR CONNECTOR, M12, MALE, 4 POSITIONS, SOLDER PIN, STRAIGHT PANEL MOUNT
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Contact Material | Applications | Shell Size - Insert | Contact Finish - Mating | Shell Finish | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Material Flammability Rating | Orientation | Shielding | Connector Type | Mounting Feature | Mounting Type | Voltage Rating | Color | Shell Material | Ingress Protection | Number of Positions | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Industrial | M12-4 | Gold | Nickel | Metal | 85 °C | -40 C | Threaded | UL94 V-0 | D | Unshielded | Receptacle Male Pins | Bulkhead - Rear Side Nut | Panel Mount | 250 V | Silver | Copper Alloy | IP67 - Dust Tight Waterproof | 4 | 4 A |
 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Industrial | M12-5 | Gold | Nickel | Metal | 85 °C | -40 C | Threaded | UL94 V-0 | D | Unshielded | Receptacle Male Pins | Bulkhead - Rear Side Nut | Panel Mount | 60 VDC | Silver | Copper Alloy | IP67 - Dust Tight Waterproof | 5 | 4 A |
 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Industrial | M12-2 | Gold | Nickel | Metal | 85 °C | -40 C | Threaded | UL94 V-0 | D | Unshielded | Receptacle Male Pins | Bulkhead - Rear Side Nut | Panel Mount | 250 V | Silver | Copper Alloy | IP67 - Dust Tight Waterproof | 2 | 4 A |
