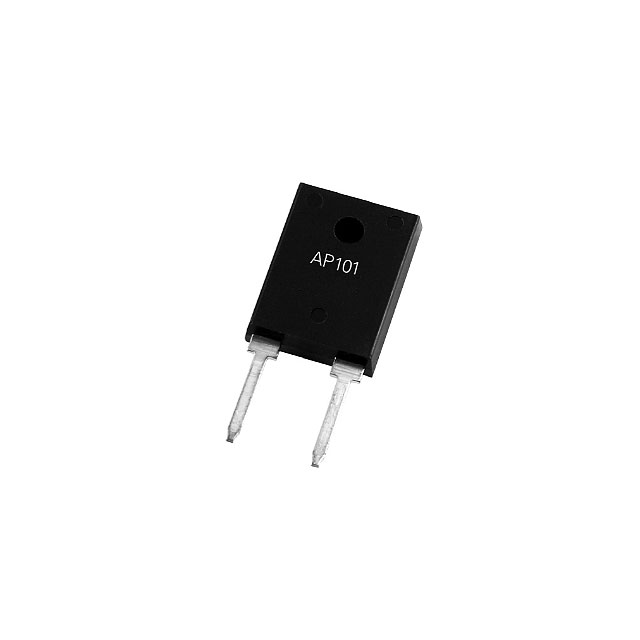

AP101 Series

Manufacturer: Ohmite

Catalog

THICK FILM RESISTORS - THROUGH HOLE 100W 8200 OHM HIGH POWER

Part	Power (Watts)	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Number of Terminations [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Tolerance	Resistance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Temperature Coefficient	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Ohmite AP101 8K2 J	100 W	TO-247-2	24.51 mm	0.965 in	2	-65 ░C	175 °C	TO-247-2	5 %	8.2 kOhms	15.75 mm	0.62 in	0.195 in	4.95 mm	Moisture Resistant Non-Inductive	100 ppm/°C
Ohmite AP101 8K2 J	100 W	TO-247	20.96 mm	0.825 in	2	-65 ░C	175 °C	TO-247-2	5 %	8.2 kOhms	15.75 mm	0.62 in	0.195 in	4.95 mm	Moisture Resistant Non-Inductive	100 ppm/°C	Thick Film
Ohmite AP101 5R6 J	100 W	TO-247	20.96 mm	0.825 in	2	-65 ░C	175 °C	TO-247-2	5 %	5.6 Ohms	15.75 mm	0.62 in	0.195 in	4.95 mm	Moisture Resistant Non-Inductive	100 ppm/°C	Thick Film
Ohmite AP836 2R2 J	35 W	TO-220			2	-60 °C	150 °C	TO-220-2	5 %	2.2 Ohms	10.16 mm	0.4 "	0.175 "	4.44 mm	Non-Inductive	300 ppm/°C	Thick Film	15 mm	0.591 "
Ohmite AP101 1K F	100 W	TO-247	20.96 mm	0.825 in	2	-65 ░C	175 °C	TO-247-2	1 %	1000 Ohms	15.75 mm	0.62 in	0.195 in	4.95 mm	Moisture Resistant Non-Inductive	100 ppm/°C	Thick Film
Ohmite AP101 3K6 J	100 W	TO-247-2	24.51 mm	0.965 in	2	-65 ░C	175 °C	TO-247-2	5 %	3.6 kOhms	15.75 mm	0.62 in	0.195 in	4.95 mm	Moisture Resistant Non-Inductive	100 ppm/°C
Ohmite AP851 25R F	50 W	TO-220	16.52 mm	16.51 mm	2	-60 °C	150 °C	TO-220-2 Full Pack TO-220-2 No Tab	1 %	25 Ohms	10.41 mm	0.41 in	0.125 "	3.18 mm	Non-Inductive	100 ppm/°C	Thick Film	20.58 mm	0.81 in
Ohmite AP836 33R J	35 W	TO-220			2	-60 °C	150 °C	TO-220-2	5 %	33 Ohms	10.16 mm	0.4 "	0.175 "	4.44 mm	Non-Inductive	100 ppm/°C	Thick Film	15 mm	0.591 "
Ohmite AP101 3K6 J	100 W	TO-247	20.96 mm	0.825 in	2	-65 ░C	175 °C	TO-247-2	5 %	3.6 kOhms	15.75 mm	0.62 in	0.195 in	4.95 mm	Moisture Resistant Non-Inductive	100 ppm/°C	Thick Film
