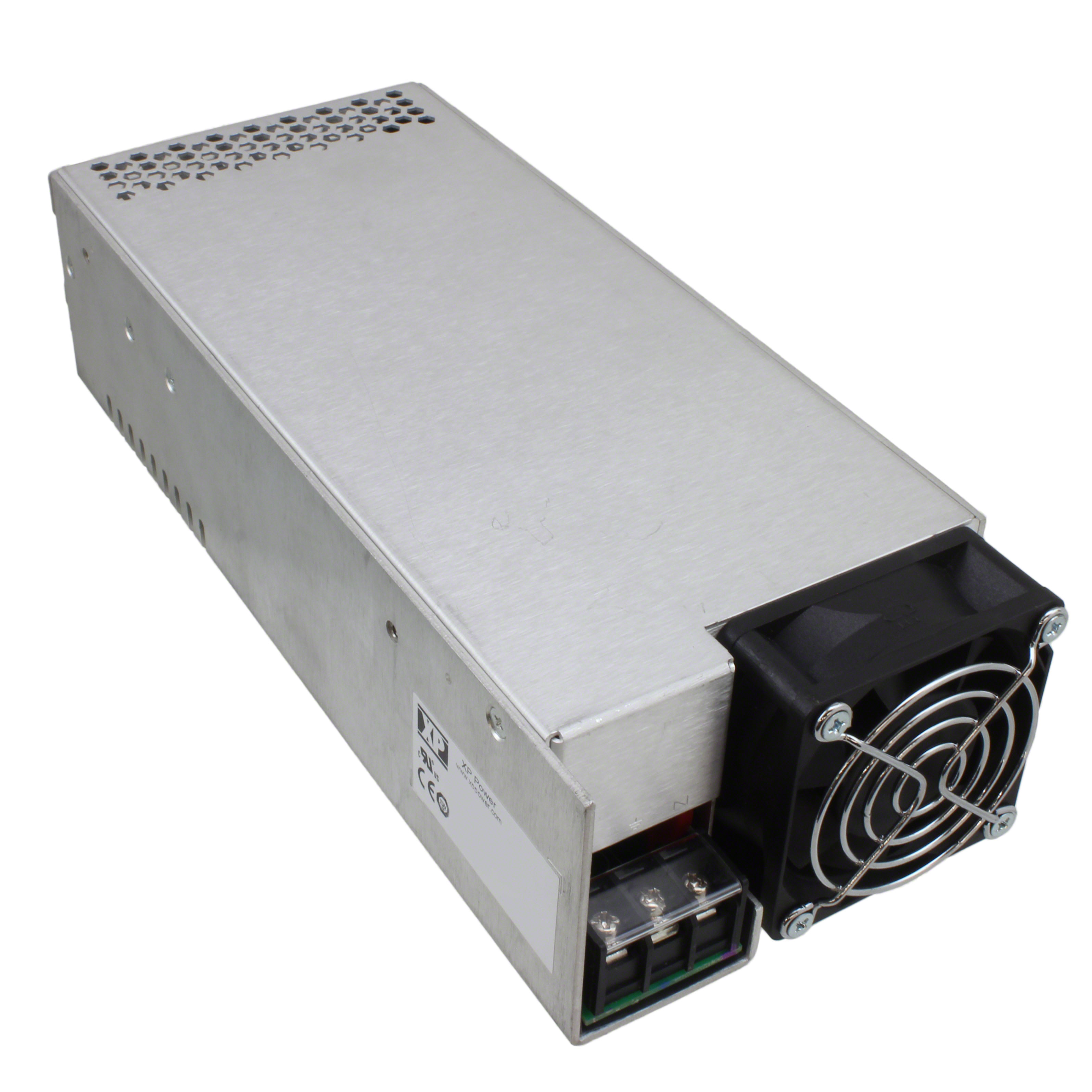

HHP650 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC ENCLOSED POWER SUPPLY, INDUSTRIAL, ADJUSTABLE, FIXED, 85 V, 305 V, 780 W, 24 V, 32.5 A ROHS COMPLIANT: YES
| Part | Minimum Load Required | Applications | Approval Agency | Current - Output 1 | Power (Watts) | Standard Number | Voltage - Isolation | Mounting Type | Number of Outputs | Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Features | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | ITE (Commercial) | CB TUV UL | 27 A | 657 W | 62368-1 | 3000 V | Chassis Mount | 1 | Conformal Coated Enclosed | 2.5 in | 253.8 mm | 63.5 mm | 4.2 in | 106.8 mm | 9.99 in | 24 V | 305 VAC | 85 VAC | Adjustable Output Load Sharing Remote On/Off Remote Sense Standby Output Universal Input | 85 % | |
 XP Power | ITE (Commercial) | CB TUV UL | 40 A | 607 W | 62368-1 | 3000 V | Chassis Mount | 1 | Conformal Coated Enclosed | 2.5 in | 253.8 mm | 63.5 mm | 4.2 in | 106.8 mm | 9.99 in | 15 V | 305 VAC | 85 VAC | Adjustable Output Load Sharing Remote On/Off Remote Sense Standby Output Universal Input | 85 % |
