Tda0 Series Series

Ultra-miniature Surface Mount Half-pitch DIP

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Ultra-miniature Surface Mount Half-pitch DIP

Part	Mechanical Life	Mounting Type	Contact Finish	Termination Style	Electrical Life	Current Rating (Amps)	Circuit	Number of Positions	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Actuator Type	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Features	Voltage Rating	Body Material	Length [x]	Length [x]	Length [custom]	Length [custom]	Length	Length	Height Above Board	Height Above Board

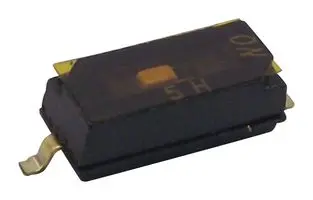

Littelfuse/Commercial Vehicle Products TDA01H0SB1R	1000 Cycles	Surface Mount	Gold	Gull Wing	1000 Cycles	25 mA	SPST	1	Flush Recessed	85 °C	-40 °C	Copper Alloy	Slide (Standard)	0.05 in	1.27 mm	0.091 in	2.3 mm	Tape Seal	24 VDC	Polyphenylene Sulfide (PPS)
Littelfuse/Commercial Vehicle Products TDA08H0SB1	1000 Cycles	Surface Mount	Gold	Gull Wing	1000 Cycles	25 mA	SPST	8	Flush Recessed	85 °C	-40 °C	Copper Alloy	Slide (Standard)	0.05 in	1.27 mm	0.091 in	2.3 mm	Tape Seal	24 VDC	Polyphenylene Sulfide (PPS)	0.444 in	11.28 mm
Littelfuse/Commercial Vehicle Products TDA10H0SB1	1000 Cycles	Surface Mount	Gold	Gull Wing	1000 Cycles	25 mA	SPST	10	Flush Recessed	85 °C	-40 °C	Copper Alloy	Slide (Standard)	0.05 in	1.27 mm	0.091 in	2.3 mm	Tape Seal	24 VDC	Polyphenylene Sulfide (PPS)	0.544 in	13.82 mm
Littelfuse/Commercial Vehicle Products TDA10H0JB1R	1000 Cycles	Surface Mount	Gold	Gull Wing	1000 Cycles	25 mA	SPST	10	Flush Recessed	85 °C	-40 °C	Copper Alloy	Slide (Standard)	0.05 in	1.27 mm	0.091 in	2.3 mm		24 VDC	Polyphenylene Sulfide (PPS)	0.544 in	13.82 mm
Littelfuse/Commercial Vehicle Products TDA04H0SB1	1000 Cycles	Surface Mount	Gold	Gull Wing	1000 Cycles	25 mA	SPST	4	Flush Recessed	85 °C	-40 °C	Copper Alloy	Slide (Standard)	0.05 in	1.27 mm	0.091 in	2.3 mm	Tape Seal	24 VDC	Polyphenylene Sulfide (PPS)			0.244 in	6.2 mm

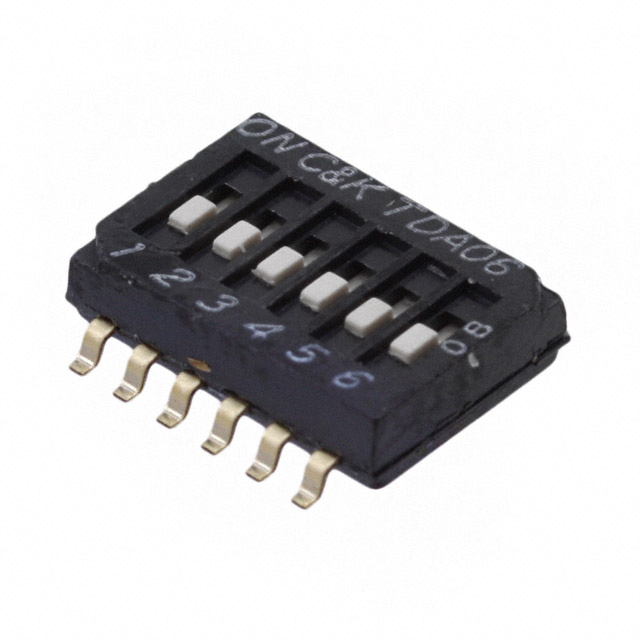

Littelfuse/Commercial Vehicle Products TDA06H0SB1R	1000 Cycles	Surface Mount	Gold	Gull Wing	1000 Cycles	25 mA	SPST	6	Flush Recessed	85 °C	-40 °C	Copper Alloy	Slide (Standard)	0.05 in	1.27 mm	0.091 in	2.3 mm	Tape Seal	24 VDC	Polyphenylene Sulfide (PPS)					8.75 mm	0.344 "
Littelfuse/Commercial Vehicle Products TDA10H0JB1	1000 Cycles	Surface Mount	Gold	Gull Wing	1000 Cycles	25 mA	SPST	10	Flush Recessed	85 °C	-40 °C	Copper Alloy	Slide (Standard)	0.05 in	1.27 mm	0.091 in	2.3 mm		24 VDC	Polyphenylene Sulfide (PPS)	0.544 in	13.82 mm
Littelfuse/Commercial Vehicle Products TDA08H0JB1R	1000 Cycles	Surface Mount	Gold	J Lead	1000 Cycles	25 mA	SPST	8	Flush Recessed	85 °C	-40 °C	Copper Alloy	Slide (Standard)	0.05 in	1.27 mm				24 VDC		0.444 in	11.28 mm					0.087 in	2.2 mm
Littelfuse/Commercial Vehicle Products TDA10H0SB1R	1000 Cycles	Surface Mount	Gold	Gull Wing	1000 Cycles	25 mA	SPST	10	Flush Recessed	85 °C	-40 °C	Copper Alloy	Slide (Standard)	0.05 in	1.27 mm	0.091 in	2.3 mm	Tape Seal	24 VDC	Polyphenylene Sulfide (PPS)	0.544 in	13.82 mm
Littelfuse/Commercial Vehicle Products TDA04H0JB1	1000 Cycles	Surface Mount	Gold	Gull Wing	1000 Cycles	25 mA	SPST	4	Flush Recessed	85 °C	-40 °C	Copper Alloy	Slide (Standard)	0.05 in	1.27 mm	0.091 in	2.3 mm		24 VDC	Polyphenylene Sulfide (PPS)			0.244 in	6.2 mm

Catalog

Ultra-miniature Surface Mount Half-pitch DIP

Key Features

• Bifurcated contact for increased electrical reliability

• Process sealed for surface mount soldering and washable processing

Description

The TDA series ultra-miniature surface mount half-pitch DIP switch from C&K has bifurcated contact for increased electrical reliability and is process sealed for surface mount soldering and washable processing. C&K’s reliable TDA switches are found in hand-held electronic devices, portable computers and various forms of instrumentation and controls.
