ST3P3L Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

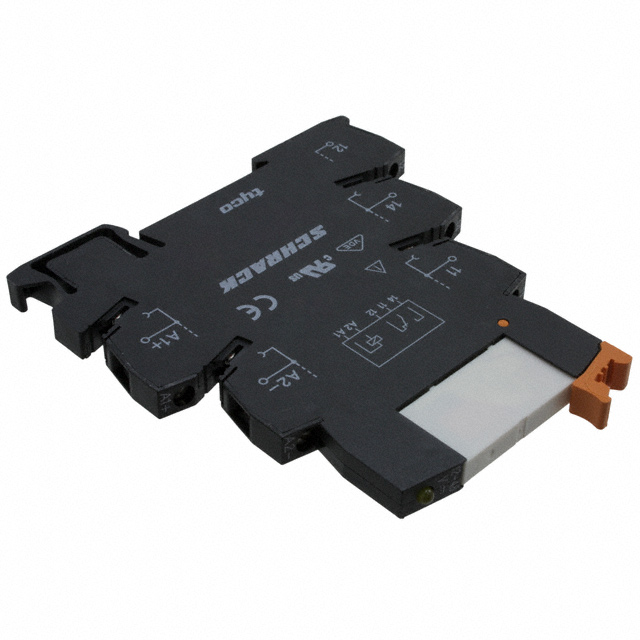

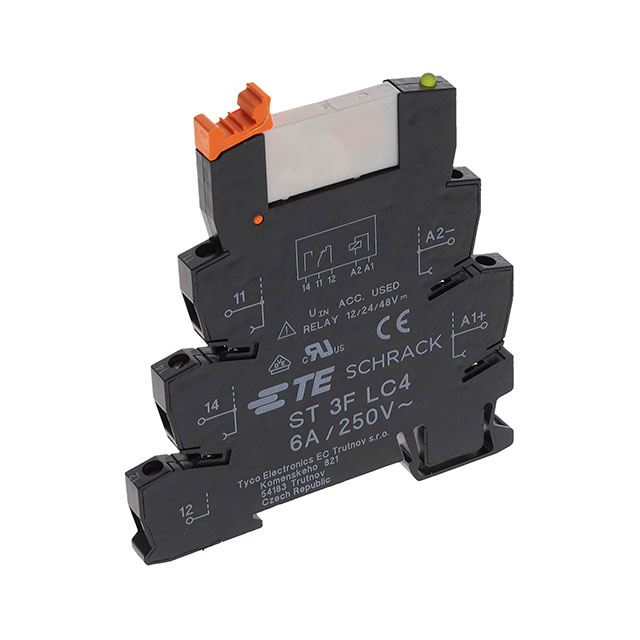

POWER RELAY 24VDC 6A SPDT(80X6.2X94)MM DIN RAIL
| Part | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Features | Relay Type | Must Operate Voltage | Contact Material | Coil Type | Approval Agency | Contact Rating (Current) | Contact Form | Load - Max Switching | Mounting Type | Switching Voltage [Max] | Must Release Voltage | Release Time | Termination Style | Coil Current | Coil Voltage | Seal Rating | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.4 kOhms | 55 °C | -40 C | Socket Included | General Purpose | 16.8 VDC | Silver Tin Oxide (AgSnO) | Non Latching | cURus VDE | 6 A | SPDT (1 Form C) | 2400 VA | DIN Rail | 400 VAC | 1.2 VDC | 5 ms | Screw Terminal | 7 mA | 24 VDC | Sealed - Fully | 12 ms |
 TE Connectivity AMP Connectors | 848 Ohms | 55 °C | -40 C | Socket Included | General Purpose | 8.4 VDC | Silver Tin Oxide (AgSnO) | Non Latching | cURus VDE | 6 A | SPDT (1 Form C) | 2400 VA | DIN Rail | 400 VAC | 0.6 VDC | 5 ms | Screw Terminal | 14.2 mA | 12 VDC | Sealed - Fully | 12 ms |
