MDI145 Series

Catalog

IGBT MODULE 1200V 160A 700W Y4M5

Part	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic	IGBT Type	Current - Collector (Ic) (Max) [Max]	Input Capacitance (Cies) @ Vce	NTC Thermistor	Configuration	Mounting Type	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Input

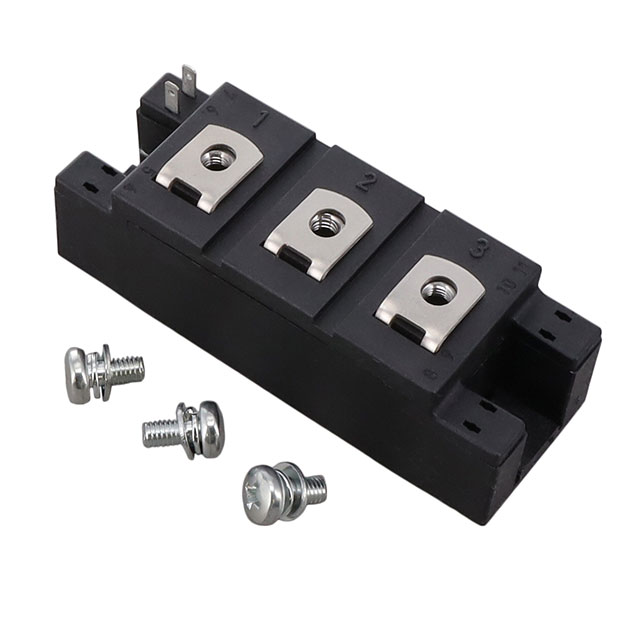

LITTELFUSE MDI145-12A3	700 W	2.7 V	NPT	160 A	6.5 nF		Single	Chassis Mount	Y4-M5	6 mA	Y4-M5	-40 °C	150 °C	1200 V	Standard
