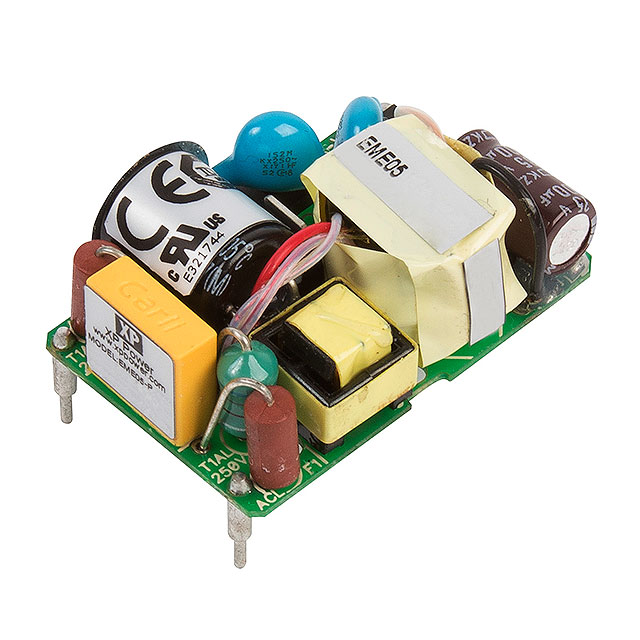

EME05US12 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 12V 5W
| Part | Line Regulation | Weight | Weight | Load Regulation | Current - Output (Max) [Max] | Features | Efficiency | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Type | Standard Number | Voltage - Output 1 | Applications | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Power (Watts) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 0.5 % | 13.61 g | 0.03 lb | ±1% | 416 mA | Universal Input | 80 % | CE cURus TUV | 0.51 in | 35.6 mm | 13 mm | 1.4 in | 23.7 mm | 0.93 in | Open Frame | 60601-1 | 12 V | Medical | 1 | 70 °C | -25 °C | 4-DIP Module | 5 W | Through Hole |
