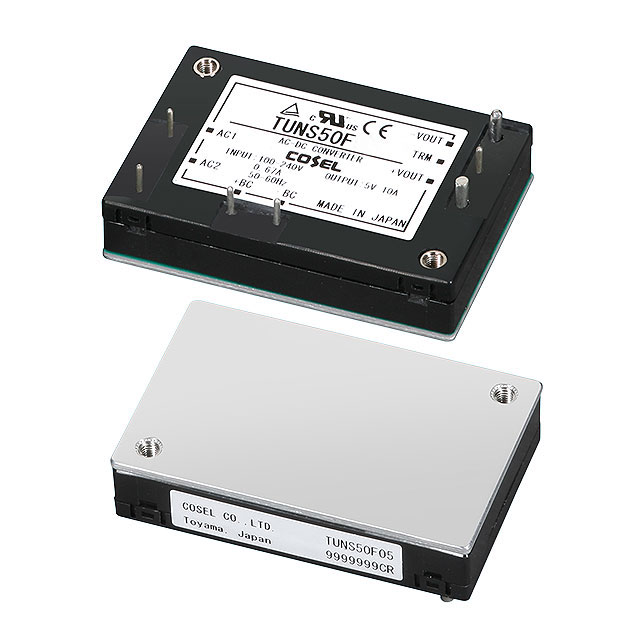

TUNS50 Series

Catalog

AC/DC CONVERTER 5V 50W

Part	Line Regulation	Load Regulation	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Features	Current - Output (Max) [Max]	Applications	Standard Number	Number of Outputs	Power (Watts)	Approval Agency	Package / Case	Mounting Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Type
Cosel USA, Inc. TUNS50F05	10 mV	10 mV	5 V	1.47 "	2.3 in	37.3 mm	0.5 in	58.4 mm	12.7 mm	Universal Input	10 A	ITE (Commercial)	60950-1 62368-1	1	50 W	CE CSA cURus TUV UL	7-DIP Module	Through Hole	81 %	-40 °C	100 °C	Enclosed
Cosel USA, Inc. TUNS50F24	48 mV	48 mV	24 V	1.47 "	2.3 in	37.3 mm	0.5 in	58.4 mm	12.7 mm	Universal Input	2.1 A	ITE (Commercial)	60950-1 62368-1	1	50 W	CE CSA cURus TUV UL	7-DIP Module	Through Hole	86 %	-40 °C	100 °C	Enclosed
Cosel USA, Inc. TUNS50F12	24 mV	24 mV	12 V	1.47 "	2.3 in	37.3 mm	0.5 in	58.4 mm	12.7 mm	Universal Input	4.2 A	ITE (Commercial)	60950-1 62368-1	1	50 W	CE CSA cURus TUV UL	7-DIP Module	Through Hole	84 %	-40 °C	100 °C	Enclosed
