86130342 Series

Catalog

CONN HEADER R/A 34POS 2.54MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Voltage Rating	Style	Material Flammability Rating	Shrouding	Insulation Color	Connector Type	Insulation Material	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Number of Positions	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Features	Contact Finish - Mating	Termination	Contact Finish - Post	Fastening Type	Insulation Height	Insulation Height	Contact Shape	Contact Length - Mating	Contact Length - Mating [x]	Mounting Type	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post

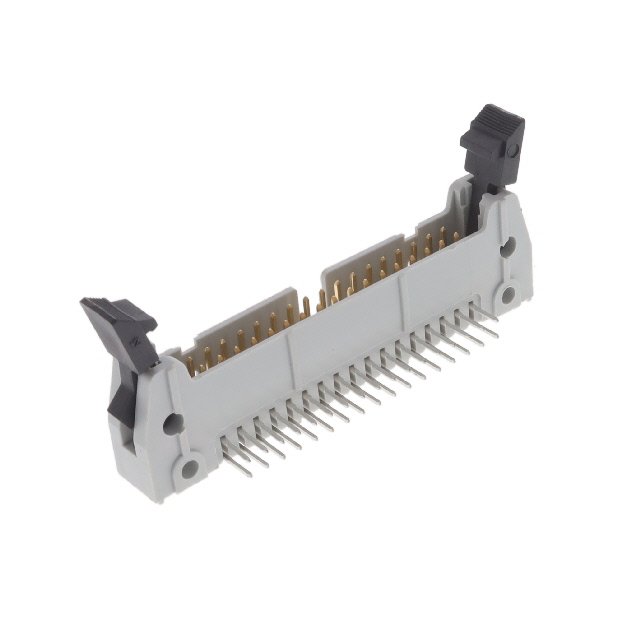

Amphenol ICC (FCI) 86130342113345E1LF	-55 °C	125 °C	Male Pin	250 VDC	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	Gray	Header	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	2.54 mm	0.1 in	2	34	All	0.165 in	4.19 mm	Copper Alloy	Keying Slot	Gold or Gold-Palladium	Solder	Tin	Latch Lock/Eject Hooks Long	8.75 mm	0.344 in	Circular	6.1 mm	0.24 in	Through Hole Right Angle
Amphenol ICC (FCI) 86130342113385E1LF	-55 °C	125 °C	Male Pin	250 VDC	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	Gray	Header	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	2.54 mm	0.1 in	2	34	All	0.165 in	4.19 mm	Copper Alloy	Keying Slot	Gold or Gold-Palladium	Solder	Tin	Latch Lock/Eject Hooks Long	8.75 mm	0.344 in	Circular	6.1 mm	0.24 in	Through Hole Right Angle
Amphenol ICC (FCI) 86130342324385E1LF	-55 °C	125 °C	Male Pin	250 VDC	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	Gray	Header	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	2.54 mm	0.1 in	2	34	All			Copper Alloy	Keying Slot	Gold or Gold-Palladium	Solder	Tin	Latch Lock/Eject Hooks Long	17.6 mm	0.693 in	Circular	6.1 mm	0.24 in	Through Hole	16.65 mm	0.656 in	0.114 in	2.9 mm

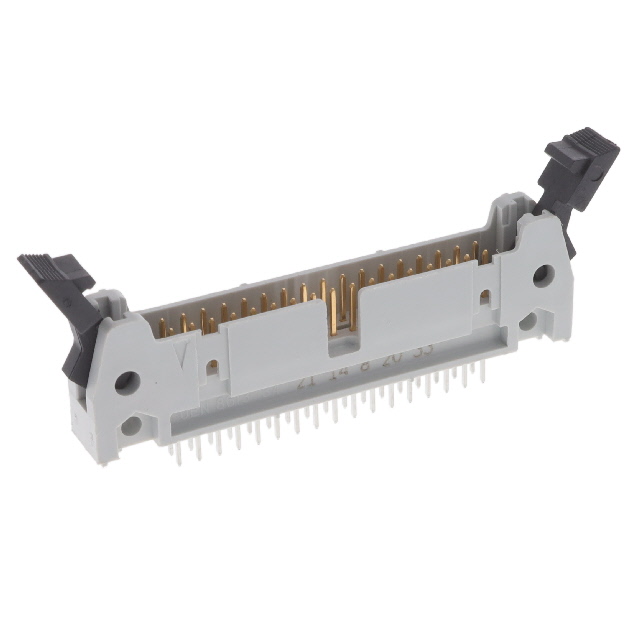

Amphenol ICC (FCI) 86130342114385E1LF	-55 °C	125 °C	Male Pin	250 VDC	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	Gray	Header	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	2.54 mm	0.1 in	2	34	All			Copper Alloy	Keying Slot	Gold or Gold-Palladium	Solder	Tin	Latch Lock/Eject Hooks Long	17.6 mm	0.693 in	Circular	6.1 mm	0.24 in	Through Hole	18.1 mm	0.713 in	0.171 in	4.35 mm
Amphenol ICC (FCI) 86130342314385E1LF	-55 °C	125 °C	Male Pin	250 VDC	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	Gray	Header	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	2.54 mm	0.1 in	2	34	All			Copper Alloy	Keying Slot	Gold or Gold-Palladium	Solder	Tin	Latch Lock/Eject Hooks Long	17.6 mm	0.693 in	Circular	6.1 mm	0.24 in	Through Hole	18.1 mm	0.713 in	0.171 in	4.35 mm
Amphenol ICC (FCI) 86130342323385E1LF	-55 °C	125 °C	Male Pin	250 VDC	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	Gray	Header	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	2.54 mm	0.1 in	2	34	All	0.11 in		Copper Alloy	Keying Slot	Gold or Gold-Palladium	Solder	Tin	Latch Lock/Eject Hooks Long	8.75 mm	0.344 in	Circular	6.1 mm	0.24 in	Through Hole Right Angle				2.79 mm

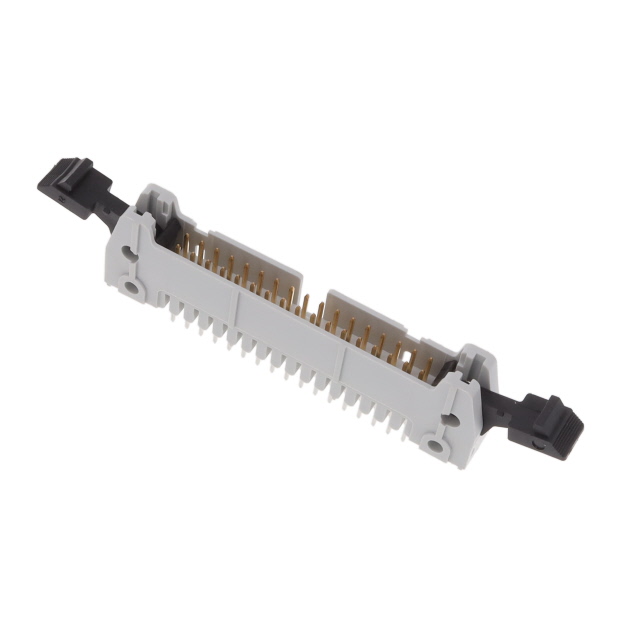

Amphenol ICC (FCI) 86130342114345E1LF	-55 °C	125 °C	Male Pin	250 VDC	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	Gray	Header	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	2.54 mm	0.1 in	2	34	All			Copper Alloy	Keying Slot	Gold or Gold-Palladium	Solder	Tin	Latch Lock/Eject Hooks Long	17.6 mm	0.693 in	Circular	6.1 mm	0.24 in	Through Hole	18.1 mm	0.713 in	0.171 in	4.35 mm
