NPPN062 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 12POS 0.079 GOLD SMD
| Part | Contact Material | Insulation Material | Contact Finish Thickness - Post | Contact Shape | Features | Insulation Color | Material Flammability Rating | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Termination | Contact Finish - Mating | Number of Rows [custom] | Number of Positions Loaded | Current Rating (Amps) | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Mounting Type | Number of Positions | Connector Type | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

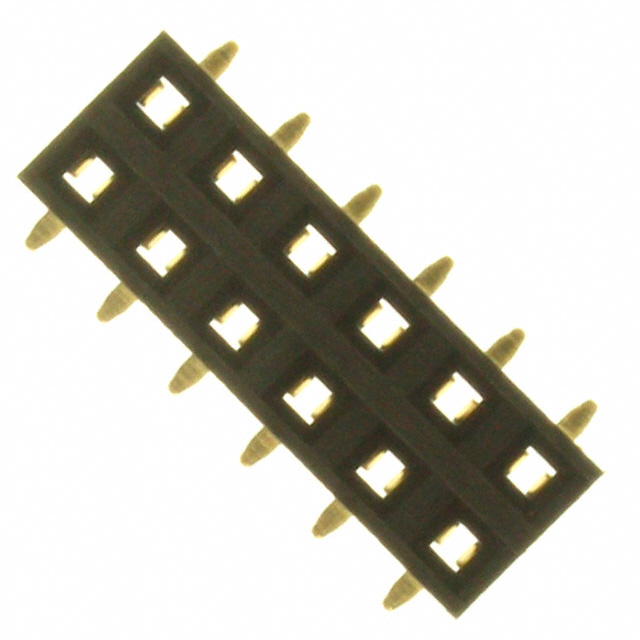

 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Flash | Square | Board Guide | Black | UL94 V-0 | 2 mm | 0.079 in | Flash | Solder | Gold | 2 | All | 2 A | Female Socket | -40 C | 105 ░C | Push-Pull | Gold | 0.079 " | 2 mm | Surface Mount | 12 | Header Top or Bottom Entry | |||||
 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Flash | Square | Board Guide Pick and Place | Black | UL94 V-0 | 2 mm | 0.079 in | Flash | Solder | Gold | 2 | All | 2 A | Female Socket | -40 C | 105 ░C | Push-Pull | Gold | 0.079 " | 2 mm | Surface Mount | 12 | Header Top or Bottom Entry | |||||

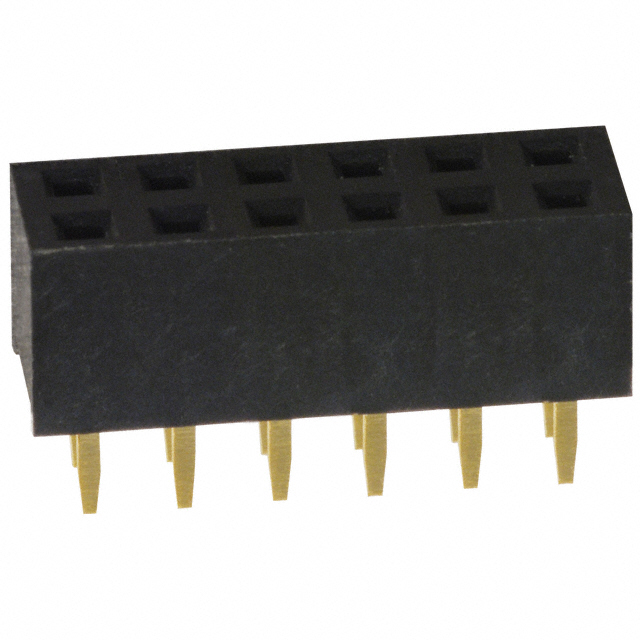

 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Flash | Square | Black | UL94 V-0 | 2 mm | 0.079 in | Flash | Solder | Gold | 2 | All | Female Socket | -40 C | 105 ░C | Push-Pull | Gold | 0.079 " | 2 mm | Through Hole | 12 | Header | 2.4 mm | 0.094 in | 4.3 mm | 0.169 " | |||

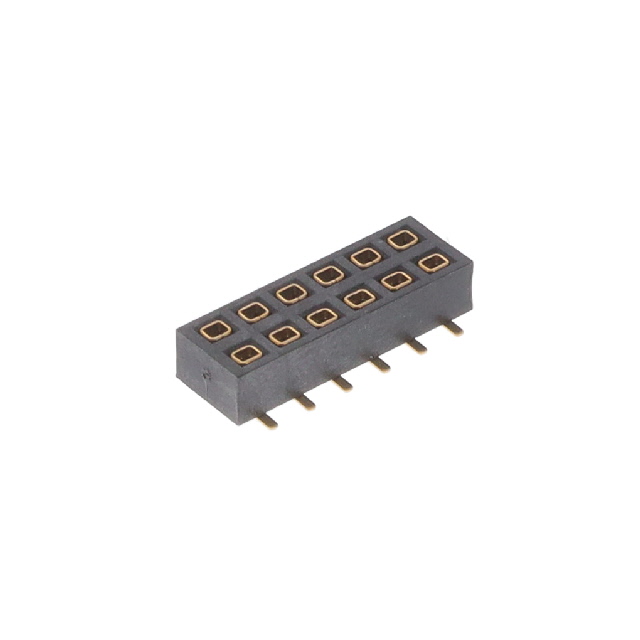

 Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Flash | Square | Black | UL94 V-0 | 2 mm | 0.079 in | Flash | Solder | Gold | 2 | All | 2 A | Female Socket | -40 C | 105 ░C | Push-Pull | Gold | 0.079 " | 2 mm | Surface Mount | 12 | Header | 0.173 in | 4.4 mm | ||||
Sullins Connector Solutions | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Flash | Square | Pick and Place | Black | UL94 V-0 | 2 mm | 0.079 in | Flash | Solder | Gold | 2 | All | 2 A | Female Socket | -40 C | 105 ░C | Push-Pull | Gold | 0.079 " | 2 mm | Surface Mount | 12 | Header Top or Bottom Entry |
