0327010.YX2S Series

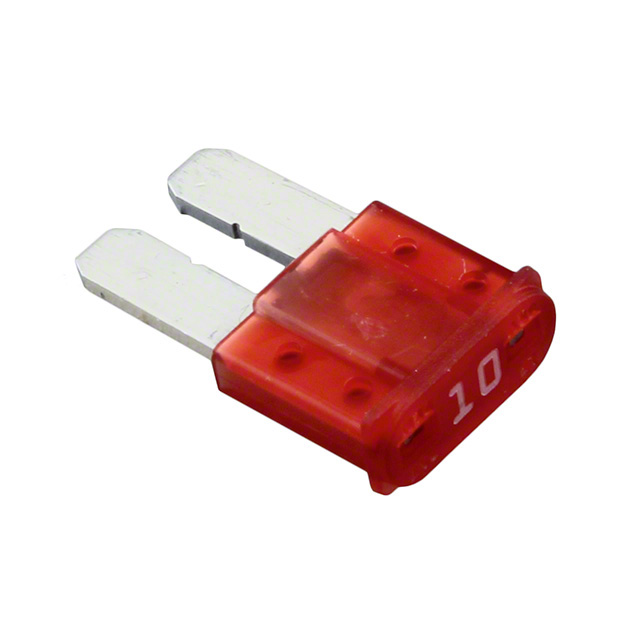

Fuse - Micro2 Blade 32V Ag 10A 4000 pc

Catalog

Fuse - Micro2 Blade 32V Ag 10A 4000 pc

Part	DC Cold Resistance	Color	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current Rating (Amps)	Voltage Rating - DC	Melting I²t	Fuse Type	Package / Case
LITTELFUSE 0327010.YX2S	0.0077 Ohms	Red	125 °C	-40 C	Requires Holder	0.358 "	9.1 mm	3.8 mm	0.15 "	0.311 "	7.9 mm	10 A	32 V	89	Automotive	Blade Micro

Catalog

Fuse - Micro2 Blade 32V Ag 10A 4000 pc

Description

This 10 A MICRO2TM blade fuse has proven its reliability in polluted, humid, and high-temperature environments. Its subminiature design makes the MICRO2 a go-to option for automakers looking to reduce vehicle weight without sacrificing circuit protection.
