83706 Series
Manufacturer: Belden Inc.
Beta
⌘K

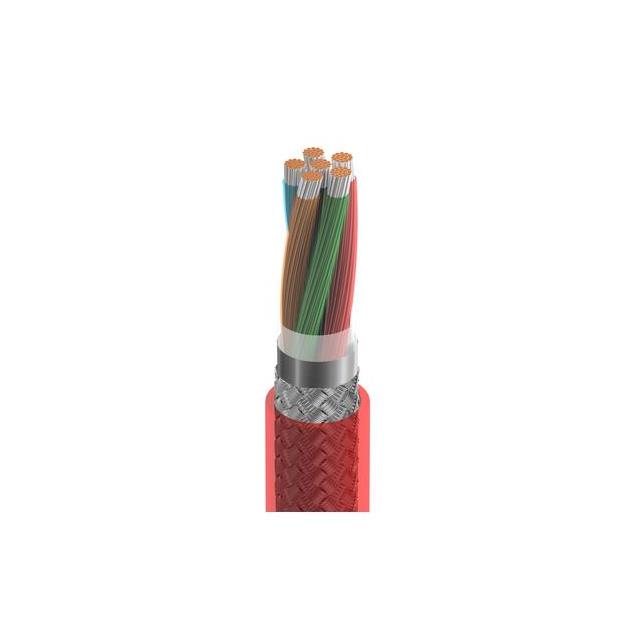

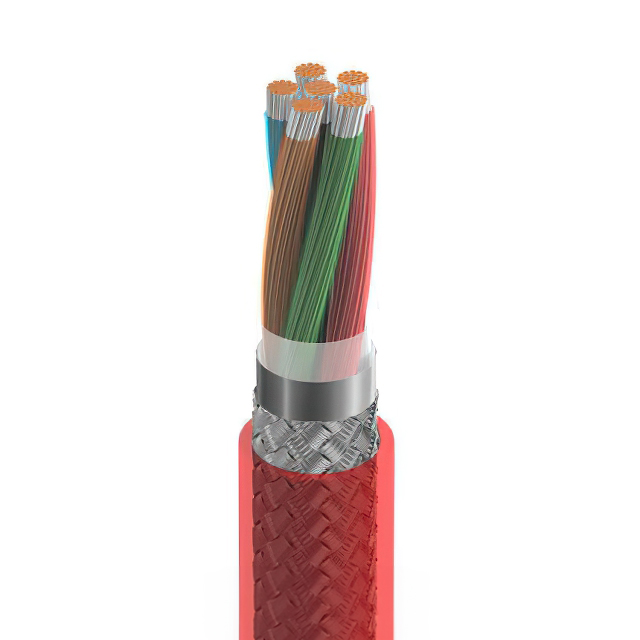

CABLE 6COND 16AWG RED SHLD
| Part | Shield Material | Shield Coverage | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Jacket (Insulation) Material | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Jacket Color | Conductor Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 6 | -70 °C | 200 °C | Fluorinated Ethylene-Propylene (FEP) | Fluorinated Ethylene-Propylene (FEP) Plenum | 16 AWG | 0.014 in | 0.356 mm | Audio Control Instrumentation | Red | Copper Tinned | Braid Foil | 6.73 mm | 0.265 in | 304.8 m | 1000 ft | 300 VDC | 19 | 29 | UL Style CMP | Multi-Conductor | ||
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 6 | -70 °C | 200 °C | Fluorinated Ethylene-Propylene (FEP) | Fluorinated Ethylene-Propylene (FEP) Plenum | 16 AWG | 0.014 in | 0.356 mm | Audio Control Instrumentation | Red | Copper Tinned | Braid Foil | 6.73 mm | 0.265 in | 152.4 m | 500 ft | 300 VDC | 19 | 29 | UL Style CMP | Multi-Conductor | ||
Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 6 | -70 °C | 200 °C | Fluorinated Ethylene-Propylene (FEP) | Fluorinated Ethylene-Propylene (FEP) Plenum | 16 AWG | 0.014 in | 0.356 mm | Audio Control Instrumentation | Red | Copper Tinned | Braid Foil | 6.73 mm | 0.265 in | 300 VDC | 19 | 29 | UL Style CMP | Multi-Conductor | 100 ft | 30.5 m |
