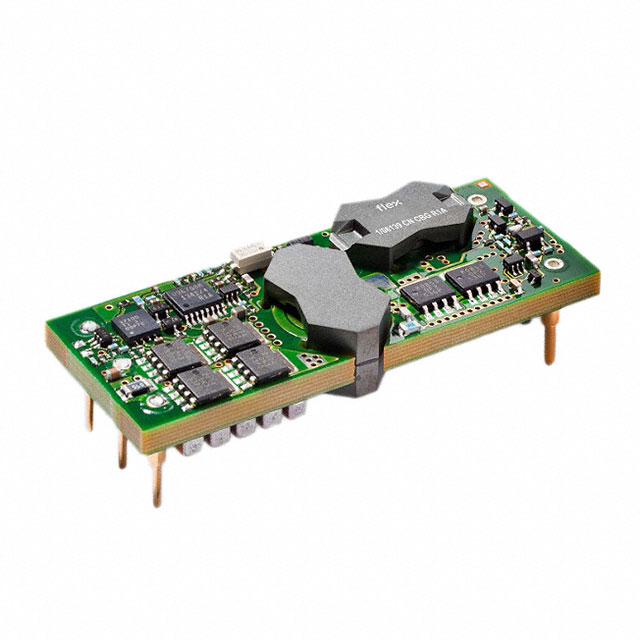

PKB420 Series

Catalog

DC DC CONVERTER 12V 240W

Part	Features	Supplier Device Package	Approval Agency	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Efficiency	Voltage - Input (Min) [Min]	Standard Number	Voltage - Isolation	Current - Output (Max) [Max]	Applications	Control Features	Type	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Package / Case	Number of Outputs
Flex Power Modules PKB4204PI	Adjustable Output OTP OVP Remote On/Off	Eighth Brick	CB CSA IEC TUV UL	240 Watts	-30 °C	90 °C	Through Hole	95.5 %	40 V	62368-1	1.5 kV	20 A	ITE (Commercial)	Active Low Enable	Isolated Module	75 V	58.4 mm	0.4 "	10.1 mm	22.7 mm	0.89 in	2.3 in	12 V	Eighth Brick	1
Flex Power Modules PKB4204PIHS	Adjustable Output Baseplate OTP OVP Remote On/Off	Eighth Brick	CB CSA IEC TUV UL	240 Watts	-30 °C	90 °C	Through Hole	95.5 %	40 V	62368-1	1.5 kV	20 A	ITE (Commercial)	Active Low Enable	Intermediate Bus Converter	75 V	58.4 mm	0.5 in	12.7 mm	22.7 mm	0.89 in	2.3 in	12 V	Eighth Brick	1
