38.52.0 Series

Catalog

RELAY GEN PURPOSE DPDT 8A 125V

Part	Coil Resistance	Operate Time	Contact Material	Coil Voltage	Coil Voltage	Release Time	Must Release Voltage	Coil Type	Switching Voltage [Max]	Load - Max Switching	Contact Form	Contact Rating (Current)	Relay Type	Termination Style	Features	Must Operate Voltage	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Mounting Type
Finder Relays, Inc. 38.52.0.125.5060	27.2 kOhms	8 ms	Gold (Au) Silver Nickel (AgNi)	125 VDC	125 VAC	10 ms	12.5 VAC/DC	Non Latching	400 VAC	3200 VA	DPDT (2 Form C)	8 A	General Purpose	Screw Terminal	Socket Included	88 VAC/DC	CE CSA cURus EAC RINA UKCA	55 °C	-40 C	4.6 mA	DIN Rail

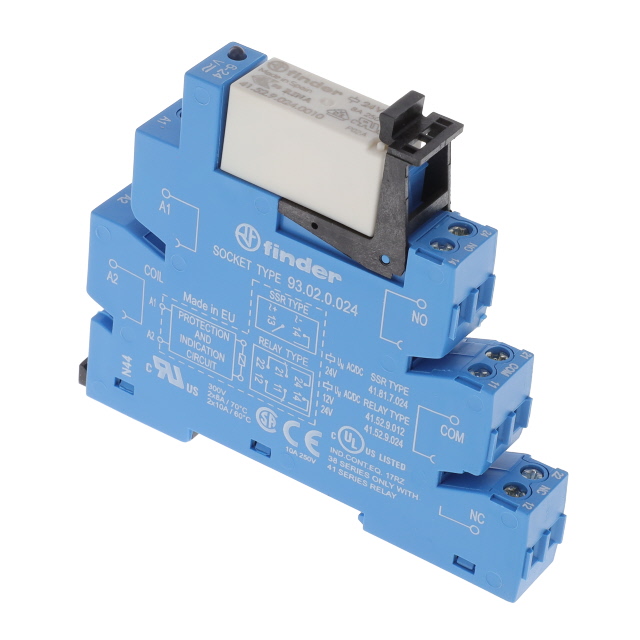

Finder Relays, Inc. 38.52.0.024.0060	1.2 kOhms	8 ms	Silver Nickel (AgNi)		24 VAC	10 ms	2.4 VAC/DC	Non Latching	400 VAC	3200 VA	DPDT (2 Form C)	8 A	General Purpose	Screw Terminal	Socket Included	19.2 VAC	CE CSA cURus EAC RINA UKCA	70 °C	-40 C	0.02 A	DIN Rail
Finder Relays, Inc. 38.52.0.125.0060	27.2 kOhms	8 ms	Silver Nickel (AgNi)	125 VDC	125 VAC	10 ms	12.5 VAC/DC	Non Latching	400 VAC	3200 VA	DPDT (2 Form C)	8 A	General Purpose	Screw Terminal	Socket Included	88 VAC/DC	CE CSA cURus EAC RINA UKCA	55 °C	-40 C	4.6 mA	DIN Rail
Finder Relays, Inc. 38.52.0.240.0060	63.2 kOhms	8 ms	Silver Nickel (AgNi)		240 VAC/DC	10 ms	24 VAC	Non Latching	400 VAC	3200 VA	DPDT (2 Form C)	8 A	General Purpose	Screw Terminal	Socket Included	184 VAC	CE CSA cURus EAC RINA UKCA	55 °C	-40 C	3.8 mA	DIN Rail
