N/MS3108 Series
Manufacturer: JAE Electronics
Beta
⌘K
STANDARD CIRCULAR CONNECTOR PLUG 5P SCKT R/A
| Part | Number of Positions | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shell Material | Mounting Type | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Backshell Material, Plating | Voltage Rating | Color | Contact Finish - Mating | Material Flammability Rating | Contact Material | Primary Material | Insert Material | Shell Finish | Fastening Type | Orientation | Features | Shell Size - Insert | Shell Size - Insert [Min] [custom] | Shell Size - Insert [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | 5 | 23 A | -55 C | 125 °C | Plug Female Sockets | Aluminum Alloy | Free Hanging (In-Line) Right Angle | 18 | 11 | Aluminum Alloy Zinc | 500 VAC | Black | Silver | UL94 V-0 | Copper Alloy | Metal | Synthetic Resin | Zinc | Threaded | N (Normal) | Backshell Coupling Nut | |||
JAE Electronics | 14 | 13 A | -55 C | 125 °C | Plug Female Sockets | Aluminum Alloy | Free Hanging (In-Line) Right Angle | 20 | 27 | Aluminum Alloy Zinc | 500 VAC | Black | Silver | UL94 V-0 | Copper Alloy | Metal | Synthetic Resin | Zinc | Threaded | N (Normal) | Backshell Coupling Nut | |||

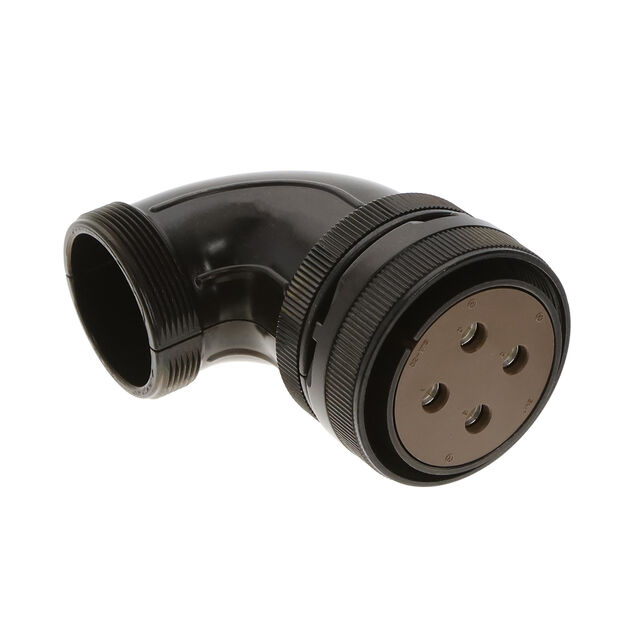

 JAE Electronics | 4 | 80 A | -55 C | 125 °C | Plug Female Sockets | Aluminum Alloy | Free Hanging (In-Line) Right Angle | Aluminum Alloy Zinc | 900 VAC | Black | Silver | UL94 V-0 | Copper Alloy | Metal | Synthetic Resin | Zinc | Threaded | N (Normal) | Backshell Coupling Nut | 32-17 | ||||
JAE Electronics | 4 | 23 A | -55 C | 125 °C | Plug Female Sockets | Aluminum Alloy | Free Hanging (In-Line) Right Angle | Aluminum Alloy Zinc | 500 VAC | Black | Silver | UL94 V-0 | Copper Alloy | Metal | Synthetic Resin | Zinc | Threaded | N (Normal) | Backshell Coupling Nut | 18 | 10 | |||
JAE Electronics | 9 | 13 A 23 A | -55 C | 125 °C | Plug Female Sockets | Aluminum Alloy | Free Hanging (In-Line) Right Angle | 20 | 18 | Aluminum Alloy Zinc | 500 VAC | Black | Silver | UL94 V-0 | Copper Alloy | Metal | Synthetic Resin | Zinc | Threaded | N (Normal) | Backshell Coupling Nut | |||
JAE Electronics | 6 | 13 A 23 A | -55 C | 125 °C | Plug Female Sockets | Aluminum Alloy | Free Hanging (In-Line) Right Angle | 20 | 17 | Aluminum Alloy Zinc | 500 VAC | Black | Silver | UL94 V-0 | Copper Alloy | Metal | Synthetic Resin | Zinc | Threaded | N (Normal) | Backshell Coupling Nut | |||
JAE Electronics | 26 | 13 A | -55 C | 125 °C | Plug Male Pins | Aluminum Alloy | Free Hanging (In-Line) Right Angle | 28 | 12 | Aluminum Alloy Zinc | 500 VAC | Black | Silver | UL94 V-0 | Copper Alloy | Metal | Synthetic Resin | Zinc | Threaded | N (Normal) | Backshell Coupling Nut | |||
JAE Electronics | 13 A | -55 C | 125 °C | Plug Male Pins | Aluminum Alloy | Free Hanging (In-Line) Right Angle | Aluminum Alloy Zinc | 500 VAC | Black | Silver | UL94 V-0 | Copper Alloy | Metal | Synthetic Resin | Zinc | Threaded | N (Normal) | Backshell Coupling Nut | 14S-7 | |||||
JAE Electronics | 7 | 46 A | -55 C | 125 °C | Plug Female Sockets | Aluminum Alloy | Free Hanging (In-Line) Right Angle | 24 | 10 | Aluminum Alloy Zinc | 500 VAC | Black | Silver | UL94 V-0 | Copper Alloy | Metal | Synthetic Resin | Zinc | Threaded | N (Normal) | Backshell Coupling Nut | |||
JAE Electronics | 4 | 23 A | -55 C | 125 °C | Plug Female Sockets | Aluminum Alloy | Free Hanging (In-Line) Right Angle | 20 | 4 | Aluminum Alloy Zinc | 900 VAC | Black | Silver | UL94 V-0 | Copper Alloy | Metal | Synthetic Resin | Zinc | Threaded | N (Normal) | Backshell Coupling Nut |
