0680-0 Series

Catalog

CONN PIN RCPT .015-.025 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Mounting Hole Diameter	Mounting Hole Diameter	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Termination	Contact Material

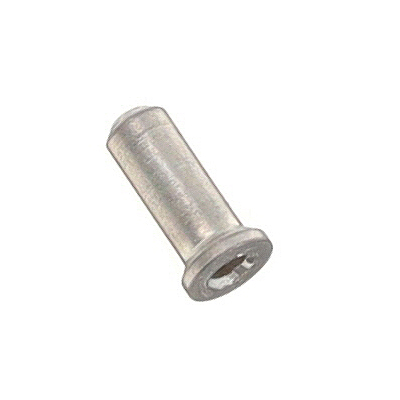

Mill-Max Manufacturing Corp. 0680-0-15-01-32-02-10-0	-55 C	125 °C	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 µm	100 µin	3.51 mm	0.138 in	3.05 mm	0.12 in	1.3 mm	0.051 in	0.068 in	1.73 mm	Tin-Lead	Solder	Beryllium Copper
Mill-Max Manufacturing Corp. 0680-0-15-01-32-27-10-0	-55 C	125 °C	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	0.76 Ám	30 Áin	3.51 mm	0.138 in	3.05 mm	0.12 in	1.3 mm	0.051 in	0.068 in	1.73 mm	Gold	Solder	Beryllium Copper
Mill-Max Manufacturing Corp. 0680-0-15-80-32-27-10-0	-55 C	125 °C	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	0.76 Ám	30 Áin	3.51 mm	0.138 in	3.05 mm	0.12 in	1.3 mm	0.051 in	0.068 in	1.73 mm	Gold	Solder	Beryllium Copper

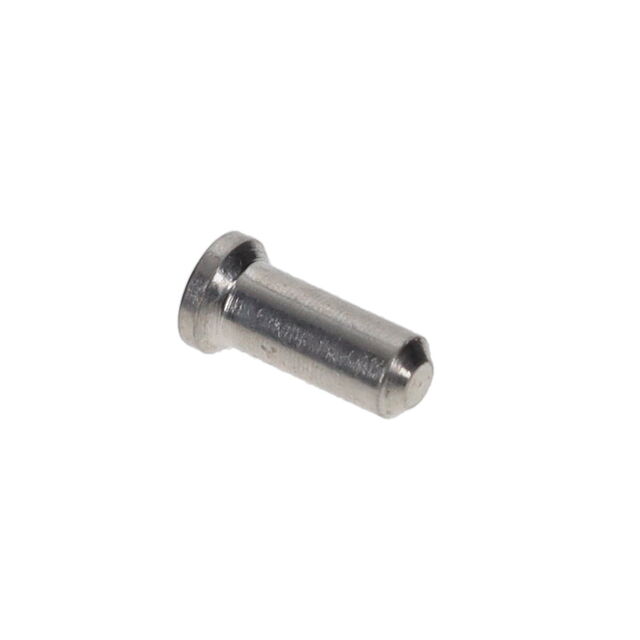

Mill-Max Manufacturing Corp. 0680-0-15-01-32-14-10-0	-55 C	125 °C	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	0.25 Ám	10 Áin	3.51 mm	0.138 in	3.05 mm	0.12 in	1.3 mm	0.051 in	0.068 in	1.73 mm	Gold	Solder	Beryllium Copper
Mill-Max Manufacturing Corp. 0680-0-15-80-32-84-10-0	-55 C	125 °C	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 µm	100 µin	3.51 mm	0.138 in	3.05 mm	0.12 in	1.3 mm	0.051 in	0.068 in	1.73 mm	Tin	Solder	Beryllium Copper
