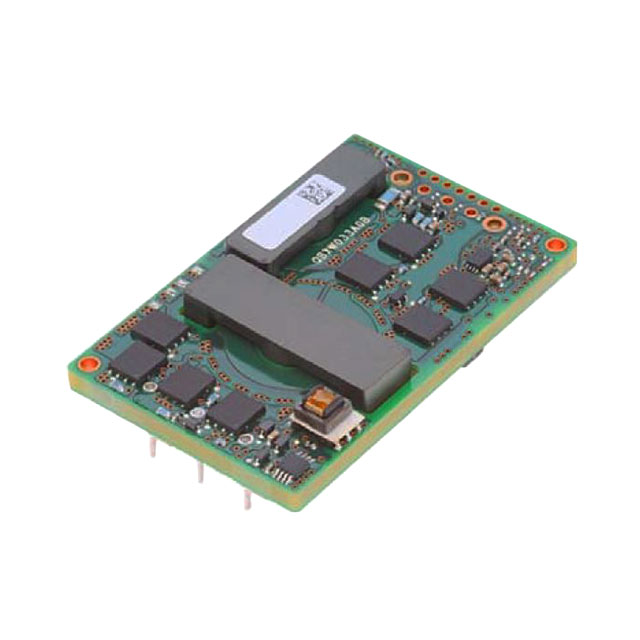

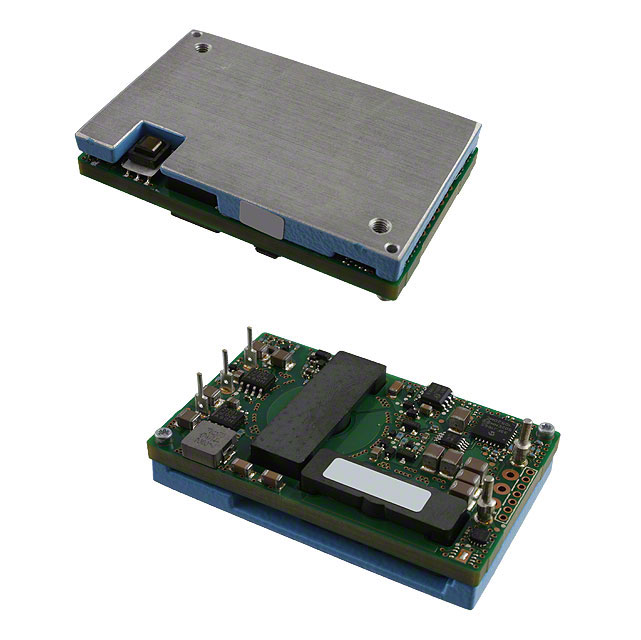

QBVW033 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 12V 400W
| Part | Number of Outputs | Power (Watts) | Efficiency | Voltage - Isolation | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Applications | Voltage - Input (Min) [Min] | Mounting Type | Package / Case | Features | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Input (Max) [Max] | Type | Control Features | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 1 | 400 W | 96 % | 2250 VDC | 33 A | 85 °C | -40 C | 12 V | ITE (Commercial) | 36 V | Through Hole | 5-DIP Module 1/4 Brick | OCP OTP OVP Remote On/Off UVLO | 0.46 in | 2.3 in | 1.45 in | 58.4 mm | 11.7 mm | 36.8 mm | 75 V | Intermediate Bus Converter | Active Low Enable | ||
OmniOn Power™ | 1 | 400 W | 95.5 % | 2250 VDC | 33 A | 85 °C | -40 C | 12 V | ITE (Commercial) | 36 V | Through Hole | 5-DIP Module 1/4 Brick | OCP OTP OVP Remote On/Off UVLO | 0.46 in | 2.3 in | 1.45 in | 58.4 mm | 11.7 mm | 36.8 mm | 75 V | Intermediate Bus Converter | Active Low Enable | ||
 OmniOn Power™ | 1 | 400 W | 96 % | 2250 VDC | 33 A | 85 °C | -40 C | 12 V | ITE (Commercial) | 36 V | Through Hole | 8-DIP Module | OCP OTP OVP Remote On/Off UVLO | 0.5 in | 2.3 in | 1.45 in | 58.4 mm | 75 V | Isolated Module | Active Low Enable | 36.8 mm | 12.6 mm | ||
OmniOn Power™ | 1 | 400 W | 96 % | 2250 VDC | 33 A | 85 °C | -40 C | 12 V | ITE (Commercial) | 36 V | Through Hole | 5-DIP Module 1/4 Brick | OCP OTP OVP Remote On/Off UVLO | 0.46 in | 2.3 in | 1.45 in | 58.4 mm | 11.7 mm | 36.8 mm | 75 V | Intermediate Bus Converter | Active Low Enable | ||
OmniOn Power™ | 1 | 400 W | 96 % | 2250 VDC | 33 A | 85 °C | -40 C | 12 V | ITE (Commercial) | 36 V | Through Hole | 8-DIP Module | OCP OTP OVP Remote On/Off UVLO | 0.5 in | 2.3 in | 1.45 in | 58.4 mm | 75 V | Isolated Module | Active Low Enable | 36.8 mm | 12.6 mm | ||
OmniOn Power™ | 1 | 400 W | 96 % | 2250 VDC | 33 A | 85 °C | -40 C | 12 V | ITE (Commercial) | 36 V | Through Hole | 8-DIP Module | OCP OTP OVP Remote On/Off UVLO | 0.5 in | 2.3 in | 1.45 in | 58.4 mm | 75 V | Isolated Module | Active Low Enable | 36.8 mm | 12.6 mm | ||
 OmniOn Power™ | 1 | 400 W | 96 % | 2250 VDC | 33 A | 85 °C | -40 C | 12 V | ITE (Commercial) | 36 V | Through Hole | 8-DIP Module | OCP OTP OVP Remote On/Off UVLO | 0.5 in | 2.3 in | 1.45 in | 58.4 mm | 75 V | Isolated Module | Active Low Enable | 36.8 mm | 12.6 mm | ||
OmniOn Power™ | 1 | 400 W | 96 % | 2250 VDC | 33 A | 85 °C | -40 C | 12 V | ITE (Commercial) | 36 V | Through Hole | 8-DIP Module | OCP OTP OVP Remote On/Off UVLO | 0.5 in | 2.3 in | 1.45 in | 58.4 mm | 75 V | Isolated Module | Active Low Enable | 36.8 mm | 12.6 mm | ||
 OmniOn Power™ | 1 | 400 W | 96 % | 2250 VDC | 33 A | 85 °C | -40 C | 12 V | ITE (Commercial) | 36 V | Through Hole | 8-DIP Module | OCP OTP OVP Remote On/Off UVLO | 0.5 in | 2.3 in | 1.45 in | 58.4 mm | 75 V | Isolated Module | Active Low Enable | 36.8 mm | 12.6 mm | ||
OmniOn Power™ | 1 | 400 W | 96 % | 2250 VDC | 33 A | 85 °C | -40 C | 12 V | ITE (Commercial) | 36 V | Through Hole | 8-DIP Module | OCP OTP OVP Remote On/Off UVLO | 0.5 in | 2.3 in | 1.45 in | 58.4 mm | 75 V | Isolated Module | Active Low Enable | 36.8 mm | 12.6 mm |
