726-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

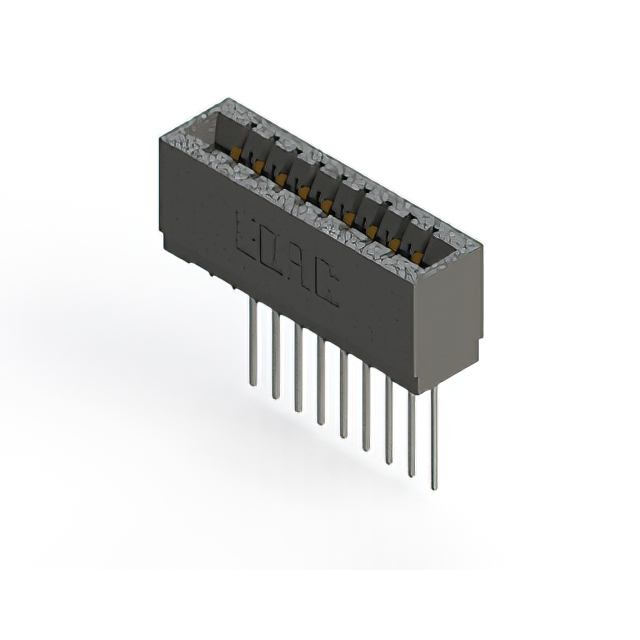

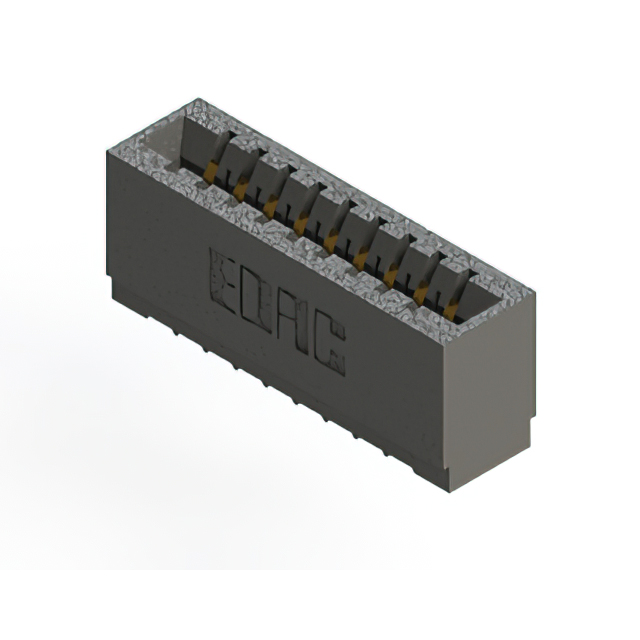

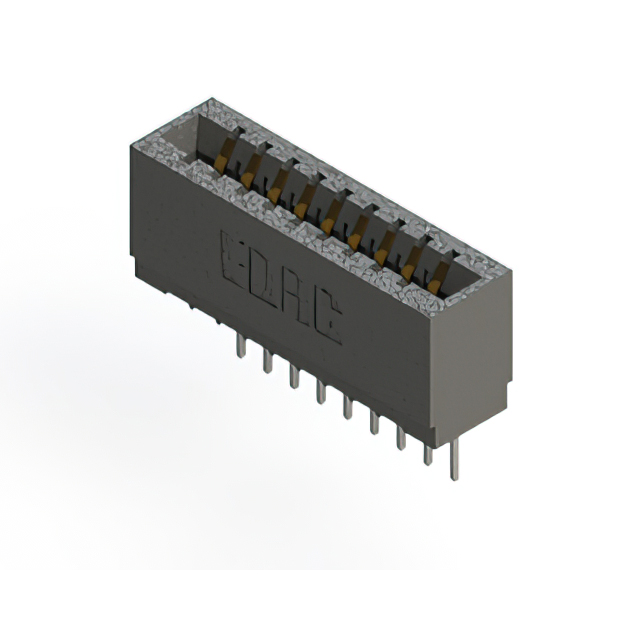

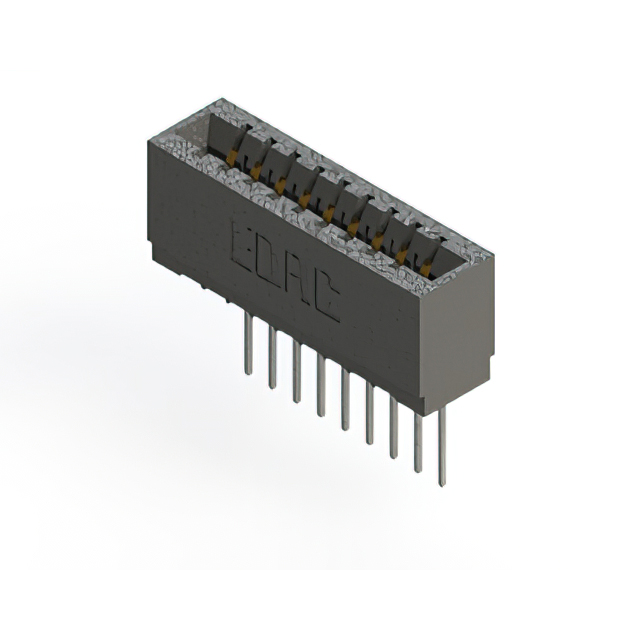

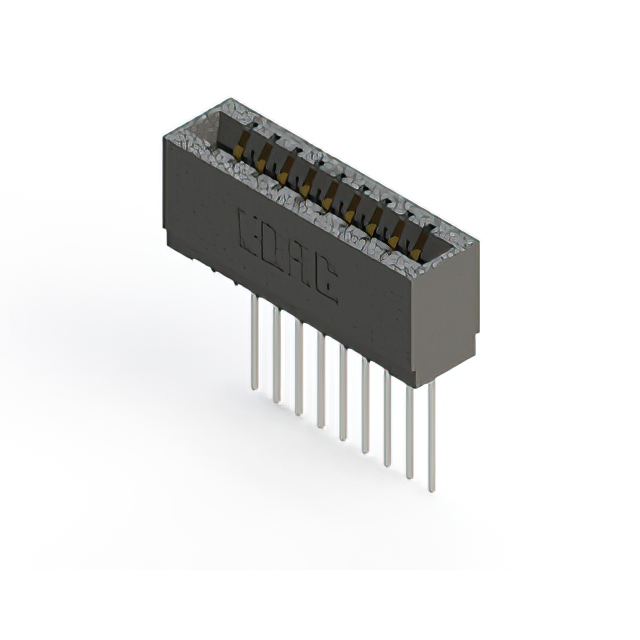

CONN EDGE SGL FMALE 9POS 0.125
| Part | Termination Rows | Material - Insulation | Gender | Termination | Number of Positions | Contact Type | Card Type | Mounting Type | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Color | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Pitch | Pitch | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | Press-Fit | 9 | Cantilever | Non Specified - Single Edge | Through Hole | Single | -40 C | 105 ░C | Gold | Black | 30 Áin | 0.76 Ám | 9 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 3.18 mm | 0.125 in | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | Press-Fit | 9 | Cantilever | Non Specified - Single Edge | Through Hole | Single | -40 C | 105 ░C | Gold | Black | 30 Áin | 0.76 Ám | 9 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 3.18 mm | 0.125 in | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | Press-Fit Wire Wrap | 9 | Cantilever | Non Specified - Single Edge | Through Hole | Single | -40 C | 105 ░C | Gold | Black | 30 Áin | 0.76 Ám | 9 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 3.18 mm | 0.125 in | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | Press-Fit Wire Wrap | 9 | Cantilever | Non Specified - Single Edge | Through Hole | Single | -40 C | 105 ░C | Gold | Black | 30 Áin | 0.76 Ám | 9 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 3.18 mm | 0.125 in | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | Press-Fit | 9 | Cantilever | Non Specified - Single Edge | Through Hole | Single | -40 C | 105 ░C | Gold | Black | 30 Áin | 0.76 Ám | 9 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 3.18 mm | 0.125 in | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | Press-Fit Wire Wrap | 9 | Cantilever | Non Specified - Single Edge | Through Hole | Single | -40 C | 105 ░C | Gold | Black | 30 Áin | 0.76 Ám | 9 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 3.18 mm | 0.125 in | 1 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Female | Press-Fit Wire Wrap | 9 | Cantilever | Non Specified - Single Edge | Through Hole | Single | -40 C | 105 ░C | Gold | Black | 30 Áin | 0.76 Ám | 9 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 3.18 mm | 0.125 in | 1 |
