SMA40 Series
Manufacturer: Sanken Electric USA Inc.
Beta
⌘K
TRANS 6NPN DARL 120V 2A 15SIP
| Part | Mounting Type | Current - Collector (Ic) (Max) [Max] | Package / Case | Operating Temperature | Transistor Type | Frequency - Transition | Voltage - Collector Emitter Breakdown (Max) [Max] | Supplier Device Package | Current - Collector Cutoff (Max) [Max] | DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | Power - Max [Max] | Vce Saturation (Max) @ Ib, Ic | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

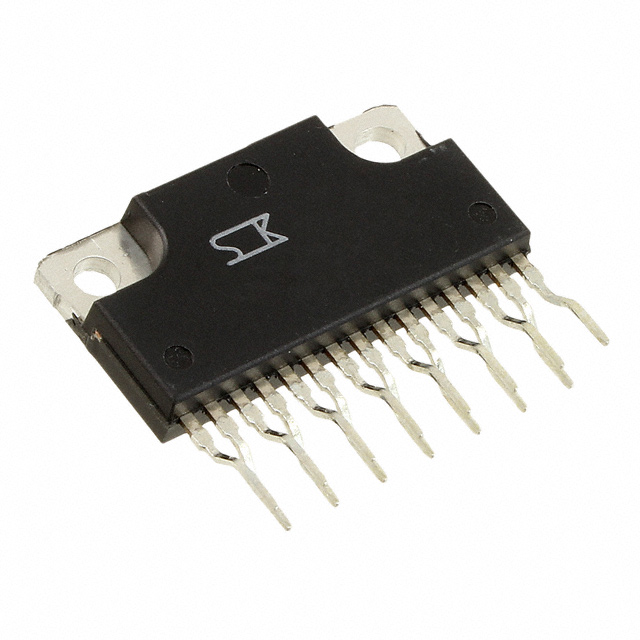

 Sanken Electric USA Inc. | Through Hole | 2 A | 15-SIP Exposed Tab Formed Leads | 150 °C | 6 NPN Darlington | 50 MHz | 120 V | 15-SIP | 10 µA | 2000 hFE | 4 W | 1.5 V | ||

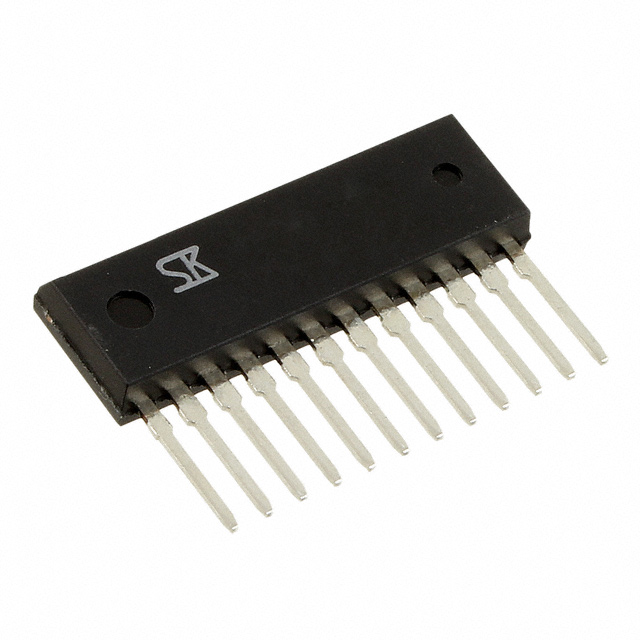

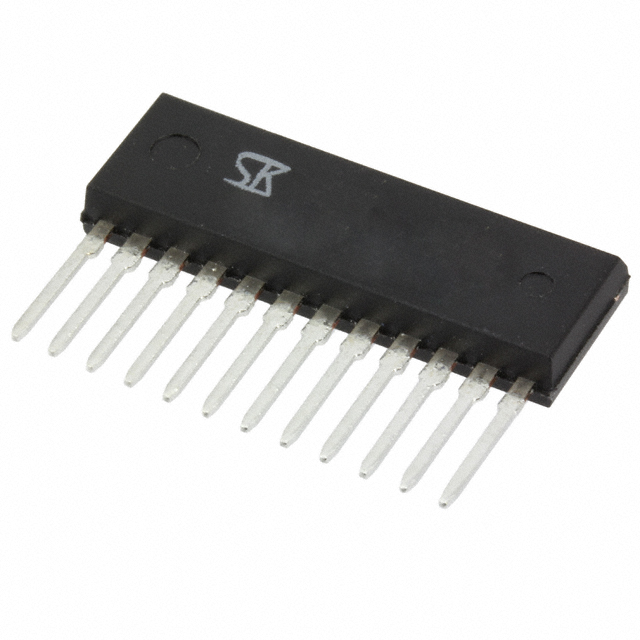

 Sanken Electric USA Inc. | Through Hole | 4 A | 12-SIP | 150 °C | 4 PNP Darlington (Quad) | 60 V | 12-SIP | 10 µA | 2000 | 1.5 V | 4 W 20 W | |||
 Sanken Electric USA Inc. | Through Hole | 3 A | 12-SIP | 150 °C | 4 PNP Darlington (Quad) | 60 V | 12-SIP | 10 µA | 2000 | 4 W | 1.5 V | |||
Sanken Electric USA Inc. | Through Hole | 3 A | 12-SIP | 150 °C | 4 NPN Darlington (Quad) | 40 MHz | 100 V | 12-SIP | 10 µA | 4 W | 1.5 V | 2000 | ||
 Sanken Electric USA Inc. | Through Hole | 3 A | 12-SIP | 150 °C | 4 NPN Darlington (Quad) | 40 MHz | 100 V | 12-SIP | 10 µA | 4 W | 1.5 V | 2000 | ||
Sanken Electric USA Inc. | Through Hole | 2 A | 12-SIP | 150 °C | 4 NPN Darlington (Quad) | 100 V | 12-SIP | 10 µA | 2000 hFE | 4 W | 1.5 V | |||
Sanken Electric USA Inc. | Through Hole | 3 A | 15-SIP Exposed Tab Formed Leads | 150 °C | 6 NPN Darlington | 120 V | 15-SIP | 10 µA | 4 W | 1.5 V | 2000 |
