725-028 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 28POS 0.100

Part	Material - Insulation	Termination Rows	Pitch	Pitch	Contact Finish	Gender	Card Type	Contact Material	Number of Rows	Color	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Read Out	Termination Rows [custom]	Number of Rows [custom]

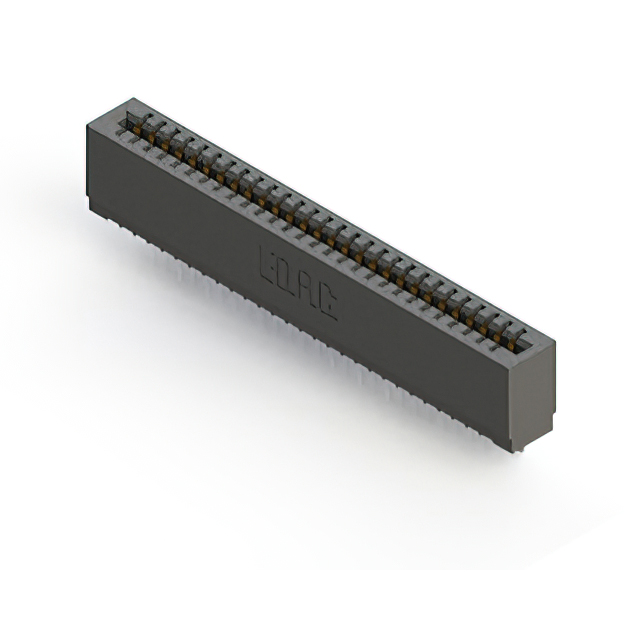

EDAC Inc. 725-028-545-101	Polyester Thermoplastic	1	0.1 "	2.54 mm	Gold	Female	Non Specified - Single Edge	Copper Alloy	1	Black	28	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	-40 C	105 ░C	Cantilever	Through Hole	28	30 Áin	0.76 Ám	Single

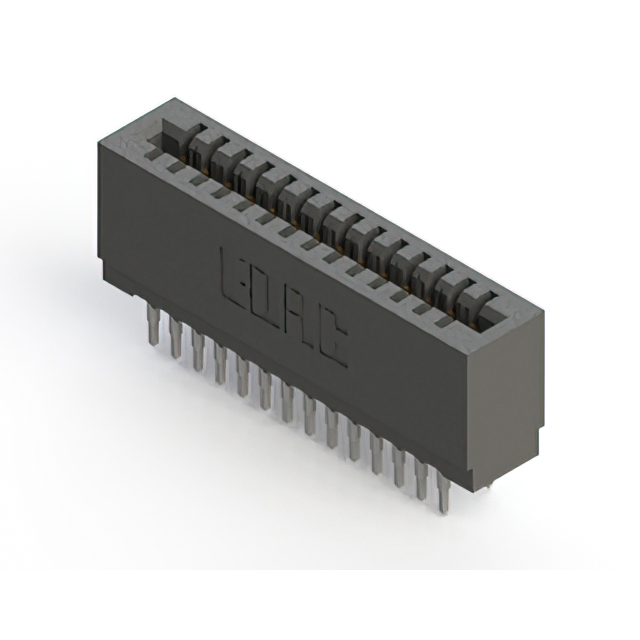

EDAC Inc. 725-028-520-201	Polyester Thermoplastic		0.1 "	2.54 mm	Gold	Female	Non Specified - Dual Edge	Copper Alloy		Black	14	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	-40 C	105 ░C	Cantilever	Through Hole	28	30 Áin	0.76 Ám	Dual	2	2

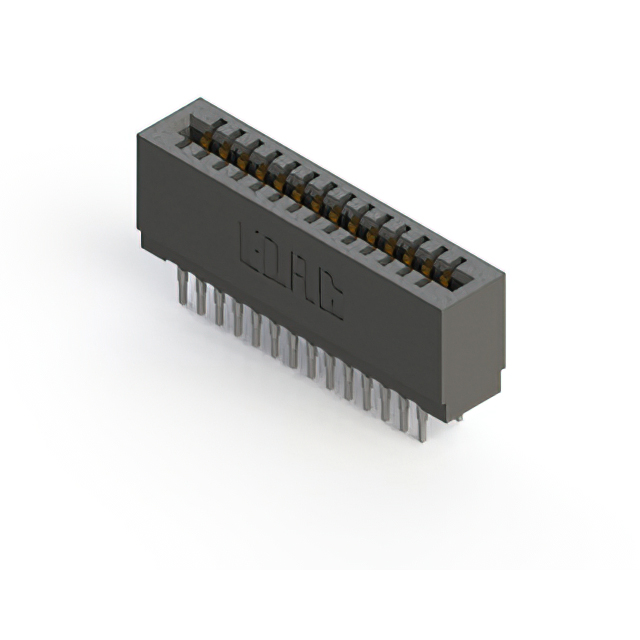

EDAC Inc. 725-028-545-201	Polyester Thermoplastic		0.1 "	2.54 mm	Gold	Female	Non Specified - Dual Edge	Copper Alloy		Black	14	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	-40 C	105 ░C	Cantilever	Through Hole	28	30 Áin	0.76 Ám	Dual	2	2

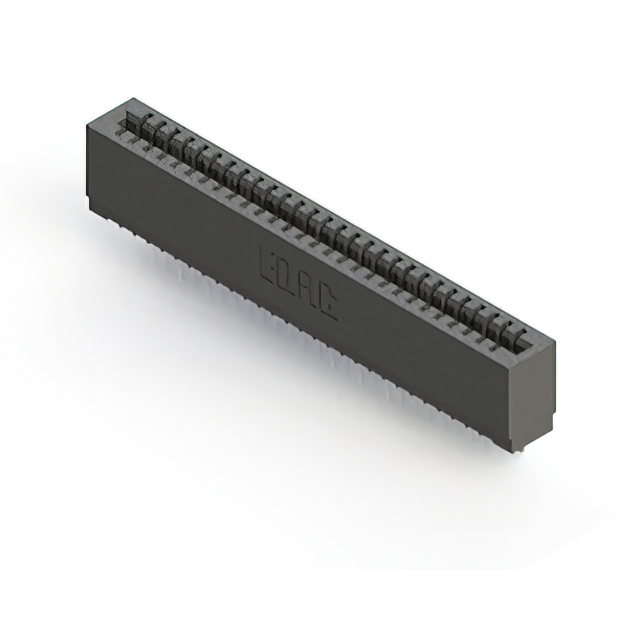

EDAC Inc. 725-028-540-101	Polyester Thermoplastic	1	0.1 "	2.54 mm	Gold	Female	Non Specified - Single Edge	Copper Alloy	1	Black	28	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	-40 C	105 ░C	Cantilever	Through Hole	28	30 Áin	0.76 Ám	Single
EDAC Inc. 725-028-520-101	Polyester Thermoplastic	1	0.1 "	2.54 mm	Gold	Female	Non Specified - Single Edge	Copper Alloy	1	Black	28	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	-40 C	105 ░C	Cantilever	Through Hole	28	30 Áin	0.76 Ám	Single

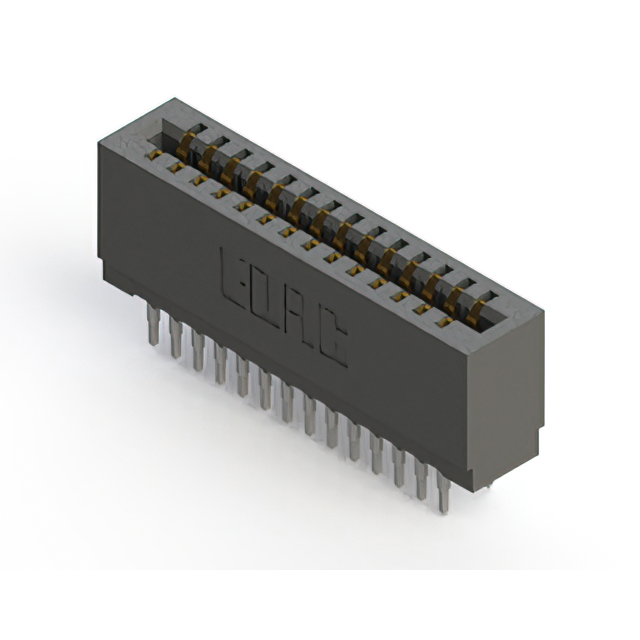

EDAC Inc. 725-028-560-201	Polyester Thermoplastic		0.1 "	2.54 mm	Gold	Female	Non Specified - Dual Edge	Copper Alloy		Black	14	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	-40 C	105 ░C	Cantilever Make Before Break	Through Hole	28	30 Áin	0.76 Ám	Dual	2	2

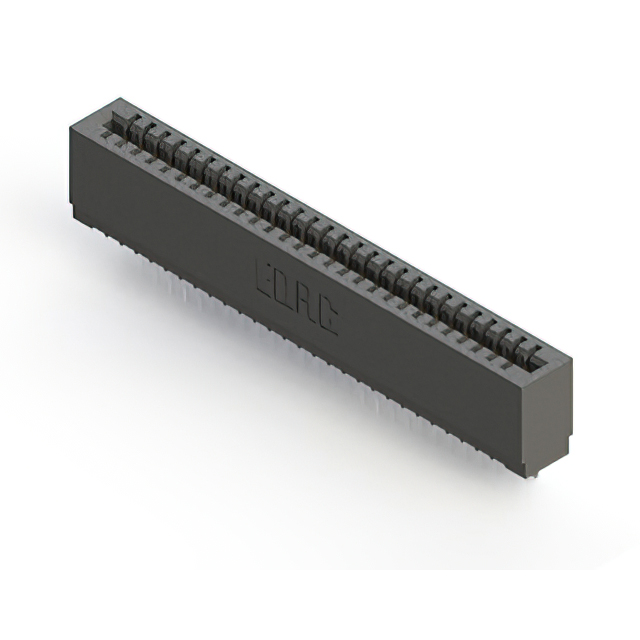

EDAC Inc. 725-028-522-101	Polyester Thermoplastic	1	0.1 "	2.54 mm	Gold	Female	Non Specified - Single Edge	Copper Alloy	1	Black	28	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	-40 C	105 ░C	Cantilever	Through Hole	28	30 Áin	0.76 Ám	Single
EDAC Inc. 725-028-525-101	Polyester Thermoplastic	1	0.1 "	2.54 mm	Gold	Female	Non Specified - Single Edge	Copper Alloy	1	Black	28	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	-40 C	105 ░C	Cantilever	Through Hole	28	30 Áin	0.76 Ám	Single
