RM1E48 Series

Catalog

SSR RELAY SPST-NO 50A 200-550V

Part	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Load Current	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	Output Type	Termination Style	Voltage - Load [Max]	Voltage - Load [Min]
Carlo Gavazzi Inc. RM1E48V50	CCC CE CSA cURus EAC UKCA	-20 ░C	70 °C	50 A	Chassis Mount	10 VDC	0 V	Hockey Puck	AC Zero Cross	Screw Terminal	550 V	200 V

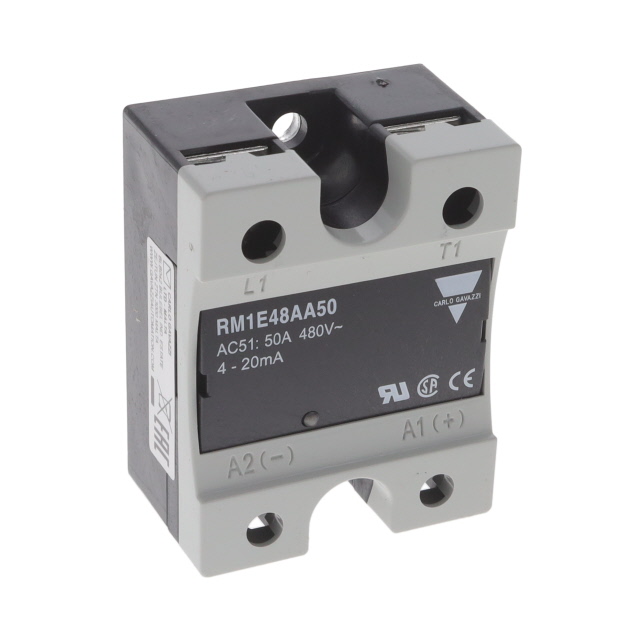

Carlo Gavazzi Inc. RM1E48AA50	CE CSA cURus EAC UKCA	-20 ░C	70 °C	50 A	Chassis Mount	20 mA	4 mA	Hockey Puck	AC Zero Cross	Screw Terminal	460 V	340 V

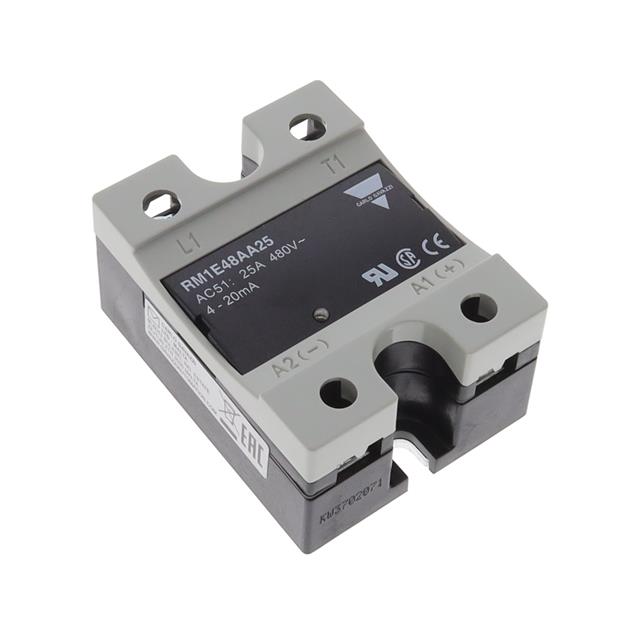

Carlo Gavazzi Inc. RM1E48AA25	CE CSA cURus EAC UKCA	-20 ░C	70 °C	25 A	Chassis Mount	20 mA	4 mA	Hockey Puck	AC Proportional Control	Screw Terminal	550 V	200 V
