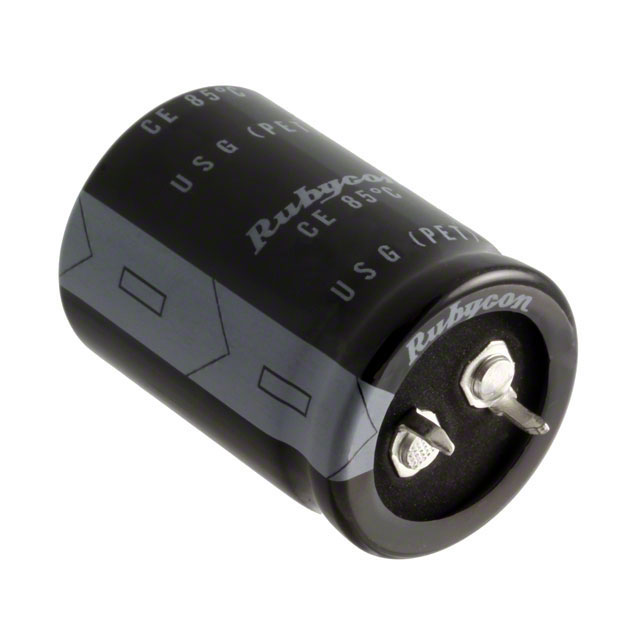

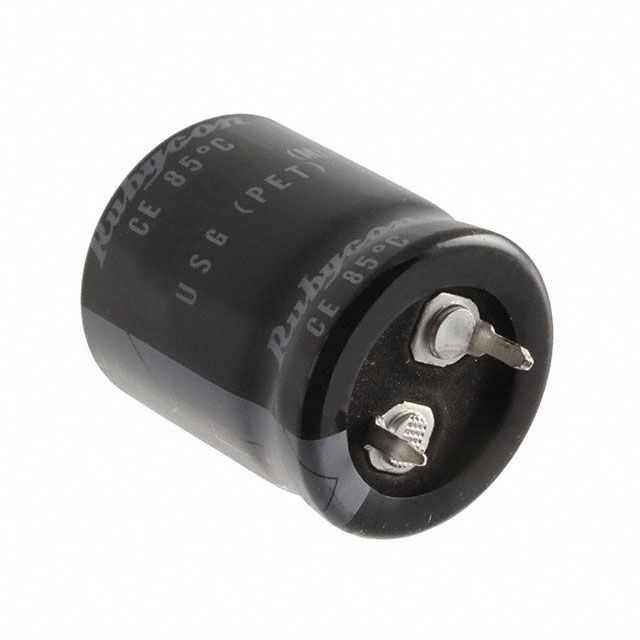

USG Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN GENERAL PURPOSE ELECTROLYTIC CAPACITORS

Part	Polarization	Lifetime @ Temp.	Ripple Current @ High Frequency	Package / Case	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Applications	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Height - Seated (Max)	Size / Dimension
Rubycon 400USG220MEFCSN25X30	Polar	3000 Hrs	2.212 A	Radial Can - Snap-In	400 V	0.984 "	25 mm	0.394 in	10 mm	General Purpose	1.58 A	1.26 in	32 mm	220 µF	20 %	85 °C	-25 °C	Through Hole
Rubycon 450USG150MEFCSN22X35	Polar	3000 Hrs	1.806 A	Radial Can - Snap-In	450 V	0.866 "	22 mm	0.394 in	10 mm	General Purpose	1.29 A	1.457 in		150 µF	20 %	85 °C	-25 °C	Through Hole	37 mm
Rubycon 250USG680MEFCSN25X35	Polar	3000 Hrs	3.75 A	Radial Can - Snap-In	250 V	0.984 "	25 mm	0.394 in	10 mm	General Purpose	2.5 A	1.457 in		680 µF	20 %	85 °C	-40 C	Through Hole	37 mm
Rubycon 250USG560MEFCSN25X30	Polar	3000 Hrs	3.375 A	Radial Can - Snap-In	250 V	0.984 "	25 mm	0.394 in	10 mm	General Purpose	2.25 A	1.26 in	32 mm	560 µF	20 %	85 °C	-40 C	Through Hole
Rubycon 450USG330MEFCSN35X30	Polar	3000 Hrs	2.94 A	Radial Can - Snap-In	450 V	1.378 "	35 mm	0.394 in	10 mm	General Purpose	2.1 A	1.26 in	32 mm	330 µF	20 %	85 °C	-25 °C	Through Hole
Rubycon 420USG220MEFCSN25X35	Polar	3000 Hrs	2.31 A	Radial Can - Snap-In	420 V	0.984 "	25 mm	0.394 in	10 mm	General Purpose	1.65 A	1.457 in		220 µF	20 %	85 °C	-25 °C	Through Hole	37 mm
Rubycon 35USG8200MEFCSN22X40	Polar	3000 Hrs	3.991 A	Radial Can - Snap-In	35 V	0.866 "	22 mm	0.394 in	10 mm	General Purpose	3.47 A	1.654 in	42 mm		20 %	85 °C	-40 C	Through Hole
Rubycon 450USG470MEFCSN35X40	Polar	3000 Hrs	3.724 A	Radial Can - Snap-In	450 V	1.378 "	35 mm	0.394 in	10 mm	General Purpose	2.66 A	1.654 in	42 mm	470 µF	20 %	85 °C	-25 °C	Through Hole
Rubycon 450USG270MEFCSN25X40	Polar	3000 Hrs	2.534 A	Radial Can - Snap-In	450 V	0.984 "	25 mm	0.394 in	10 mm	General Purpose	1.81 A	1.654 in	42 mm	270 µF	20 %	85 °C	-25 °C	Through Hole
Rubycon 400USG330MEFCSN30X30	Polar	3000 Hrs	2.66 A	Radial Can - Snap-In	400 V	1.181 "		0.394 in	10 mm	General Purpose	1.9 A	1.26 in	32 mm	330 µF	20 %	85 °C	-25 °C	Through Hole		30 mm
