1211A Series
Manufacturer: Belden Inc.
Beta
⌘K

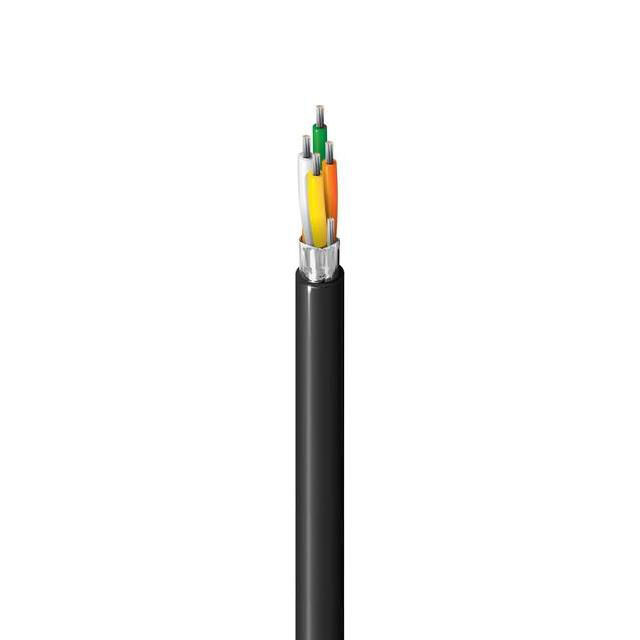

CABLE 4COND 26AWG BLK SHLD
| Part | Shield Material | Shield Coverage | Ratings | Cable Type | Number of Conductors | Jacket Color | Conductor Strand [x] | Conductor Strand [x] | Shield Type | Length | Length | Conductor Material | Conductor Insulation | Wire Gauge | Jacket (Insulation) Material | Features | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | UL Style 2464 | Multi-Conductor | 4 | Black | 34 AWG | 7 | Foil | 304.8 m | 1000 ft | Copper Tinned | Poly-Vinyl Chloride (PVC) | 26 AWG | Poly-Vinyl Chloride (PVC) | Drain Wire | Instrumentation | 0.036 in | 0.914 mm | 80 °C | -20 ░C | 0.195 " | 4.95 mm | 300 VDC |
