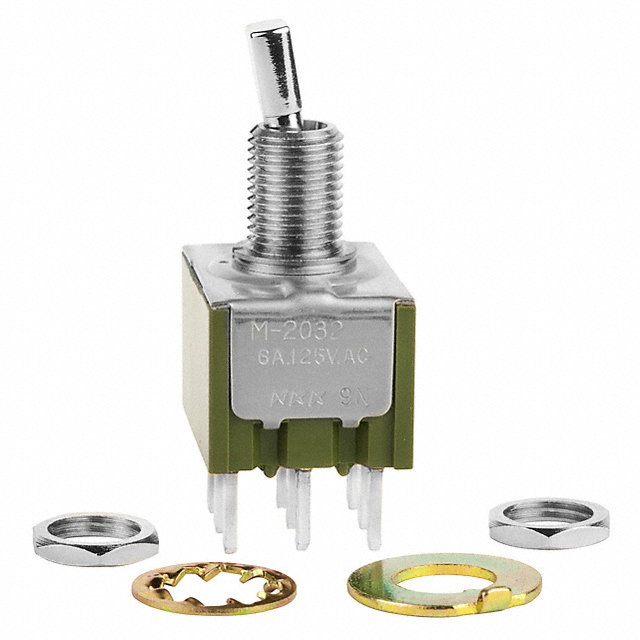

M2032E2 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE 3PDT 6A 125V
| Part | Electrical Life | Actuator Material | Actuator Type | Current Rating (Amps) | Termination Style | Switch Function | Circuit | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Bushing Thread | Voltage Rating - DC | Mounting Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | Flatted | 4 A 6 A | Quick Connect - 0.062" (1.5mm) | On-On | 3PDT | 6.5 mm | 6.5 mm | 1/4-40 | 30 V | Panel Mount | Epoxy Sealed Terminals | 85 °C | -30 ░C | Non-Illuminated | 125 V |
