Coupled Inductors 2-PHASE 400nH 10A
Coupled Inductors 2-PHASE 400nH 10A
| Part | DC Resistance (DCR) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Inductance Frequency - Test | Height - Seated (Max) [Max] | Height - Seated (Max) | Current Rating (Amps) | Shielding | Package / Case | Inductance | Tolerance | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Material - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

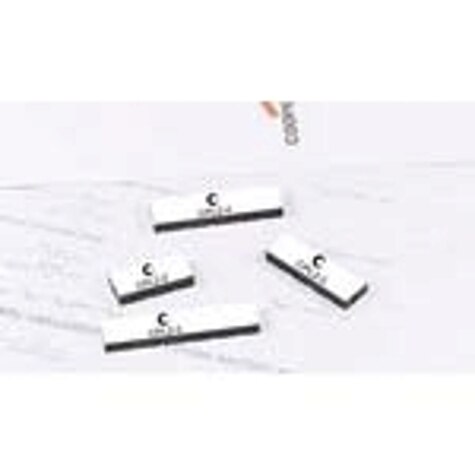

 Eaton - Electronics Division | 0.28 mOhm | 0.335 in | 8.5 mm | 18 mm | 0.709 in | 1 MHz | 0.189 " | 4.8 mm | 80 A | Unshielded | Nonstandard | 50 nH | 20 % | Surface Mount | 125 °C | -40 C | Ferrite |
