302-S20 Series

Catalog

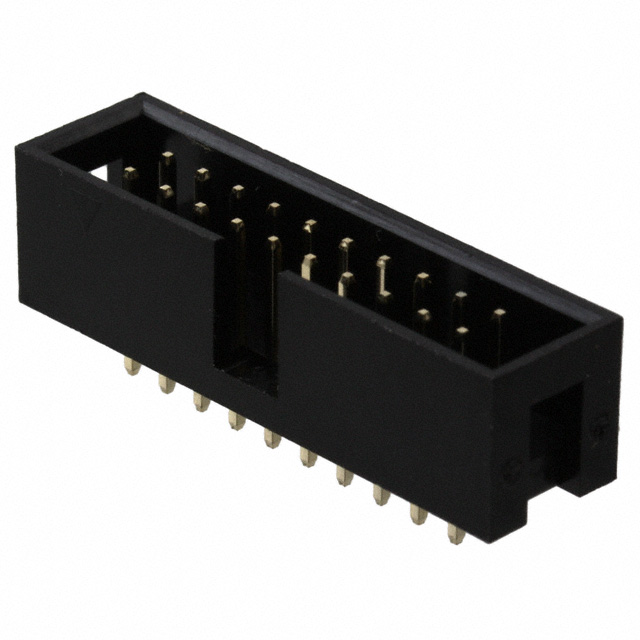

CONN HEADER VERT 20POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Material	Termination	Shrouding	Connector Type	Fastening Type	Contact Shape	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish - Post	Voltage Rating	Insulation Material	Style	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Insulation Color	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Number of Positions Loaded	Features	Contact Type	Number of Rows [custom]	Contact Length - Post [x]	Contact Length - Post [x]
On Shore Technology Inc. 302-S201	1.25 µin	0.032 µm	Gold	Brass	Solder	Shrouded - 4 Wall	Header	Push-Pull	Square	0.1 "	2.54 mm	Through Hole	Gold	250 V	Polyester Glass Filled	Board to Cable/Wire	3 A	-40 C	105 ░C	UL94 V-0	Black	0.358 "	9.1 mm	Flash	0.1 in	2.54 mm	20	All	Keying Slot	Male Pin	2	0.122 in	3.1 mm
