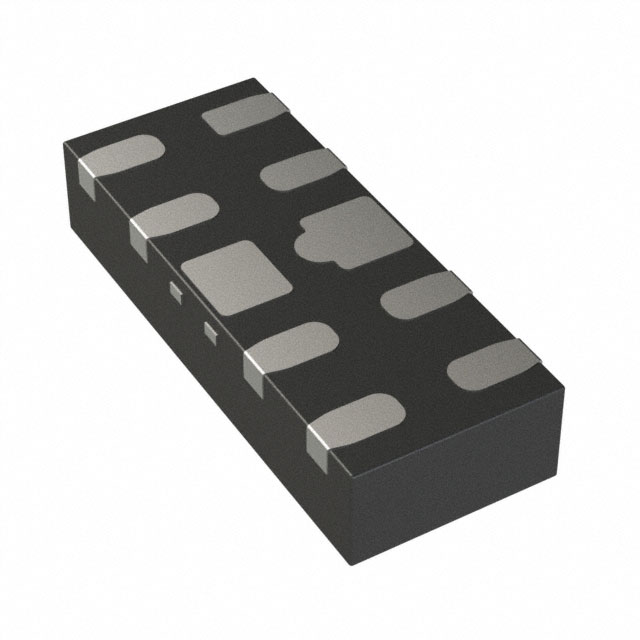

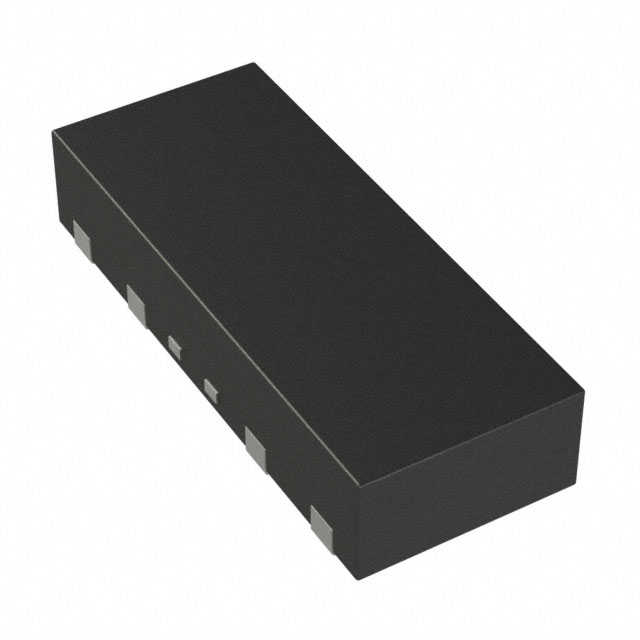

SP3420-04UTG Series

3.3V 6A .32pF 12kV DFN2510-10L TVS Array

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

3.3V 6A .32pF 12kV DFN2510-10L TVS Array

Part	Qualification	Mounting Type	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Power Line Protection	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]	Supplier Device Package	Type	Package / Case	Voltage - Reverse Standoff (Typ)
Littelfuse/Commercial Vehicle Products SP3420-04UTG	AEC-Q101	Surface Mount	General Purpose	6 V		-40 °C	125 °C	Automotive	0.32 pF	6 A	6.5 V	4	10-µDFN (2.5x1.0)	Zener	10-UFDFN	3.3 V

Catalog

3.3V 6A .32pF 12kV DFN2510-10L TVS Array

Key Features

• ESD, IEC 61000-4-2, ±12kV contact, ±15 kV air

• IEC 61000-4-4 EFT protection: 40 A (5/50 ns)

• Lightning, IEC 61000- 4-5 2nd edition, 6A (tP=8/20μs)

• Low capacitance of 0.32pF@1.5V (TYP)

• Low leakage current of 0.02μA (TYP) at 3.3V

• Low operating and clamping voltage

• AEC-Q101 qualified

• Lead-free, halogen-free, and RoHS compliant

• Moisture Sensitivity Level (MSL -1)

Description

The SP3420-04UTG includes four channel ultra low capacitance and high-level ESD protection diodes to protect high-speed data rate such as USB 3.1, DisplayPort, Thunderbolt, and e-SATA. The typical capacitance of 0.32pF helps ensure signal integrity and this robust device can safely absorb repetitive ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation safely dissipate 6A of 8/20μs surge current (IEC 61000-4-5 2nd edition).
