DC3332207 Series
Manufacturer: SAB North America
Beta
⌘K

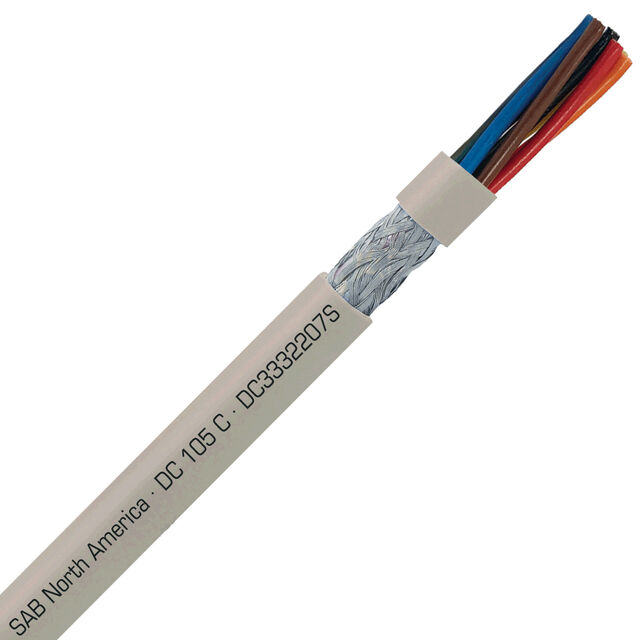

CABLE 7COND 22AWG GRY SHLD 1=1FT
| Part | Conductor Insulation | Jacket Color | Features | Shield Material | Length | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Conductor Material | Number of Conductors | Cable Type | Ratings | Jacket (Insulation) Material | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SAB North America | Poly-Vinyl Chloride (PVC) Poly-Vinyl Chloride (PVC) Semi-Rigid | Gray Tan | Drain Wire Flame Retardant Oil Resistant | Aluminum Copper Tinned | Enter Number of Feet in Order Quantity | 30 AWG | 7 | 105 ░C | -25 °C | 300 VDC | 6.76 mm | 0.266 in | Braid Foil | Copper Tinned | 7 | Multi-Conductor | UL Style CMG UL Style PLTC | Poly-Vinyl Chloride (PVC) | 22 AWG |
