ASPI-FS Series

Catalog

INDUCTOR POWER SHIELDED WIREWOUND 10UH 20% 100KHZ FERRITE 0.77A 0.325OHM DCR 1212 T/R

Part	Inductance Frequency - Test	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max)	Type	Mounting Type	Material - Core	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Shielding	Package / Case	Height - Seated (Max) [Max]	DC Resistance (DCR)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Abracon LLC ASPI-0315FS-100M-T2	100 kHz	20 %	3 mm	0.118 in	3 mm	0.118 "	770 mA	41 MHz	0.059 "	1.5 mm	Drum Core Wirewound	Surface Mount	Ferrite	325 mOhm	720 mA	120 °C	-25 °C	10 µH	Shielded	Nonstandard

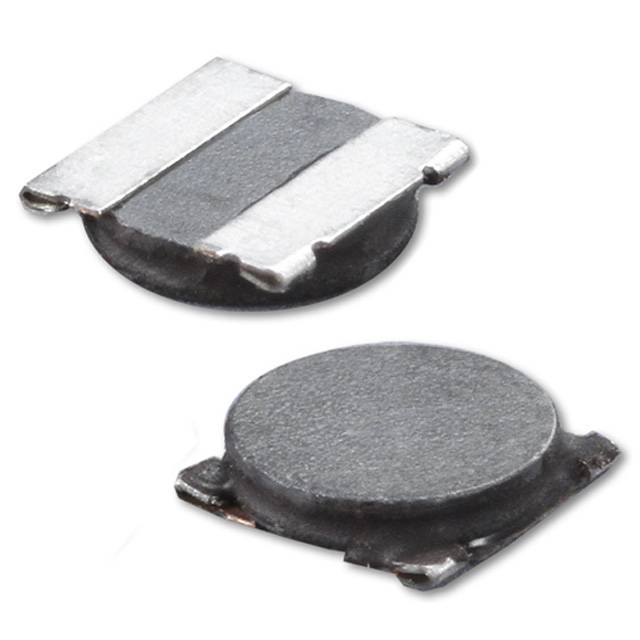

Abracon LLC ASPI-0410FS-2R2M-T	100 kHz	20 %	4 mm	0.157 "	4 mm	0.157 in	1.15 A		0.039 in		Drum Core Wirewound	Surface Mount	Ferrite			85 °C	-40 C	2.2 µH	Shielded	Nonstandard	1 mm	150 mOhm

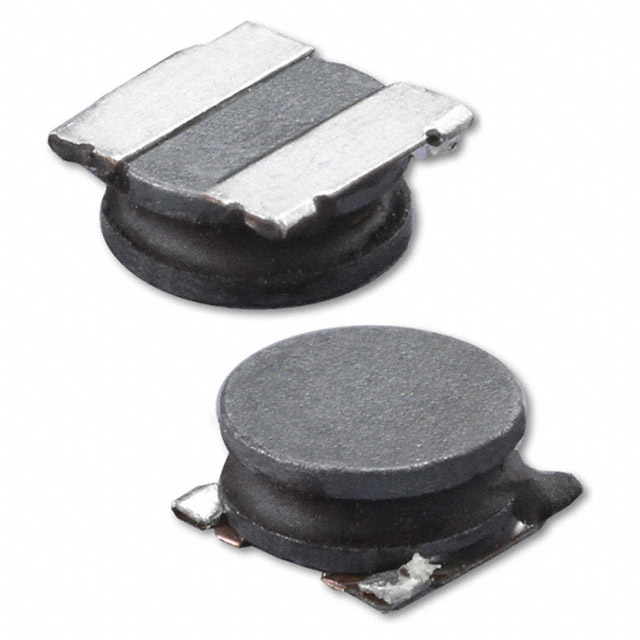

Abracon LLC ASPI-0418FS-4R7M-T3	100 kHz	20 %	4 mm	0.157 "	4 mm	0.157 in	1.7 A	60 MHz	0.071 in		Drum Core Wirewound	Surface Mount	Ferrite	84 mOhm	2 A	120 °C	-25 °C	4.7 ÁH	Shielded	Nonstandard	1.8 mm

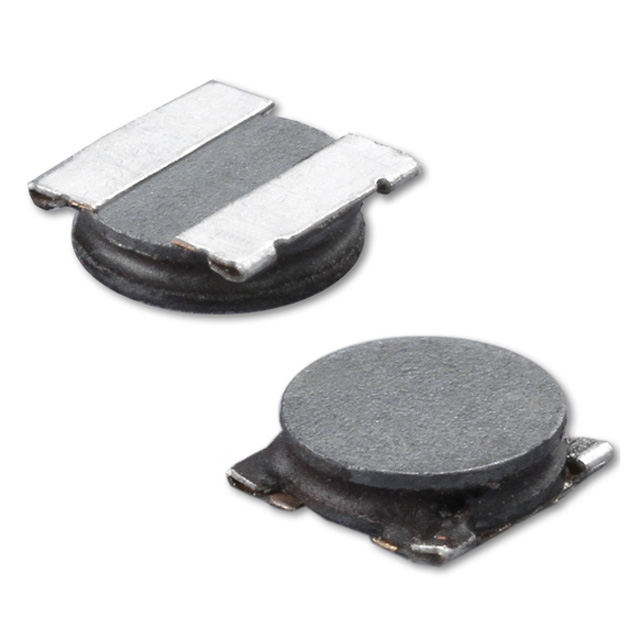

Abracon LLC ASPI-0412FS-2R2M-T4	100 kHz	20 %	4 mm	0.157 "	4 mm	0.157 in	1.32 A				Drum Core Wirewound	Surface Mount	Nickel Zinc Ferrite (NiZn)	104 mOhm	1.76 A	125 °C	-25 °C	2.2 µH	Shielded	Nonstandard			1.2 mm	0.047 "
Abracon LLC ASPI-0310FS-1R5N-T2	100 kHz	30 %	3 mm	0.118 in	3 mm	0.118 "	2 A		0.039 in		Drum Core Wirewound	Surface Mount	Nickel Zinc Ferrite (NiZn)		1.65 A	120 °C	-25 °C	1.5 µH	Shielded	Nonstandard	1 mm	70 mOhm
Abracon LLC ASPI-0310FS-2R2M-T2	100 kHz	20 %	3 mm	0.118 in	3 mm	0.118 "	1.9 A		0.039 in		Drum Core Wirewound	Surface Mount	Nickel Zinc Ferrite (NiZn)		1.45 A	120 °C	-25 °C	2.2 µH	Shielded	Nonstandard	1 mm	80 mOhm
Abracon LLC ASPI-0410FS-100M-T35	100 kHz	20 %	4 mm	0.157 "	4 mm	0.157 in	0.56 A		0.039 in		Drum Core Wirewound	Surface Mount	Ferrite	380 mOhm	620 mA	85 °C	-40 C	10 µH	Shielded	Nonstandard	1 mm

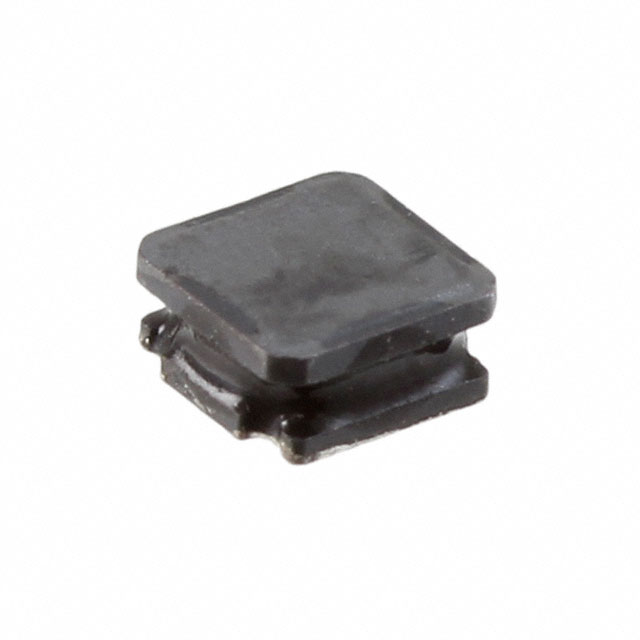

Abracon LLC ASPI-0312FS-330M-T2	100 kHz	20 %	3 mm	0.118 in	3 mm	0.118 "	0.33 A				Drum Core Wirewound	Surface Mount	Ferrite		310 mA	120 °C	-25 °C	33 µH	Shielded	Nonstandard		1.03 Ohm	1.2 mm	0.047 "

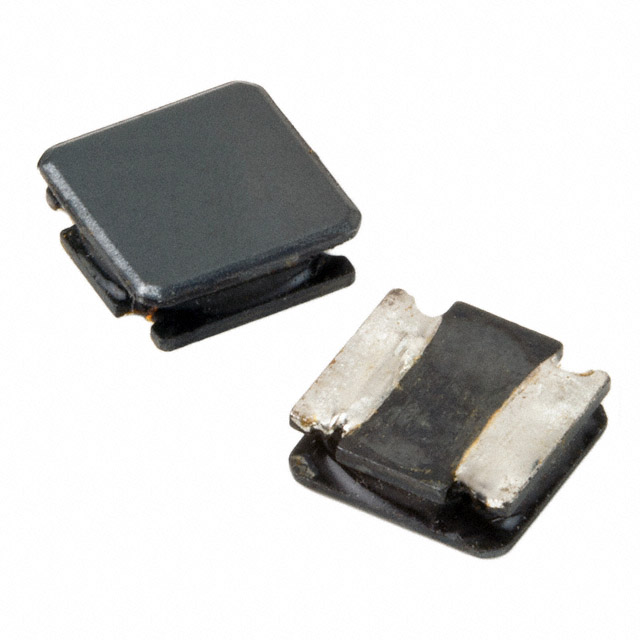

Abracon LLC ASPI-0615FS-1R5N-T2	100 kHz	30 %	6 mm	0.236 "	6 mm	0.236 in	3.6 A				Drum Core Wirewound	Surface Mount	Ferrite	22.1 mOhm	4 A	120 °C	-25 °C	1.5 µH	Shielded	Nonstandard			2.2 mm	0.087 in
Abracon LLC ASPI-0615FS-3R3M-T2	100 kHz	20 %	6 mm	0.236 "	6 mm	0.236 in	2.8 A				Drum Core Wirewound	Surface Mount	Ferrite		2.8 A	120 °C	-25 °C	3.3 µH	Shielded	Nonstandard		30 mOhm	2.2 mm	0.087 in
