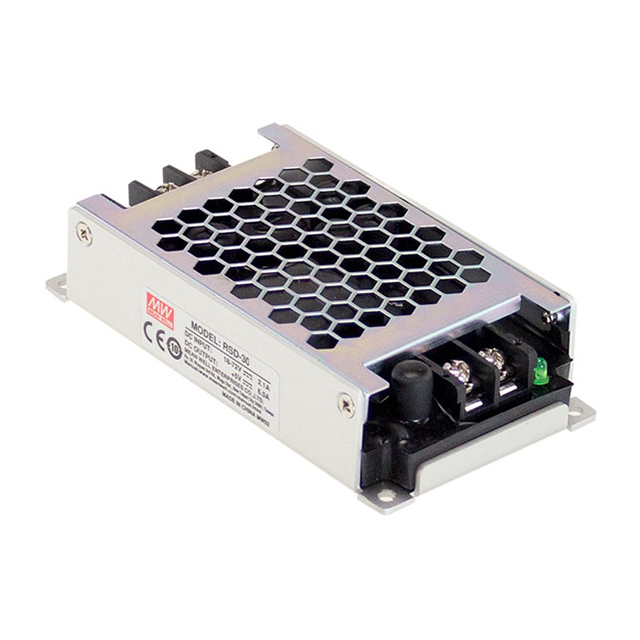

RSD-30 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC/DC CONVERTER 12V 30W
| Part | Voltage - Output 1 | Approval Agency | Voltage - Input (Max) [Max] | Efficiency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | Number of Outputs | Voltage - Input (Min) [Min] | Voltage - Isolation | Current - Output (Max) [Max] | Applications | Power (Watts) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 12 V | CE | 160 V | 89 % | 2.36 " | 0.98 in | 25 mm | 4.45 in | 60 mm | 113 mm | Enclosed | 1 | 40 V | 4000 V | 2.5 A | ITE (Commercial) Railway | 30 Watts | Chassis Mount |
 MEAN WELL USA Inc. | 24 V | CE | 72 V | 91 % | 2.36 " | 0.98 in | 25 mm | 4.45 in | 60 mm | 113 mm | Enclosed | 1 | 18 V | 4000 V | 1.25 A | ITE (Commercial) Railway | 30 Watts | Chassis Mount |
MEAN WELL USA Inc. | 5 V | CE | 160 V | 89 % | 2.36 " | 0.98 in | 25 mm | 4.45 in | 60 mm | 113 mm | Enclosed | 1 | 40 V | 4000 V | 6 A | ITE (Commercial) Railway | 30 Watts | Chassis Mount |
MEAN WELL USA Inc. | 3.3 V | CE | 160 V | 87 % | 2.36 " | 0.98 in | 25 mm | 4.45 in | 60 mm | 113 mm | Enclosed | 1 | 40 V | 4000 V | 6 A | ITE (Commercial) Railway | 20 W | Chassis Mount |
MEAN WELL USA Inc. | 5 V | CE | 36 V | 85 % | 2.36 " | 0.98 in | 25 mm | 4.45 in | 60 mm | 113 mm | Enclosed | 1 | 9 V | 4000 V | 6 A | ITE (Commercial) Railway | 30 Watts | Chassis Mount |
