2SA1776 Series

Catalog

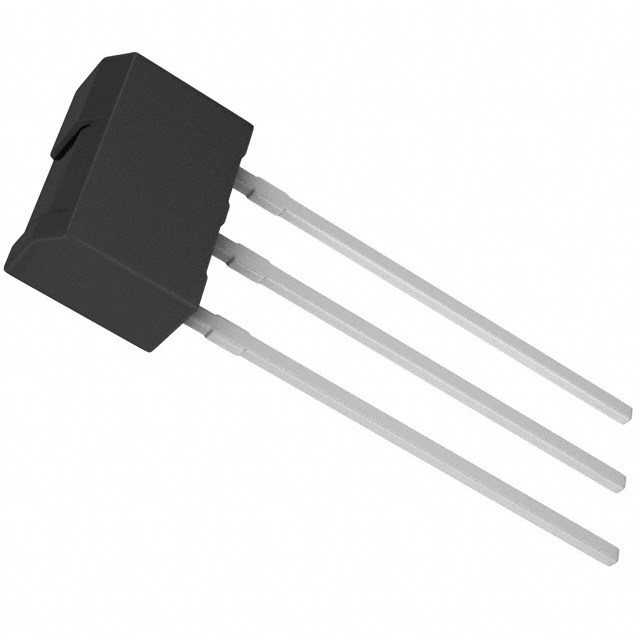

TRANS PNP 400V 0.5A ATV

Part	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Operating Temperature	Frequency - Transition	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Transistor Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type
Rohm Semiconductor 2SA1776TV2Q	500 mA	1 µA	ATV	150 °C	12 MHz	1 W	1 V	PNP	400 V	3-SIP	120	Through Hole
Rohm Semiconductor 2SA1776TV2P	500 mA	1 µA	ATV	150 °C	12 MHz	1 W	1 V	PNP	400 V	3-SIP	82 hFE	Through Hole
