45120 Series

Catalog

CABLE ASSY 20 POS 12" PINOUT-H

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Shielding	Pitch - Connector	Pitch - Connector	Length	Length	Number of Rows [custom]	Cable Termination	Features	Pitch - Cable	Pitch - Cable	Contact Finish	Connector Type	Mounting Type	Row Spacing	Row Spacing	Wire Type	Pitch	Pitch	Contact Type	Wire Gauge	Length
3M Electronic Specialty 45120-010030-7700/20-H-12	20	30 Áin	0.76 Ám	Unshielded	0.05 "	1.27 mm	1 ft	304.8 mm	2	IDC	Polarizing Key	0.64 mm	0.025 in	Gold	Socket to Socket
3M Electronic Specialty 45120-010030	20	30 Áin	0.76 Ám						2	IDC	Feed Through Polarizing Key			Gold	Receptacle	Free Hanging (In-Line)	1.27 mm	0.05 "	Ribbon Cable	0.05 in	1.27 mm	Female Socket	30 AWG
3M Electronic Specialty 45120-010030-7700/20-H-24	20	30 Áin	0.76 Ám	Unshielded	0.05 "	1.27 mm	2 ft	609.6 mm	2	IDC	Polarizing Key	0.64 mm	0.025 in	Gold	Socket to Socket

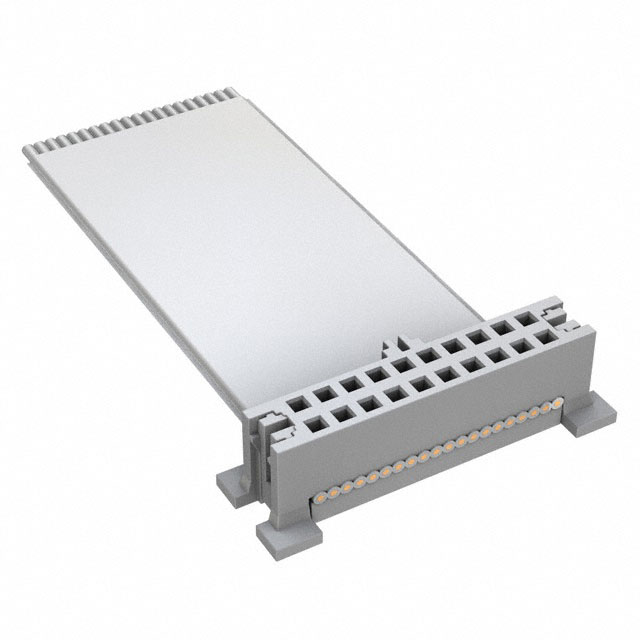

3M Electronic Specialty 45120-010030-7700/20-B-06	20	30 Áin	0.76 Ám	Unshielded	0.05 "	1.27 mm	0.5 '	152.4 mm	2	IDC	Polarizing Key	0.64 mm	0.025 in	Gold	Socket to Cable									6 "
3M Electronic Specialty 45120-010030-7700/20-G-24	20	30 Áin	0.76 Ám	Unshielded	0.05 "	1.27 mm	2 ft	609.6 mm	2	IDC	Polarizing Key	0.64 mm	0.025 in	Gold	Socket to Socket
3M Electronic Specialty 45120-010030-7700/20-G-12	20	30 Áin	0.76 Ám	Unshielded	0.05 "	1.27 mm	1 ft	304.8 mm	2	IDC	Polarizing Key	0.64 mm	0.025 in	Gold	Socket to Socket
3M Electronic Specialty 45120-010030-3749/20-D-6	20	30 Áin	0.76 Ám	Unshielded	0.05 "	1.27 mm	0.5 '	152.4 mm	2	IDC	Polarizing Key	0.64 mm	0.025 in	Gold	Socket to Socket									6 "

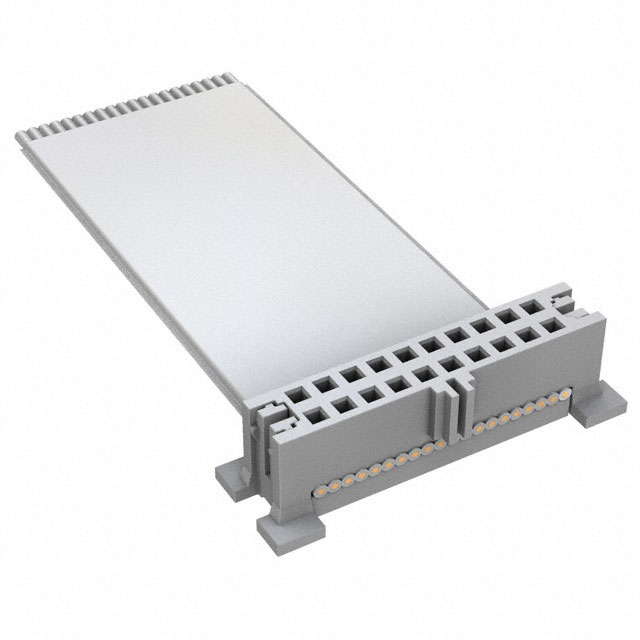

3M Electronic Specialty 45120-010030-7700/20-A-12	20	30 Áin	0.76 Ám	Unshielded	0.05 "	1.27 mm	1 ft	304.8 mm	2	IDC	Polarizing Key	0.64 mm	0.025 in	Gold	Socket to Cable
3M Electronic Specialty 45120-010030-7700/20-A-06	20	30 Áin	0.76 Ám	Unshielded	0.05 "	1.27 mm	0.5 '	152.4 mm	2	IDC	Polarizing Key	0.64 mm	0.025 in	Gold	Socket to Cable									6 "
3M Electronic Specialty 45120-010030-7700/20-D-06	20	30 Áin	0.76 Ám	Unshielded	0.05 "	1.27 mm	0.5 '	152.4 mm	2	IDC	Polarizing Key	0.64 mm	0.025 in	Gold	Socket to Socket Reversed									6 "
