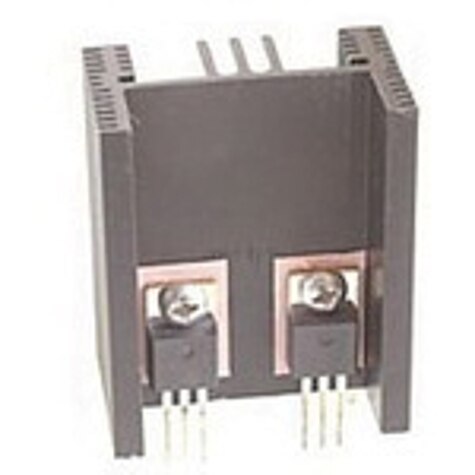

Heat Sinks Heat Sink for MULTIWATT, Vertical, 6.8 C/W, 2.89mm Hole, 25.4mm, Solder Pins
Heat Sinks Heat Sink for MULTIWATT, Vertical, 6.8 C/W, 2.89mm Hole, 25.4mm, Solder Pins
Heat Sinks Heat Sink for MULTIWATT, Vertical, 6.8 C/W, 2.89mm Hole, 25.4mm, Solder Pins
| Part | Material Finish | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Length | Length | Package Cooled | Shape [custom] | Shape [custom] | Attachment Method | Thermal Resistance @ Natural | Type | Material | Width [y] | Width [y] | Fin Height | Fin Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Boyd Laconia, LLC | Black Anodized | 4 W | 2 °C/W | 1.5 in | 38.1 mm | TO-220 | Rectangular | Fins | Bolt On PC Pin | 4.4 °C/W | Board Level Vertical | Aluminum | 1.65 in | 41.91 mm | 1 in | 25.4 mm |
 Boyd Laconia, LLC | Black Anodized | 6 W | 3.5 °C/W | 1 in | 25.4 mm | TO-218 TO-220 | Rectangular | Fins | Bolt On PC Pin | 6.8 °C/W | Board Level Vertical | Aluminum | 1.65 in | 41.91 mm | 1 in | 25.4 mm |
