VO2631 Series

Catalog

OPTOISO 5.3KV 2CH OPEN DRN 8SMD

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Type	Output Type	Inputs - Side 1/Side 2 [custom]	Common Mode Transient Immunity (Min) [Min]	Data Rate	Supplier Device Package	Current - Output / Channel	Voltage - Isolation [custom]	Mounting Type	Propagation Delay tpLH / tpHL (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Number of Channels	Voltage - Forward (Vf) (Typ)	Package / Case
Vishay Semiconductor Opto Division VO2631-X007T	5.5 V	4.5 V	DC	Open Drain	2	5 kV/µs	10 Mbps	8-SMD	50 mA	5300 Vrms	Surface Mount	100 ns	23 ns	7 ns	-40 C	100 °C	15 mA	2	1.42 V
Vishay Semiconductor Opto Division VO2631-X006	5.5 V	4.5 V	DC	Open Drain	2	5 kV/µs	10 Mbps	8-DIP	50 mA	5300 Vrms	Through Hole	100 ns	23 ns	7 ns	-40 C	100 °C	15 mA	2	1.42 V	8-DIP (0.400" 10.16mm)
Vishay Semiconductor Opto Division VO2631-X017T	5.5 V	4.5 V	DC	Open Drain	2	5 kV/µs	10 Mbps	8-SMD	50 mA	5300 Vrms	Surface Mount	100 ns	23 ns	7 ns	-40 C	100 °C	15 mA	2	1.42 V

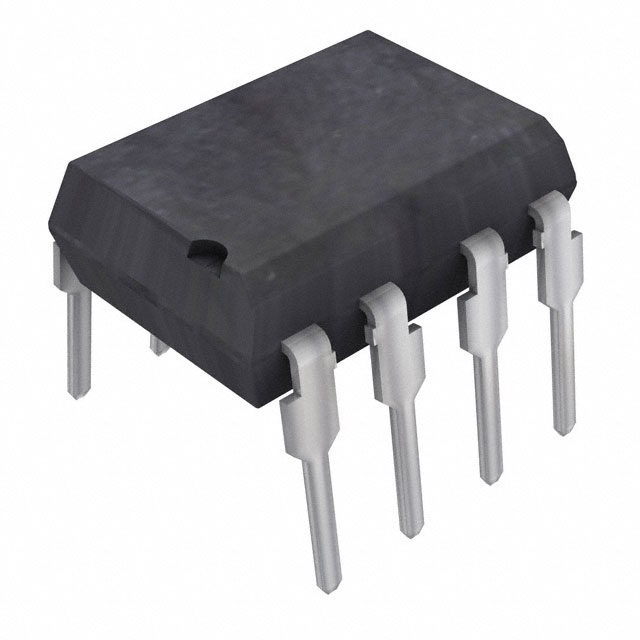

Vishay Semiconductor Opto Division VO2631	5.5 V	4.5 V	DC	Open Drain	2	5 kV/µs	10 Mbps	8-DIP	50 mA	5300 Vrms	Through Hole	100 ns	23 ns	7 ns	-40 C	100 °C	15 mA	2	1.42 V	8-DIP (0.300" 7.62mm)
