HE13 / HE14 Series

Catalog

HEADERS & WIRE HOUSINGS PLUG HE13 IDC 180 3P AWG 26-24

Part	Wire Gauge [Min]	Wire Gauge [Max]	Connector Type	Pitch	Pitch	Wire Type	Mounting Type	Contact Finish	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Rows	Contact Type	Fastening Type	Features	Number of Positions	Wire Gauge	Number of Rows [custom]	Row Spacing	Row Spacing

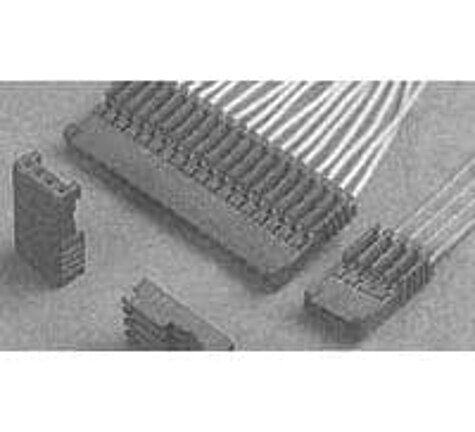

TE Connectivity AMP Connectors 281784-3	24 AWG	26 AWG	Plug	0.1 "	2.54 mm	Discrete	Free Hanging (In-Line)	Gold	IDC	0.38 µm	15 µin	Blue	1	Female Socket	Detent Lock
TE Connectivity AMP Connectors 144271-6			Plug	0.1 "	2.54 mm	Discrete	Free Hanging (In-Line) Right Angle	Tin	IDC				1	Female Socket	Detent Lock	Feed Through	6	26 AWG
TE Connectivity AMP Connectors 281711-8			Plug	0.1 "	2.54 mm	Discrete	Free Hanging (In-Line) Right Angle	Tin	IDC			Blue	1	Female Socket	Detent Lock	Feed Through	8	26 AWG
TE Connectivity AMP Connectors 1-281793-0			Receptacle	0.1 "	2.54 mm	Discrete	Free Hanging (In-Line)	Gold	IDC	0.38 µm	15 µin	Blue		Female Socket	Detent Lock		20		2	2.54 mm	0.1 "
TE Connectivity AMP Connectors 281711-4			Plug	0.1 "	2.54 mm	Discrete	Free Hanging (In-Line) Right Angle	Tin	IDC			Blue	1	Female Socket	Detent Lock	Feed Through	4	26 AWG
