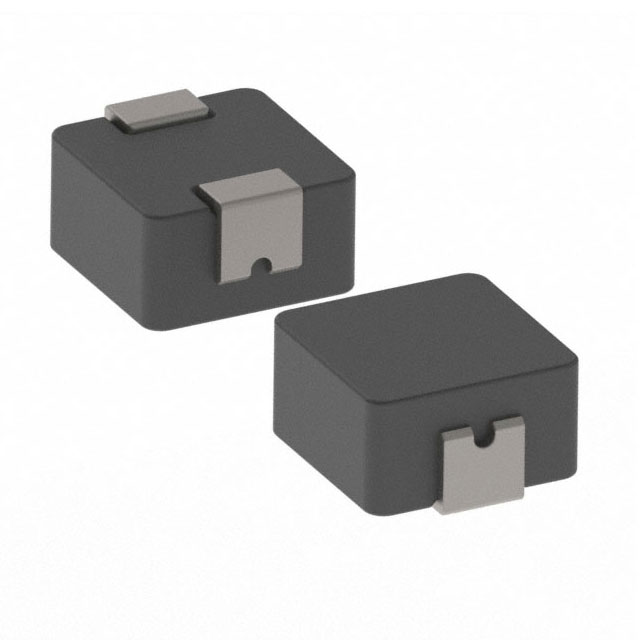

PM4340 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD 15UH 2.1A 3MM 20% AEC-Q200
| Part | Inductance Frequency - Test | Current - Saturation (Isat) | Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Tolerance | Shielding | Inductance | DC Resistance (DCR) [Max] | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 100 kHz | 2.6 A | Molded | 0.118 " | 3 mm | 20 % | Shielded | 15 µH | 190 mOhm | Surface Mount | Nonstandard | 155 C | -55 C | 2.1 A | 6 mm | 5.4 mm | 0.236 in | 0.213 " | AEC-Q200 |
 Pulse Electronics | 100 kHz | 11 A | Molded | 0.118 " | 3 mm | 20 % | Shielded | 1.2 µH | 16 mOhm | Surface Mount | Nonstandard | 155 C | -55 C | 6.5 A | 6 mm | 5.4 mm | 0.236 in | 0.213 " | AEC-Q200 |

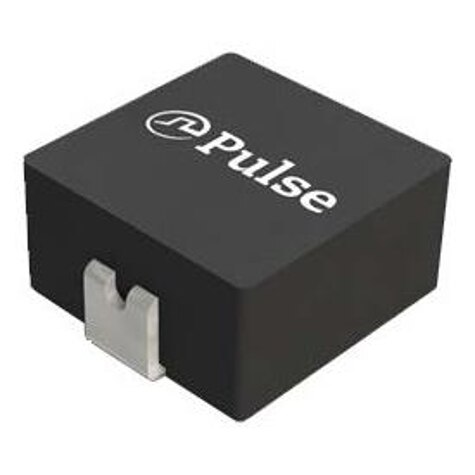

 Pulse Electronics | 100 kHz | 9 A | Molded | 0.118 " | 3 mm | 20 % | Shielded | 2.2 µH | 35 mOhm | Surface Mount | Nonstandard | 155 C | -55 C | 5.5 Amps | 6 mm | 5.4 mm | 0.236 in | 0.213 " | AEC-Q200 |
