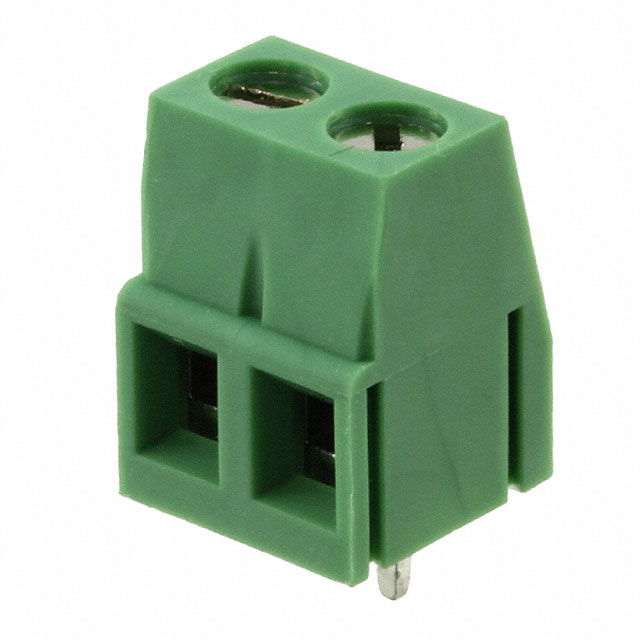

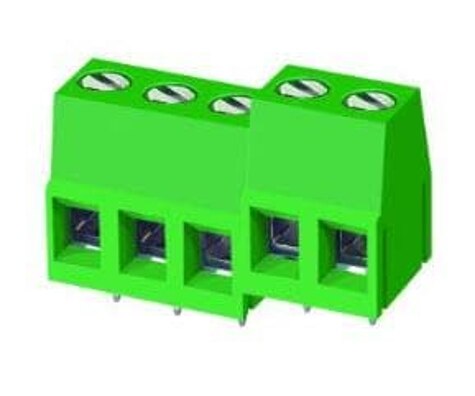

Fixed Terminal Blocks EURO MB312-508M2
Fixed Terminal Blocks EURO MB312-508M2
| Part | Housing Material | Screw Thread | Contact Material - Plating | Torque - Screw | Torque - Screw | Operating Temperature [Min] | Operating Temperature [Max] | Screw Material - Plating | Wire Gauge [Min] | Wire Gauge [Max] | Features | Wire Termination | Positions Per Level | Current | Mounting Type | Voltage | Number of Levels | Mating Orientation | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | ||||||||||||||||||||
 Eaton - Electronics Division | Thermoplastic | M3 | Brass - Tin Plated | 7 Lb-In | 0.79 Nm | -40 C | 105 ░C | Steel - Zinc Plated | 12 AWG | 26 AWG | Interlocking (Side) | Screw - Rising Cage Clamp | 2 | 16 A | Through Hole | 300 VDC | 1 | Horizontal with Board | 5.08 mm | 0.2 in |
