RP400 Series

Catalog

LINE FILTER 480VAC 65A CHASSIS

...

Part	Voltage - Rated AC (Phase to Ground/Neutral)	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]	Filter Type	Current	Termination Style	Voltage - Rated AC	Mounting Type	Applications
Astrodyne TDI RP400-65-100-S	3.5 kV	100 °C	-25 °C	CE cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz	Three Phase (Wye)	65 A	Threaded Post (M6)	480 V	Chassis Mount	General Purpose
Astrodyne TDI RP400-150-1000-S	3.5 kV	100 °C	-25 °C	CE cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz	Three Phase (Wye)	150 A	Threaded Post	480 V	Chassis Mount	General Purpose
Astrodyne TDI RP400-150-2000-S	3.5 kV	100 °C	-25 °C	CE cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz	Three Phase (Wye)	150 A	Threaded Post	480 V	Chassis Mount	General Purpose
Astrodyne TDI RP400-45-0-S	3.5 kV	100 °C	-25 °C	CE cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz	Three Phase (Wye)	45 A	Threaded Post (M5)	480 V	Chassis Mount	General Purpose
Astrodyne TDI RP400-100-1000-W	3.5 kV	100 °C	-25 °C	CE cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz	Three Phase (Wye)	100 A	Wire Leads	480 V	Chassis Mount	General Purpose

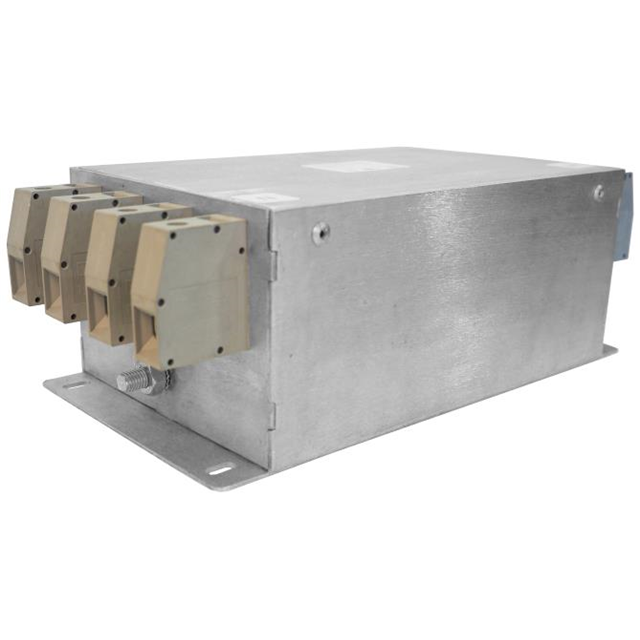

Astrodyne TDI RP400-30-0-C	3.5 kV	100 °C	-25 °C	CE cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz	Three Phase (Wye)	30 A	Terminal Block	480 V	Chassis Mount	General Purpose
Astrodyne TDI RP400-65-0-W	3.5 kV	100 °C	-25 °C	CE cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz	Three Phase (Wye)	65 A	Wire Leads	480 V	Chassis Mount	General Purpose
Astrodyne TDI RP400-100-10-C	3.5 kV	100 °C	-25 °C	CE cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz	Three Phase (Wye)	100 A	Terminal Block	480 V	Chassis Mount	General Purpose
Astrodyne TDI RP400-150-0-S	3.5 kV	100 °C	-25 °C	CE cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz	Three Phase (Wye)	150 A	Threaded Post	480 V	Chassis Mount	General Purpose
Astrodyne TDI RP400-36-0-C	3.5 kV	100 °C	-25 °C	CE cURus ENEC SEMKO	Single Stage	60 Hz	50 Hz	Three Phase (Wye)	36 A	Terminal Block	480 V	Chassis Mount	General Purpose
