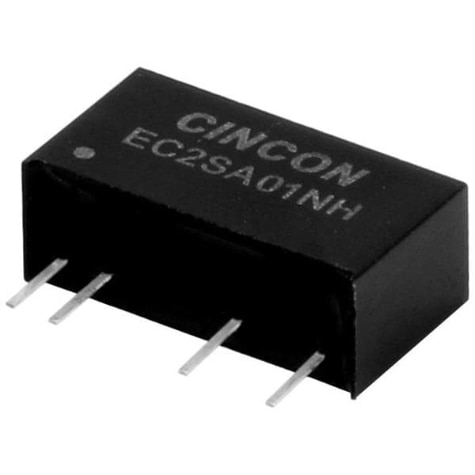

EC2SANH Series
Isolated DC/DC Converters - Through Hole 2W 24VDC in 5VDC out 200mA
Manufacturer: Cincon Electronics Co. LTD
Catalog
Isolated DC/DC Converters - Through Hole 2W 24VDC in 5VDC out 200mA
Beta
⌘K
Isolated DC/DC Converters - Through Hole 2W 24VDC in 5VDC out 200mA
Isolated DC/DC Converters - Through Hole 2W 24VDC in 5VDC out 200mA
Isolated DC/DC Converters - Through Hole 2W 24VDC in 5VDC out 200mA
| Part | Approval Agency | Type | Voltage - Output 2 | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Number of Outputs | Applications | Voltage - Input (Min) [Min] | Mounting Type | Voltage - Output 1 | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Power (Watts) | Current - Output (Max) [Max] | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | CE | Isolated Module | -5 V | 7-SIP Module 5 Leads | 105 C | -40 °C | 84 % | 2 | ITE (Commercial) | 10.8 V | Through Hole | 5 V | 3000 V | 0.4 " | 0.28 in | 10.2 mm | 7.2 mm | 19.6 mm | 0.77 in | 13.2 V | 2 W | |||
 Cincon Electronics Co. LTD | CE | Isolated Module | 7-SIP Module 4 Leads | 105 C | -40 °C | 84 % | 1 | ITE (Commercial) | 4.5 V | Through Hole | 12 V | 3000 V | 0.4 " | 0.28 in | 10.2 mm | 7.2 mm | 19.6 mm | 0.77 in | 5.5 V | 2 W | 167 mA | |||
 Cincon Electronics Co. LTD | CE | Isolated Module | 7-SIP Module 4 Leads | 105 C | -40 °C | 1 | ITE (Commercial) | 10.8 V | Through Hole | 5 V | 3000 V | 0.4 " | 0.28 in | 10.2 mm | 7.2 mm | 19.6 mm | 0.77 in | 13.2 V | 2 W | 400 mA | ||||
Cincon Electronics Co. LTD | CE | Isolated Module | -5 V | 7-SIP Module 5 Leads | 105 C | -40 °C | 83 % | 2 | ITE (Commercial) | 4.5 V | Through Hole | 5 V | 3000 V | 0.4 " | 0.28 in | 10.2 mm | 7.2 mm | 19.6 mm | 0.77 in | 5.5 V | 2 W | |||
Cincon Electronics Co. LTD | CE | Isolated Module | -12 V | 7-SIP Module 5 Leads | 105 C | -40 °C | 87 % | 2 | ITE (Commercial) | 21.6 V | Through Hole | 12 V | 3000 V | 0.4 " | 0.28 in | 10.2 mm | 7.2 mm | 19.6 mm | 0.77 in | 26.4 V | 2 W | 83 mA | 83 mA | |
 Cincon Electronics Co. LTD | CE | Isolated Module | -15 V | 7-SIP Module 5 Leads | 105 C | -40 °C | 87 % | 2 | ITE (Commercial) | 4.5 V | Through Hole | 15 V | 3000 V | 0.4 " | 0.28 in | 10.2 mm | 7.2 mm | 19.6 mm | 0.77 in | 5.5 V | 2 W | 67 mA | 67 mA | |
Cincon Electronics Co. LTD | CE | Isolated Module | 7-SIP Module 4 Leads | 105 C | -40 °C | 85 % | 1 | ITE (Commercial) | 4.5 V | Through Hole | 15 V | 3000 V | 0.4 " | 0.28 in | 10.2 mm | 7.2 mm | 19.6 mm | 0.77 in | 5.5 V | 2 W | 134 mA | |||
Cincon Electronics Co. LTD | CE | Isolated Module | -15 V | 7-SIP Module 5 Leads | 105 C | -40 °C | 88 % | 2 | ITE (Commercial) | 21.6 V | Through Hole | 15 V | 3000 V | 0.4 " | 0.28 in | 10.2 mm | 7.2 mm | 19.6 mm | 0.77 in | 26.4 V | 2 W | 67 mA | 67 mA | |
 Cincon Electronics Co. LTD | CE | Isolated Module | 7-SIP Module 4 Leads | 105 C | -40 °C | 87 % | 1 | ITE (Commercial) | 21.6 V | Through Hole | 12 V | 3000 V | 0.4 " | 0.28 in | 10.2 mm | 7.2 mm | 19.6 mm | 0.77 in | 26.4 V | 2 W | 167 mA |
